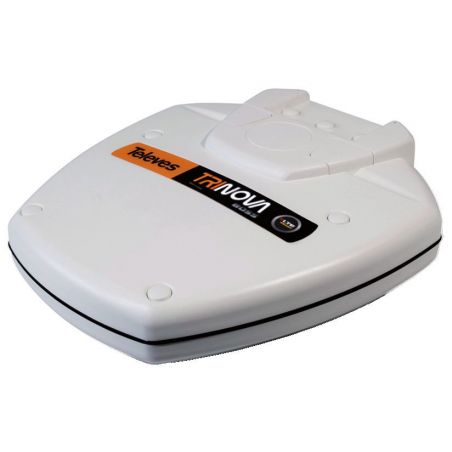

Televes TRINOVA BOSS UHF Terrestrial Antenna G25dBi
It’s a 3-in-1 reception system with three different independent antennas to cover 360º. The TriNova has been designed to get the best signal using a 3-antenna configuration avoiding the need of positioning the aerial; getting the best possible signal from each of the three independent feeds.
€267.02
Tax included
Reference
televes-144740
Brand
Televes
Televes TRINOVA BOSS UHF Terrestrial Antenna G25dBi
€267.02
You might also like
The TriNova has been designed to get the best signal using a 3-antenna configuration avoiding the need of positioning the aerial; getting the best possible signal from each of the three independent feeds.
It’s a 3-in-1 reception system: three different independent antennas to cover 360º.
- 3 outputs (“F” connector)
- Receiver remote-powered
- Dimmensions: 72 x 290 x 325 mm
- Triple antenna, with 3 independent outputs, optimized to be used with the TRIMOTION (Ref. 512501) receiver.
- It incorporates amplification with BOSS-Tech independent for each aerial.
- Reception in UHF band (470-790 MHz).
- The antenna can be powered from any of the 3 outputs.
- High rejection against interferences, especially against the LTE/4G band.
Package content
- TriNova antenna
- 2 Mounts
Specs
| Reference | 144740 | |
| Working band | MHz | 470 - 790 (CH21 - CH60) |
| Polarisation | Horizontal | |
| Gain | dB | 25 |
| Noise figure | dB | < 3,5 |
| Input voltage | Vdc | 10...12 |
| Maximum input current | mA | 110 |
| Weight | g | 1200 |
| Dimensions | mm | 320 x 290 x 107 |
| Protection index | IP | 53 |
| Wind load | N | 74,88 (@ 130 Km/h) 102,96 (@ 150 Km/h) |
