Promax Ranger Neo + Field Meter
The RANGERNeo + is a universal field strength meter that covers a comprehensive mix of broadcast standards around the globe. The latest developments in broadcast technology such as DVB-T2/C2/S2...
€4,477.00
Tax included
Reference
promax-ranger-neo-+
Brand
Promax

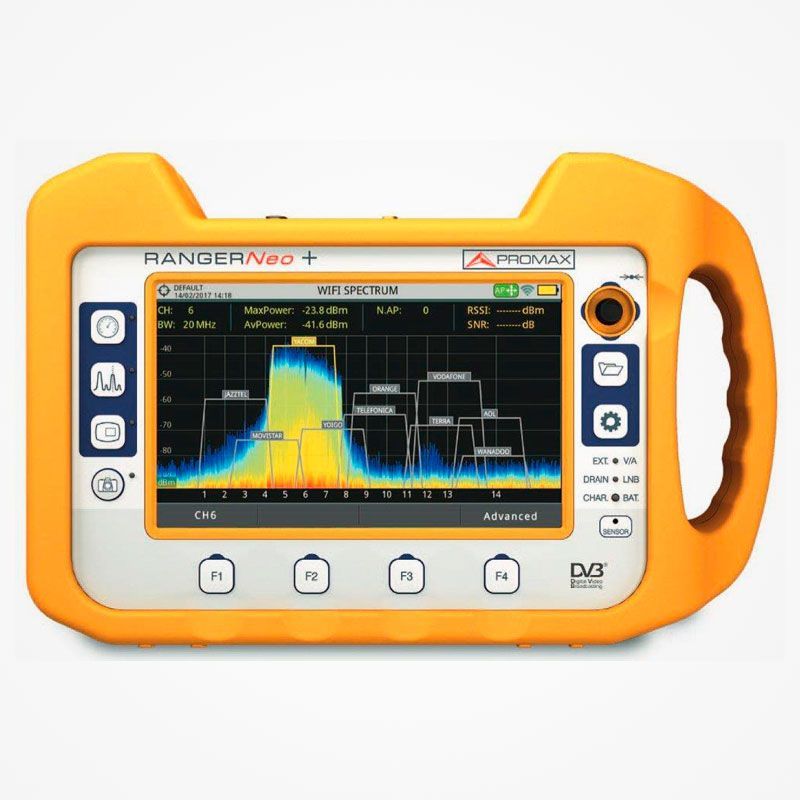

Promax Ranger Neo + Field Meter
€4,477.00
You might also like
Plan Renove of 300€ with this product. Contact us for more information.
The RANGERNeo + is a universal field strength meter that covers a comprehensive mix of broadcast standards around the globe. The latest developments in broadcast technology such as DVB-T2/C2/S2 (DVB-T/C/S also included) with MPEG-2 as well as MPEG-4 video are managed effortlessly within the product.
One of the most noticeable and stunning features on the new RANGERNeo + product is the ultra fast spectrum analyser. As soon as you use the analyser you will experience this outstanding feature as one of the major changes we have adopted in the new product allowing you to sweep faster and more accurately.
The introduction of the latest technology within the product allows you to display multiple screens either overlapped together or in a 7” split screen format.
Available options
- OP-002-DAB +: DAB / DAB + measurements for RANGER Neo + / 2
- OP-002-GPS: GPS for drive test measurements for RANGER Neo + / 2
- OP-00X-WL: Wi-Fi 5 GHz and LTE 2.6 GHz for RANGER Neo + / 2/3/4.
- OP-00X-PS: Optical measurement for FTTH, Cable TV and Satellite TV for RANGER Neo + / 2/3 / 4. Includes 5GHz Wi-Fi and 2.6 GHz LTE ..
- OP-00X-19: Rack mount for RANGER Neo + / 2/3/4
- OP-00X-AF: High precision frequency measurement for RANGER Neo + / 2/3/4.
Video
WEBSERVER
Demonstration of the webserver available in some of the RANGER Neo series field meters that allow you, for example, to view the spectrum in real time, access measurements or view the video of the selected channel directly in your Internet browser. From anywhere in the world and without installing additional software.
Funciones OTT
Demonstration of OTT functions of field meters RANGER Neo. OTT (Over-The-Top TV) is the system used by many on-demand television providers over the Internet. With the OTT analyzer integrated in the field meters you can perform different checks and identify possible problems that result in poor reception quality.
Specs
| OPERATION MODES | Hybrid operation: 7” touch screen or conventional buttons |
| DIGITAL STANDARDS | - DVB-T, DVB-T2, DVB-T2 lite - DVB-C, DVB-C2 - DVB-S, DVB-S2, DVB-S2 multistream - DSS, ACM/VCM |
| VIDEO CODECS | MPEG-2, MPEG-4 H.264, HEVC H.265 |
| AUDIO CODECS | MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus |
| INPUTS AND OUTPUTS | - Universal RF connector 75 Ω - HDMI output - IP input for remote control - Analogue Video/Audio input - 2xUSB for data tranferring and GPS module |
| FUNCTIONS | - Merogram and Spectrogram - Constellation diagram - LTE - Dynamic echoes analysis - StealthID (instant identification of tuning parameters) - PLS (Physical Layer Scrambling) - Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold - FM RDS radio measurements and decoding - Screenshots and Datalogger for measurement reports - Wideband LNB - WiFi 2.4 GHz - LTE 1.8 GHz - OTT - Service Recording - DVB-S2 multistream - Signal monitoring - Field strength - Task planner - Web server - MER by Carrier - Beacon-Flyaways SNG and VSAT |
| RESOLUTION BANDWIDTHS | 100, 200 kHz 1 MHz |
| OPTIONS | - Optical power meter (OP-00X-PS) + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz - WiFi 5 GHz + LTE 2.6 GHz (OP-00X-WL) - DAB, DAB+ (OP-002-DAB+) - GPS Coverage Analysis (OP-002-GPS) - For rack assembly (OP-00X-19) - High precision frequency measurement (OP-00X-AF) |
| PC CONNECTION (via ethernet interface) | - NetUpdate 4 (free software) - Free and automatic firmware updates - Remote control (webserver) - User customised channel plans - Measurement reports and screenshots |
