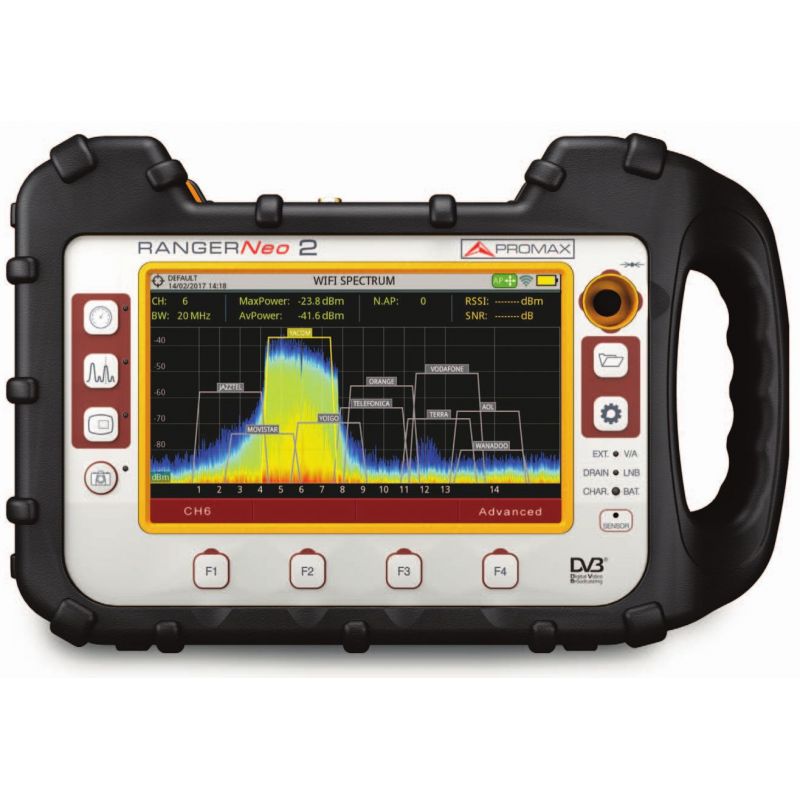

Promax Ranger Neo 2 Field Meter
RANGERNeo 2 features all RANGERNeo + functions (including all second-generation DVB standards) plus IPTV input, Common Interface (CAM) for encrypted channels, HDMI interface and TS-ASI input/output.
€6,776.00
Tax included
Reference
promax-ranger-neo-2
Brand
Promax
You might also like
Plan Renove of 600€ with this product. Contact us for more information.
The RANGERNeo 2 features a new 7” touch screen with excellent brightness and superior image sharpness that can also be used wearing gloves.
The hybrid operation of the RANGERNeo 2 allows the equipment to be fully operated using both the touch panel and the conventional keyboard.
RANGERNeo 2 features all RANGERNeo + functions (including all second-generation DVB standards) plus IPTV input, Common Interface (CAM) for encrypted channels, HDMI interface and TS-ASI input/output.
Optical measurements and 3 GHz band extension can also be included as an option, thus converting the RANGERNeo 2 in an all-purpose field strength meter.
Available options
- OP-002-DAB +: DAB / DAB + measurements for RANGER Neo + / 2
- OP-002-GPS: GPS for drive test measurements for RANGER Neo + / 2
- OP-00X-DAB2: Advanced DAB / DAB + measurement option for RANGER Neo 2/3/4.
- OP-00X-WL: Wi-Fi 5 GHz and LTE 2.6 GHz for RANGER Neo + / 2/3/4.
- OP-00X-PS: Optical measurement for FTTH, Cable TV and Satellite TV for RANGER Neo + / 2/3 / 4. Includes 5GHz Wi-Fi and 2.6 GHz LTE ..
- OP-00X-19: Rack mount for RANGER Neo + / 2/3/4
- OP-00X-AF: High precision frequency measurement for RANGER Neo + / 2/3/4 ..
Video
WEBSERVER
Demonstration of the webserver available in some of the RANGER Neo series field meters that allow you, for example, to view the spectrum in real time, access measurements or view the video of the selected channel directly in your Internet browser. From anywhere in the world and without installing additional software.
Funciones OTT
Demonstration of OTT functions of field meters RANGER Neo. OTT (Over-The-Top TV) is the system used by many on-demand television providers over the Internet. With the OTT analyzer integrated in the field meters you can perform different checks and identify possible problems that result in poor reception quality.
Specs
| SPECIFICATIONS RANGERNeo 2 | |
| OPERATION MODES | Hybrid operation: 7” touch screen or conventional buttons |
| DIGITAL STANDARDS | - DVB-T, DVB-T2, DVB-T2 lite - DVB-T2-MI (Gateway to modulator) - DVB-C, DVB-C2 - DVB-S, DVB-S2, DVB-S2 multistream - DSS, ACM/VCM - TS |
| VIDEO CODECS | MPEG-2, MPEG-4 H.264, HEVC H.265 |
| AUDIO CODECS | MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus |
| INPUTS AND OUTPUTS | - Universal RF connector 75 Ω - ASI-TS input and output - IPTV input UDP/RTP RJ45 Ethernet 1 Gbps - HDMI output - IP input for remote control - Analogue Video/Audio input - Common Interface module slot - 2xUSB for data tranferring and GPS module |
| FUNCTIONS | - Merogram and Spectrogram - Constellation diagram - LTE - Dynamic echoes analysis - StealthID (instant identification of tuning parameters) - PLS (Physical Layer Scrambling) - Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold - FM RDS radio measurements and decoding - Screenshots and Datalogger for measurement reports - Wideband LNB - WiFi 2.4 GHz - LTE 1.8 GHz - OTT - Service Recording - DVB-S2 multistream - Signal monitoring - Field strength - Task planner - TS Recording - TS Analysis - Web server - MER by Carrier - IPTV multicast - Shoulder Attenuation - Beacon-Flyaways SNG and VSAT |
| RESOLUTION BANDWIDTHS | 2, 10, 20, 40, 100, 200 kHz 1 MHz |
| OPTIONS | - DAB, DAB + (OP-002-DAB +) - Advanced DAB / DAB + Analyzer (OP-00X-DAB2) - GPS coverage analysis (OP-002-GPS) - Advanced FM Analyzer (OP-00X-AF) - Rack Mount 19 ”4U: 482 (W) x 178 (H) x 205 (D) mm (OP-00X-19) - OPM + Optical-RF Converter + WiFi 5 GHz + LTE 2.6 GHz + Ent. RF 6 GHz (OP-00X-PS) - WiFi 5 GHz + LTE 2.6 GHz + RF Input 6 GHz (OP-00X-WL) |
| PC CONNECTION (via ethernet interface) | - NetUpdate 4 (free software) - Free and automatic firmware updates - Remote control (webserver) - User customised channel plans - Measurement reports and screenshots |
