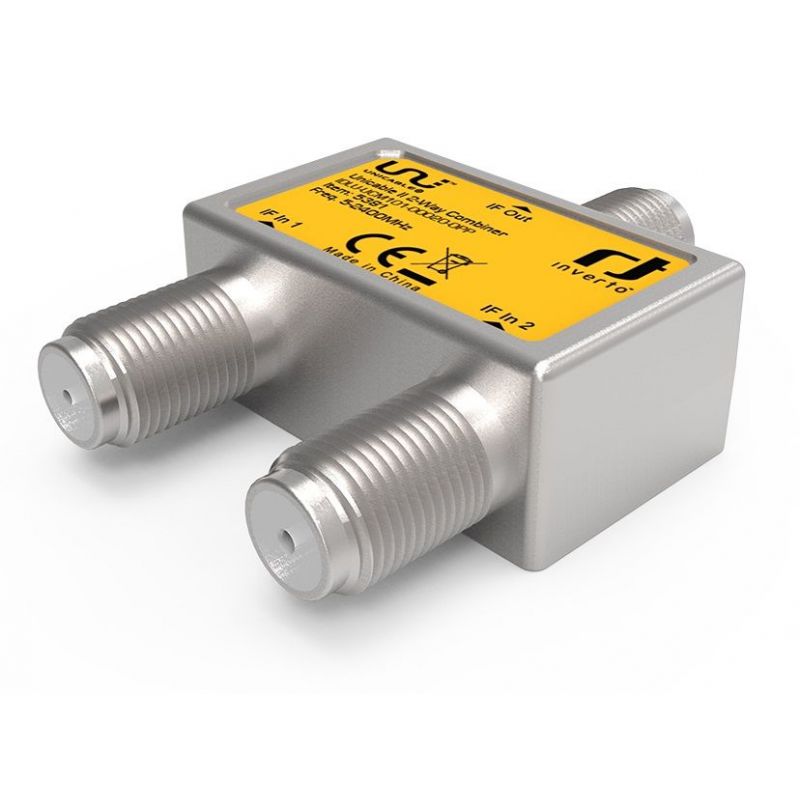

Inverto Unicable 2, 2-way combiner 5-2400MHz
Inverto Combiner for connecting two Unicable LNBs or multi-switches to a receiving unit for receiving multiple satellites.
€8.89
Tax included
Reference
inverto-5381
Brand
Inverto
Inverto Unicable 2, 2-way combiner 5-2400MHz
€8.89
Inverto Combiner for connecting two Unicable LNBs or multi-switches.
With the help of the Inverto Combinator, you connect two Unicable Inverto multicasts or LNBs (not supported by each model) to a receiving unit for receiving multiple satellites. For this purpose, the LNBs / multicasts must be programmed accordingly in order to be able to react correctly to the incoming position requests (DiSEqC). A special programming device is needed for this.
Specs
| Ref 1 | 5381 |
| Ref 2 | IDLU-UCM1O1-OOO2O-OPP |
| Frequency Range | 5 - 2400MHz |
| Inputs | 2x F-Type, female |
| Output | 1x F-Type, female |
| Insertion Loss | 4dB max. |
| Isolation between ports 5-47MHz | 8dB |
| Isolation between ports 47-2400MHz | 16dB min. |
| Input Return Loss | -10dB max. |
| Output Return loss | -8dB max. |
| DC & 22kHz pass from Output to Input | Yes |
| Impedance | 75Ω |
| Working Temperature | -30 ~ +60°C |
| Weight | 40g |
| Dimensions | 48.5x34.9x14.2mm |
