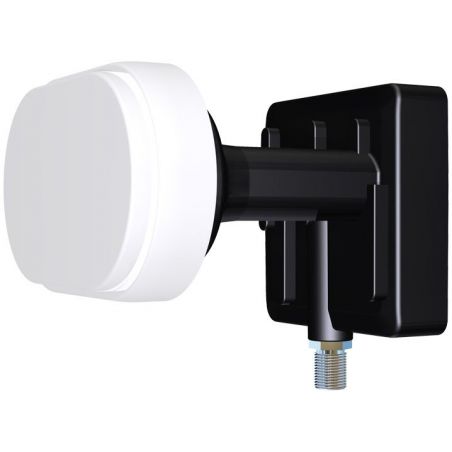

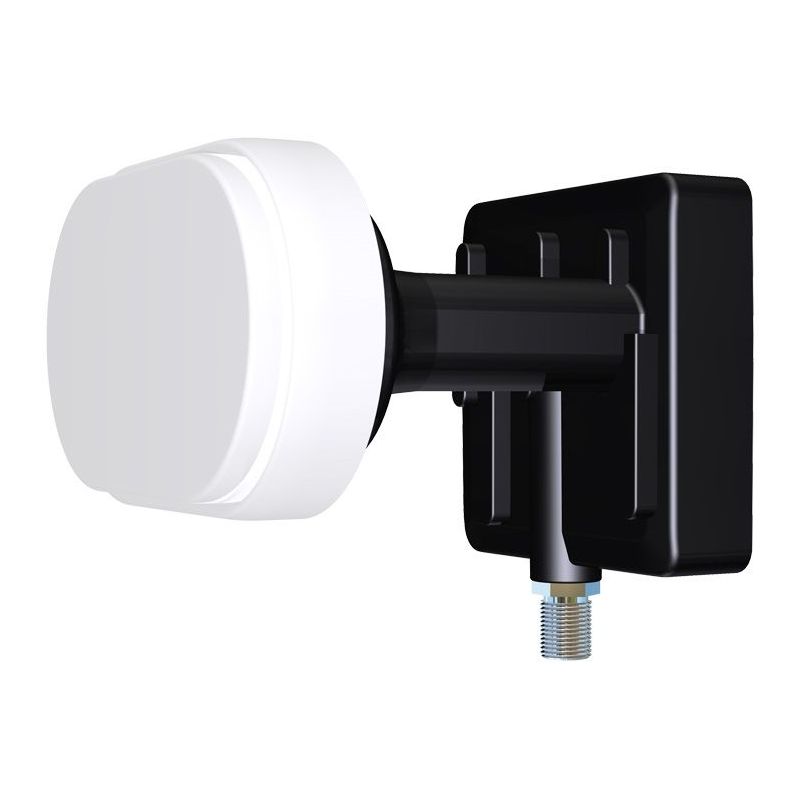

SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 9SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 2670 AND id_lang = 1 LNB Inverto Single Monoblock 60mm, 3° for 80cm dish
LNB Inverto Single Monoblock 60mm, 3° for 80cm dish. Inverto 3538 IDLB-SINM62-MNOO3-8PP
search
  • LNB Inverto Single Monoblock 60mm, 3° for 80cm dish. Inverto 3538 IDLB-SINM62-MNOO3-8PP
  • LNB Inverto Single Monoblock 60mm, 3° for 80cm dish. Inverto 3538 IDLB-SINM62-MNOO3-8PP

LNB Inverto Single Monoblock 60mm, 3° for 80cm dish

Specifically designed for the European DTH markets, this Monoblock LNB allows for dual satellite reception. It can be used for the broadcast reception (on an 80cm dish antenna) of any two satellites spaced with 6°. It enables the signal distribution to a Set Top Box with Single Tuner. The LNB is optimized for High Definition transmissions and provides excellent Noise Figure performance.

€18.50
Tax included
Reference inverto-3538
Brand Inverto
Quantity
Available Now

Free shipping
LNB Inverto Single Monoblock 60mm, 3° for 80cm dish. Inverto 3538 IDLB-SINM62-MNOO3-8PP

LNB Inverto Single Monoblock 60mm, 3° for 80cm dish

€18.50

Specifically designed for the European DTH markets, this Monoblock LNB allows for dual satellite reception. It can be used for satellite broadcast reception (on an 80cm dish antenna) of any two satellites spaced with 3° . It enables its distribution to a Set Top Box with Single Tuner. The LNB is optimized for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for satellite broadcast reception across Europe.

  • Hotbird on 13° East - Eutelsat on 16° East
  • Eutelsat on 16° East - Astra on 19.2º East

Main Features

  • Low Phase Noise, DVB-S2 (HDTV) compliant
  • Low Noise Figure (0.2 dB)
  • Low Power Consumption
  • Very high Cross Polarization Isolation
  • Very high Frequency Stability

Specs

draw
Ref. 1 3538
Ref. 2 IDLB-SINM62-MNOO3-8PP
Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.2 dB Typ. (0.7 dB Max.)
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) - 90 dBc / Hz Max.
Conversion Gain 50 ~ 65 dB
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band)  +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.
Control: Satellite A/B Selection DiSEqC 1.0 (Sat A* = Eastern Satellite Position,  Sat B = Western Satellite Position)
Cross Polarization Isolation 22 dB Min.
Output VSWR 2.5 : 1
In-Band Spurious - 60 dBm Max.
Current Consumption 120 mA Max. @ 11 ~ 20 V
Operating Temperature - 30 °C  ~  + 60 °C
Output Impedance 75 Ω
Output Connector F-Type (Female)
Weight 220 g
Recommended Dish Size 75 ~ 85 cm (F/D = 0.6)
Monoblock Mounting Bracket 60 mm
