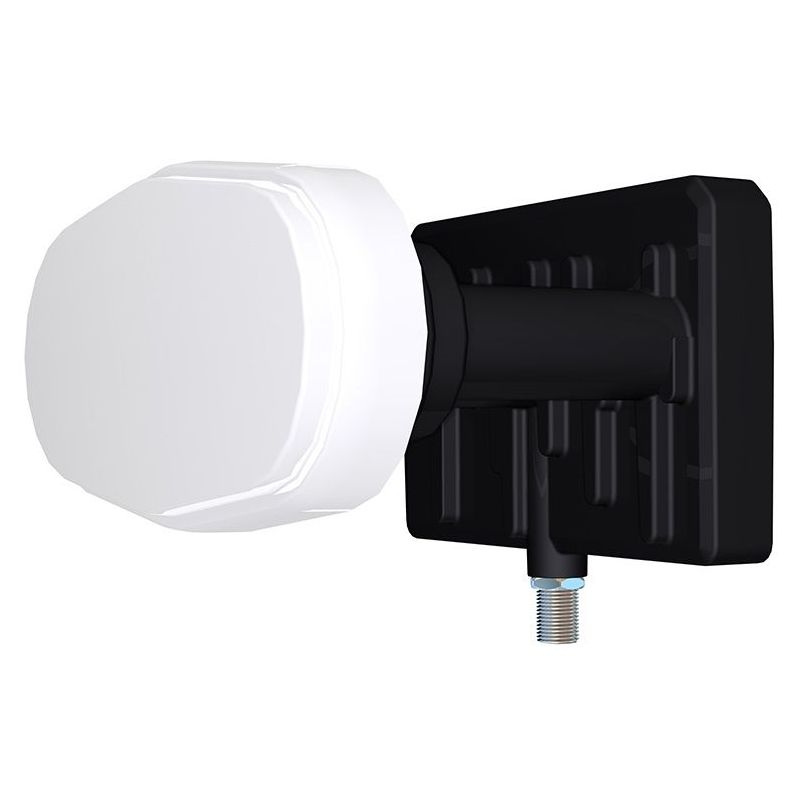

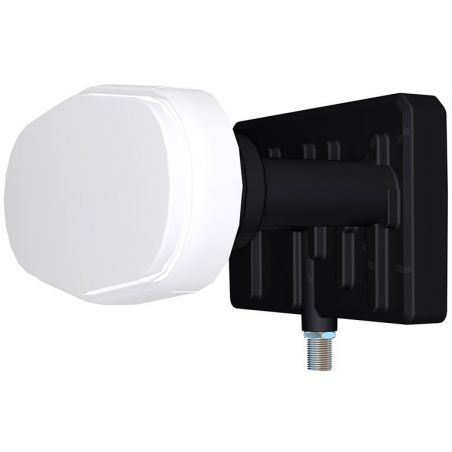

SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 9SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 2671 AND id_lang = 1 LNB Inverto Single Triplefeed 23mm, 13ºE + 16ºE + 19.2ºE for 90cm dish
LNB Inverto Single Triplefeed 23mm, 13ºE + 16ºE + 19.2ºE for 90cm dish. Inverto 5068 IDLM-SINM20-TRPMN-8PP
search
  • LNB Inverto Single Triplefeed 23mm, 13ºE + 16ºE + 19.2ºE for 90cm dish. Inverto 5068 IDLM-SINM20-TRPMN-8PP
  • LNB Inverto Single Triplefeed 23mm, 13ºE + 16ºE + 19.2ºE for 90cm dish. Inverto 5068 IDLM-SINM20-TRPMN-8PP

LNB Inverto Single Triplefeed 23mm, 13ºE + 16ºE + 19.2ºE for 90cm dish

This Triple Feed LNB is a monoblock LNBF for Ku-band satellite reception from orbital positions 13˚E, 16˚E and 19.2˚E in Central European countries.

€34.99
Tax included
Reference inverto-5068
Brand Inverto
Quantity
Available Now

Free shipping
LNB Inverto Single Triplefeed 23mm, 13ºE + 16ºE + 19.2ºE for 90cm dish. Inverto 5068 IDLM-SINM20-TRPMN-8PP

LNB Inverto Single Triplefeed 23mm, 13ºE + 16ºE + 19.2ºE for 90cm dish

€34.99

This Triple Feed LNB is a monoblock LNBF for Ku-band satellite reception from orbital positions 13˚E, 16˚E and 19.2˚E in Central European countries. It is intended to be installed with commercially available satellite dishes that have the following characteristics:

  • 85cm wide parabolic offset reflector
  • 40mm feed clamp with ~7mm profile (the LNB will be supplied with 40mm ring adaptor)
  • F/D = 0.6

It features a frequency range of 10.7 to 12.75GHz divided into Low Band (10.70 to 11.70GHz) and High Band (11.70 to 12.75GHz). It receives waves with horizontal and vertical polarization. The LNB provides one switchable IF outputs (Single model). The output carries also power supply and control signals. Output port is F type. DiSEqC1.0 commands allow switching the output to a particular band and orbital position.

The DiSEqC ODU allocation is the following: "ODU A" corresponds to 16E, "ODU B" to 13E and "ODU C" to 19.2E. As long as no DiSEqC command has been received, the selected orbital position is 16E (ie DiSEqC A). The LNB comprises three feeds, one for each orbital position. The feeds allow mounting into the feed clamp of the satellite dish. The feeds will be marked with “13˚E”, “16˚E” and “19.2˚E” respectively.

The DISEqC positions (A/B/C) and the respective orbital positions (16E/13E/19.2E) are marked on the LNB housing. The LNB is supplied with 40mm plastic ring adapter.

  • Hotbird 13º East - Eutelsat 16º East - Astra 19.2º East

Main Features

  • Low Phase Noise, DVB-S2 (HDTV) compliant
  • Low Noise Figure (0.2 dB)
  • Low Power Consumption
  • Very high Cross Polarization Isolation
  • Very high Frequency Stability

Specifications

New ref. 5068
Old ref. IDLM-SINM20-TRPMN-8PP
Low Band Input Frequency Range 10.7 ~ 11.7 GHz
O/P Frequency Range 950 ~ 1950 MHz
LO Frequency 9.75 GHz
Noise Figure 1.0(max) dB
High Band Input Frequency Range 11.7 ~ 12.75 GHz
O/P Frequency Range 1100 ~ 2150 MHz
LO Frequency 10.6 GHz
Noise Figure 1.0(max) dB
LO Initial Accuracy ± 1.0 MHz
LO Temperature Drift ± 3.0 MHz
LO Phase Noise @ 1K Hz -55 dBc / Hz
LO Phase Noise @ 10K Hz -80 dBc / Hz
LO Phase Noise @ 100K Hz -100 dBc / Hz
Conversion Gain 50 ~ 62 dB
Gain Variation 6 [max] dB
Output 1 dB Compression Point 0.0 [min.] dBm
Crosstalk Isolation 20 (min)dB
Output VSWR 2.5 : 1~
Output Spurious (inter-modulation) -55 [max] dBm
DC Power 10~20/150 [ max.] DCV/mA
Working Temperature - 30 ~ + 60 °C
Output Impedance 75 Ω
Polarity , Band & Satellite Selection V, L, 16°E 13V, 0kHz, DiSEqC1.0: Sat A
Polarity , Band & Satellite Selection V, H, 16°E 13V, 22kHz, DiSEqC1.0: Sat A
Polarity , Band & Satellite Selection H, L, 16°E 18V, 0kHz, DiSEqC1.0: Sat A
Polarity , Band & Satellite Selection H, H, 16°E 18V, 22kHz, DiSEqC1.0: Sat A
Polarity , Band & Satellite Selection V, L, 13°E 13V, 0kHz, DiSEqC1.0: Sat B
Polarity , Band & Satellite Selection V, H, 13°E 13V, 22kHz, DiSEqC1.0: Sat B
Polarity , Band & Satellite Selection H, L, 13°E 18V, 0kHz, DiSEqC1.0: Sat B
Polarity , Band & Satellite Selection H, H, 13°E 18V, 22kHz, DiSEqC1.0: Sat B
Polarity , Band & Satellite Selection V, L, 19.2°E 13V, 0kHz, DiSEqC1.0: Sat C
Polarity , Band & Satellite Selection V, H, 19.2°E 13V, 22kHz, DiSEqC1.0: Sat C
Polarity , Band & Satellite Selection H, L, 19.2°E 18V, 0kHz, DiSEqC1.0: Sat C
Polarity , Band & Satellite Selection H, H, 19.2°E 18V, 22kHz, DiSEqC1.0: Sat C
