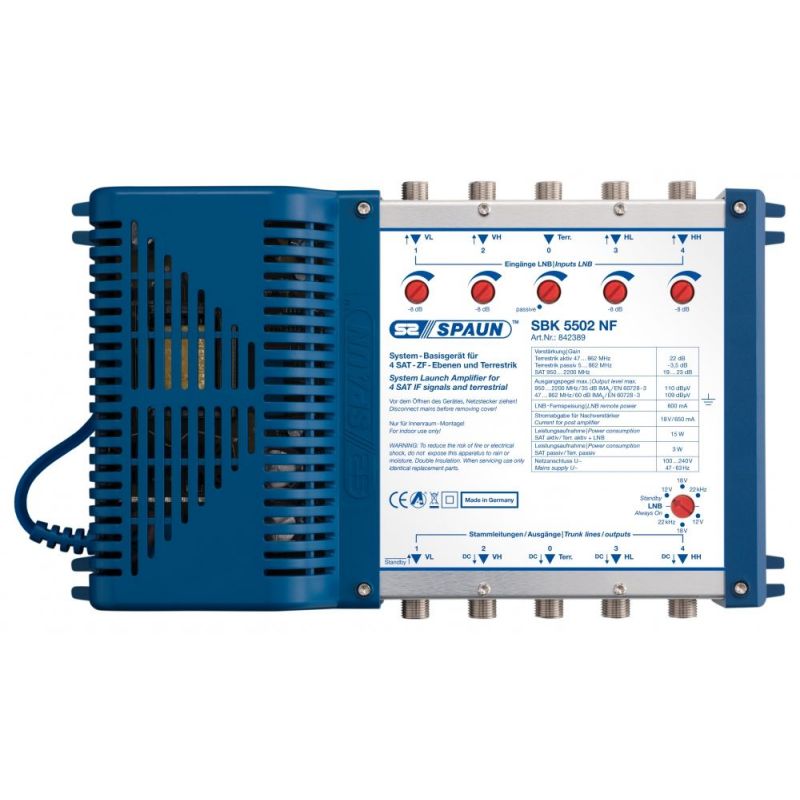

Spaun SBK 5502 NF Quattro+Terr Amplifier

Quattro + Terrestrial amplifier for cascadable multischwitches, terrestrial active

€225.30
Tax included
Reference spaun-sbk5502nf
Brand Spaun
Quantity
Out-of-Stock

Free shipping

Delivery in 7 days, please contact us to confirm availability.

Main Features

  • Ground Clamp.
  • Amplifier supply SBK 5502 NF, 18 V / 650 mA
  • The devices are supplied with an energy saving switched and short-circuit-proof power supply.

SAT IF

  • Amplifiers have precompensating 4 dB slope
  • The SAT IF amplifier units are equipped with two filters: One at the input and one at the output to perform excellent noise rejection and out - of - band immunity.
  • Integrated level adjuster (0 … - 8 dB) switchable to passive mode (5 … 862 MHz).
  • Push - Pull - Technology.
  • LNB supply voltage selectable for the use of Quattro or QUAD LNB.

Terrestrial

  • With the integrated level controller, the terrestrial input signals can be attenuated by up to 10 dB, or the stage is switched to passive mode (5 ... 862 MHz).
  • Push - pull technology.

Specs

Model
Art. Number		 SBK 5502 NF
Frequency range 47-2200 MHZ
Inputs 4 SAT + 1 TERR
Outputs 4 SAT + 1 TERR
Tap loss
terr passive 5 ... 862 MHz
3,5 dB
Gain
terr active 47 ... 862 MHz
22 dB
Gain
SAT-ZF 950 ... 2200 MHz
19 ... 23 dB
Noise figure Terr 7,5 dB
Noise figure SAT 7,5 ... 5 dB
Max. output level
47 ... 862 MHz
109 dBµV
Max. output level
950 ... 2200 MHz		 110 dBµV
Rejection Terr active / SAT > 30 dB
Rejection Terr passive / SAT > 30 dB
Rejection Terr. / SAT > 30 dB
Isolation
Trunk / trunk
= 26 dB
Mains power supply U~ 100 ... 240 V / 50 ... 60 Hz
Power consumption
Terr. active / SAT active
36 W
Power consumption
Terr. passive / SAT active
32 W
Power consumption
Terr. active / SAT standby
6 W
Power consumption
Terr. passive / SAT standby
2,5 W
LNB total current 600 mA
Total single port current 400 mA
Current for
post amplifier max.
18 V / 650 mA
Ambient temperature -20 ... +50 °C
Dimensions mm 220 x 130 x 52
