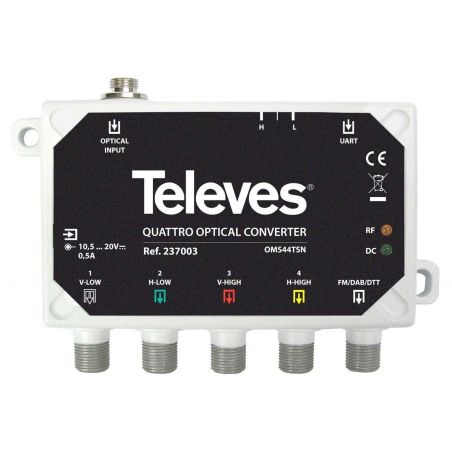

Optical converter QUATTRO RF + FM / DAB / UHF-FI Televes
This complement of systems with optical LNB, receives an optical signal from TV (1100-1650nm) and recovers the original RF signal. It offers 5 RF outputs: one for terrestrial TV and another 4 for satellite TV in Quattro mode, that is, delivering one of the four TVSAT polarity and band combinations to each connector.
€222.16
Tax included
Reference
televes-237003
Brand
Televes
Optical converter QUATTRO RF + FM / DAB / UHF-FI Televes
€222.16
You might also like
This complement of systems with optical LNB, receives an optical signal from TV (1100-1650nm) and recovers the original RF signal. It offers 5 RF outputs: one for terrestrial TV and another 4 for satellite TV in Quattro mode, that is, delivering one of the four TVSAT polarity and band combinations to each connector.
Stands out for
- Switch to regulate the satellite gain in three levels: low, medium and high
- RF signal presence indicator LED
- Accepts terrestrial TV mix (FM / DAB / UHF)
- Reduced size
Main features
- Optical connectors FC / PC and type F in RF
Specifications
| Reference / Art. Nr. | 237003 / OMS44TSN | |
| TVSAT | ||
| Bands and polarities | MHz | HORIZONTAL HIGH: 1100 - 2150 ≥15.5V + 22kHz VERTICAL HIGH: 1100 - 2150 ≤14.5V + 22kHz LOW HORIZONTAL: 950 - 1950 ≥15.5V VERTICAL LOW: 950 - 1950 ≤14.5V |
| Terrestrial band rejection | dB | 30 |
| Output Level | dBμV | High Gain: 78 Med Gain: 73 Low Gain: 68 |
| FM / DAB / DTT | ||
| Frequency range | MHz | FM: 88 - 108 DAB: 174 - 240 DTT: 470 - 790 |
| TVSAT rejection | dB | 35 |
| Output levels | dBμV | 82 @ 1mux 78 @ 6mux |
| Optical | ||
| Wavelength | nm | 1100 - 1650 |
| Input power | dBm | min: -12.2 max: -3 |
| Feeding | ||
| Network voltage | Vdc | 10.5 - 20 |
| Consumption | mA | 500@10.5V 430 @ 12V 260 @ 20V |
| Mechanical | ||
| Optical input | kind | FC / PC |
| Storage temperature | ºC | -20 ... 70 |
