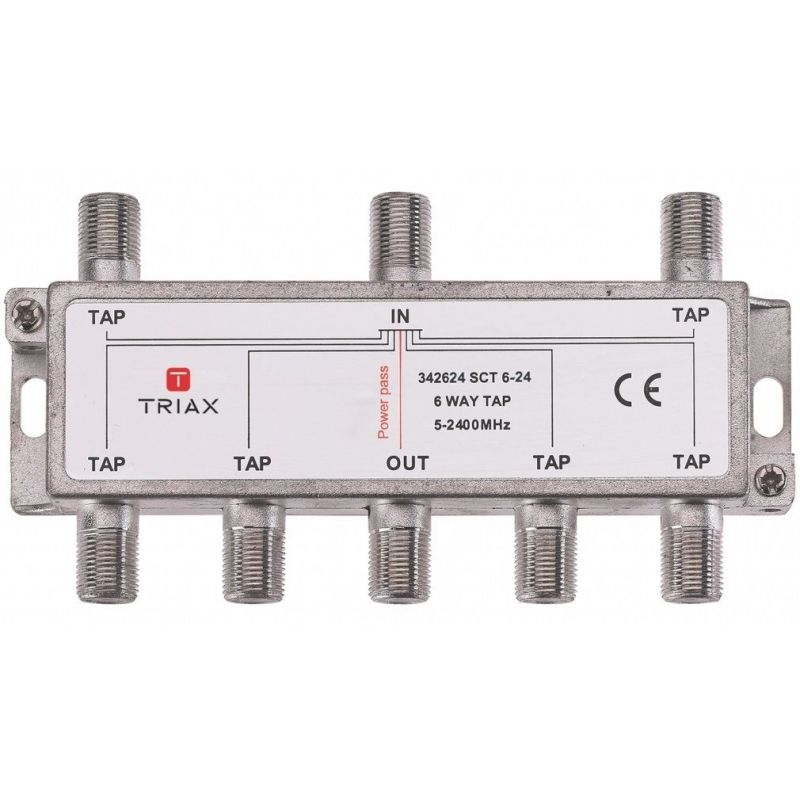

Triax SCT 6-24 6 Way Tap 24dB

6 Way Tap of 24dB attenuation, 5-2400 MHz, F connectors, ideal for SAT-IF and MATV distribution networks.

€10.29
Tax included
Reference triax-342624
Brand Triax
Quantity
Available in 4/5 days

Free shipping
Triax SCT 6-24 6 Way Tap 24dB. Triax 342624

Triax SCT 6-24 6 Way Tap 24dB

€10.29

Triax tap ideal for SAT-IF and MATV distribution networks.

Main Features

  • Frequency range 5-2400 MHz
  • DC pass through on trunk IN-OUT
  • High shielding
  • Return loss Grade 3
  • High quality die-cast housing tin (Sn) coated
  • Acc. to EN 50083-2 & EN 60728-4

Specs

SCT 6-24
SHIELDING
Shielding effeciency VHF/UHF > 110 dB
CHARACTERISTICS
Type COAX tap
FREQUENCY
Frequency range 5...2400 MHz
LOSS
Tap Loss (in-tap) 1000-2150 MHz 26.0 (± 2.5) dB
Tap loss (in-tap) 2150-2400 MHz 26.0 (± 3.0) dB
Tap loss (in-tap) 40-1000 MHz 24.0 (± 1.5) dB
Tap loss (in-tap) 5-40 MHz 24.0 (± 1.5) dB
ISOLATION
Isolation (out-tap) 1000-2150 MHz 24 dB
Isolation (out-tap) 2150-2400 MHz 24 dB
Isolation (out-tap) 40-1000 MHz 27 dB
Isolation (out-tap) 5-40 MHz 27 dB
Isolation (tap-tap) 1000-2150 MHz 23 dB
Isolation (tap-tap) 2150-2400 MHz 23 dB
Isolation (tap-tap) 40-1000 MHz 25 dB
Isolation (tap-tap) 5-40 MHz 28 dB
RETURN LOSS
Return Loss (in-out) 1000-2150 MHz 13.0 dB
Return loss (in-out) 2150-2400 MHz 12.0 dB
Return loss (in-out) 40-1000 MHz 13.0 dB
Return loss (in-out) 5-40 MHz 11.0 dB
Return Loss (tap) 1000-2150 MHz 12.0 dB
Return loss (tap) 2150-2400 MHz 12.0 dB
Return loss (tap) 40-1000 MHz 13.0 dB
Return loss (tap) 5-40 MHz 13.0 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
Certification CE, RoHS
DC Passthrough Yes IN-OUT (max. 500mA) TAPS DC blocked
Screening Efficiency Class A
CONNECTORS
Connector Type F-female
Number of inputs 1
Number of outputs 1
Number of taps 6
MECHANICAL
Product Depth 17 mm
Extra high bracket (Optional) 2 x BL-Brackets Large 6-8 T&S (Art.No.342102)
Packaging Depth 0,120 m
Packaging Height 0,020 m
Total Weight 0,130 kg
Packaging Width 0,070 m
Net Weight 0,130 kg
Packing QTY 1
Product Width 119 mm
Product Height 65 mm
