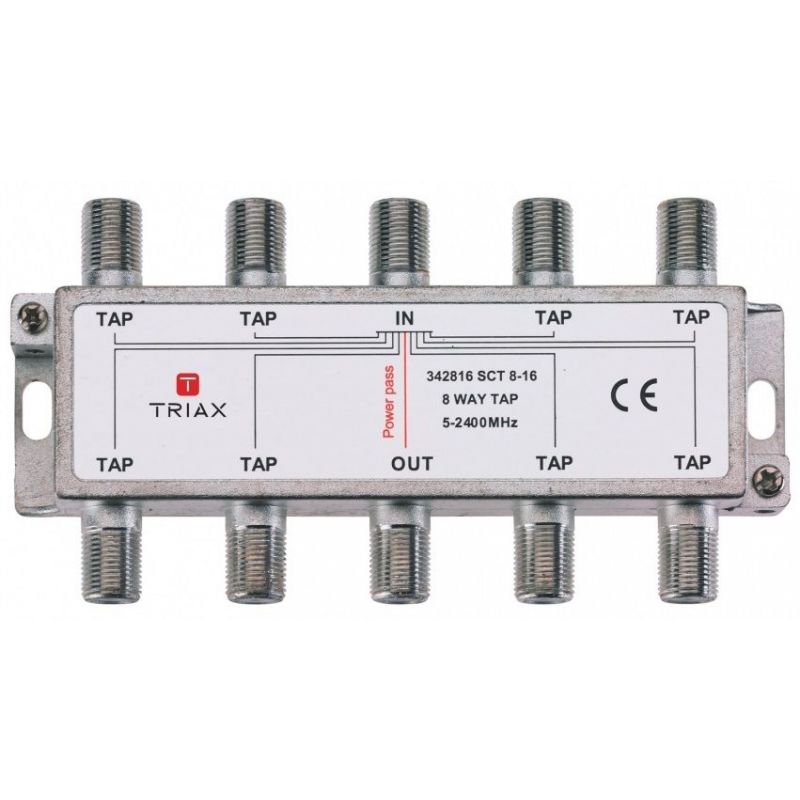

Triax SCT 8-16 Shunt 8 outputs 16 dB attenuation
SCT 8-16 - 6 way tap. TRIAX coaxial tap ideal for SAT-IF and MATV distribution networks. Frequency range 5-2400 MHz. DC pass via trunk line IN-OUT. High shielding against ingress noise like radiated by LTE mobile. High quality die-cast housing tin (Sn) coated with solder shield bottom plate. Grounding clamp terminals.
€11.25
Tax included
Reference
triax-342167
Brand
Triax
SCT 8-16 - 6 way tap
TRIAX coaxial tap ideal for SAT-IF and MATV distribution networks.
Main Features
- Frequency range 5-2400 MHz
- DC pass via trunk line IN-OUT
- High shielding against ingress noise like radiated by LTE mobile
- High quality die-cast housing tin (Sn) coated with solder shield bottom plate
- Grounding clamp terminals
- Anteriormente triax-342816
Specifications
| SHIELDING | |
|---|---|
| Shielding effeciency VHF/UHF | >85 dB |
| CHARACTERISTICS | |
| Type | COAX tap |
| FREQUENCY | |
| Frequency range | 5...2400 MHz |
| LOSS | |
| Tap loss (in-tap) 5-40 MHz | 16.0 dB |
| Tap loss (in-tap) 40-1000 MHz | 16.0 dB |
| Tap loss (in-tap) 1000-2150 MHz | 20.0 dB |
| Tap loss (in-tap) 2150-2400 MHz | 20.0 dB |
| Insertion loss (in-out) 5-40 Mhz | 4.5 dB |
| Insertion loss (in-out) 40-1000 Mhz | 4.8 dB |
| Insertion loss (in-out) 1000-2150 MHz | 5.5 dB |
| Insertion loss (in-out) 2150-2400 Mhz | 6.5 dB |
| ISOLATION | |
| Isolation (tap-tap) 5-40 MHz | 24 dB |
| Isolation (out-tap) 5-40 MHz | 28 dB |
| Isolation (tap-tap) 40-1000 MHz | 25 dB |
| Isolation (out-tap) 40-1000 MHz | 28 dB |
| Isolation (tap-tap) 1000-2150 MHz | 23 dB |
| Isolation (out-tap) 1000-2150 MHz | 23 dB |
| Isolation (tap-tap) 2150-2400 MHz | 23 dB |
| Isolation (out-tap) 2150-2400 MHz | 23 dB |
| RETURN LOSS | |
| Return loss (in-out) 5-40 MHz | 8.0 dB |
| Return loss (tap) 5-40 MHz | 8.0 dB |
| Return loss (in-out) 40-1000 MHz | 10.0 dB |
| Return loss (tap) 40-1000 MHz | 10.0 dB |
| Return loss (in-out) 1000-2150 MHz | 8.0 dB |
| Return loss (tap) 1000-2150 MHz | 8.0 dB |
| Return loss (in-out) 2150-2400 MHz | 8.0 dB |
| Return loss (tap) 2150-2400 MHz | 12.0 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Application | SAT, MATV 2.4Ghz +DC |
| Screening Efficiency | EN50083-2 (Class A) |
| DC Passthrough IN-OUT | max. 1A/30V |
| Certification | EN 50581:2012 (RoHS II) |
| Environment | Indoor |
| Temperature - operating | -30…+60 °C |
| CONNECTORS | |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Number of taps | 8 |
| Connector Type | F-female (IEC 61 169-24) |
| MECHANICAL | |
| FormulaTest | 17.5 mm x 58.3 mm x 118 mm |
| Main material | Zinc diecast/Sn plated |
| Packaging | Polybag |
| Packing QTY | 1 |
| Product Height | 18 mm |
| Product Width | 58 mm |
| Product Depth | 118 mm |
| Packaging Height | 0,120 m |
| Packaging Width | 0,060 m |
| Packaging Depth | 0,020 m |
| Net Weight | 0,140 kg |
| Tara Weight | 0,001 kg |
| Total Weight | 0,141 kg |
