SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 76SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 2735 AND id_lang = 1 Johansson 6700 Programmable terrestrial filter amplifier 5 inputs 4G 5G LTE
  • -33%
search

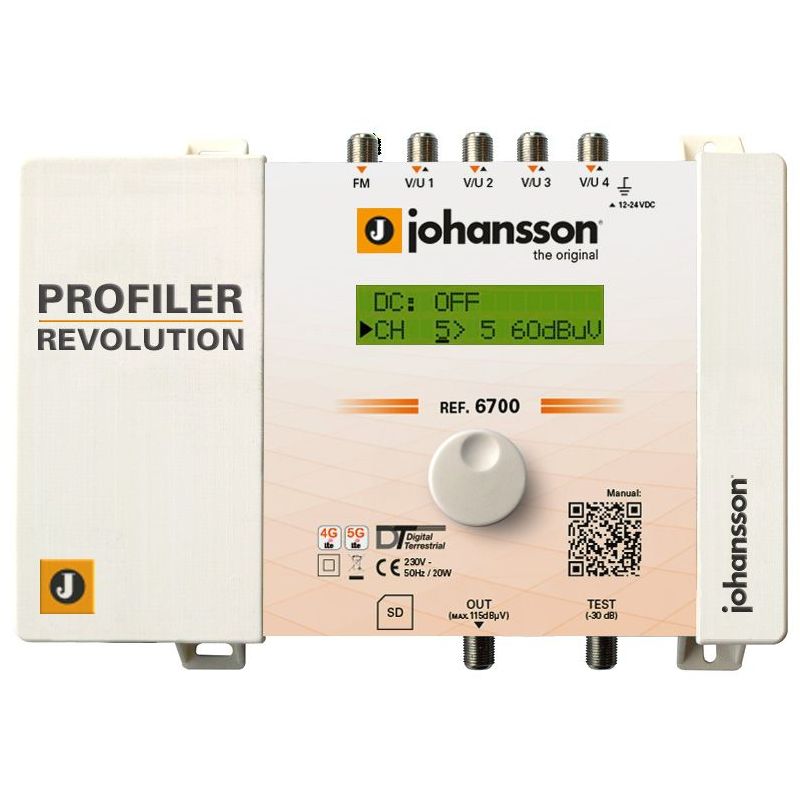

Johansson 6700 Programmable terrestrial filter amplifier 5 inputs 4G 5G LTE

Johansson Signal Processing Header (6700). 5 inputs: FM, 4xVHF / UHF. Gain: 35dB (FM), 45dB (VHF), 70dB (UHF). Output level: 131dB. High Selectivity, CAG. Channel processor. Output level: 112 (with 6 MUX). You can configure up to 32 filters of 1 or 2 adjacent channels.

€263.58 €393.41 Save 33%
Tax included
Reference johansson-6700
Brand Johansson
Quantity
Available Now

Free shipping

Johansson 6700 Programmable terrestrial filter amplifier 5 inputs 4G 5G LTE

€263.58 €393.41 Save 33%

Johansson Signal Processing Header (6700)

  • 5 inputs: FM, 4xVHF / UHF
  • Gain: 35dB (FM), 45dB (VHF), 70dB (UHF)
  • Output level: 131dB
  • High Selectivity, CAG
  • Channel processor
  • Output level: 112 (with 6 MUX)
  • You can configure up to 32 filters of 1 or 2 adjacent channels

Characteristics

  • Entry level reading - no need for a network analyzer
  • Can process and convert more than 50 channels
  • The most selective filters on the market (50 dB in adjacent channels)
  • Real-time AGC on all individual multiplexes
  • Complete flexibility in assigning filters to any of the inputs
  • Made in Europe, for applications around the world
  • The Profiler Revolution facilitates easy setup and is the most cost-effective profiler on the market.
  • The most cost-effective channel conversion solution on the market, with great flexibility to map any VHF / UHF input to any VHF / UHF output
  • Very easy and fast installation, without the need for a field strength meter
  • Extremely sharp filters, 50 dB in adjacent channels and integrated 4G / 5G / LTE filters. The Profiler Revolution can filter and amplify very weak signals. This is something that our test users could not do in the past with other equipment.
  • A perfect headend for your fiber installation to equalize and optimize signals
  • Excellent output signal quality, Profiler Revolution optimizes the incoming terrestrial digital signal to ensure supreme video quality on end users' TV screens

Specifications

Model 6700
Tickets - 4 VHF / UHF + 1FM
Departures - 1 main (FM - VHF - UHF) + 1 test port (-30db)
Frequency range MHz
MHz
MHz		 FM: 88 - 108
VHF: 174 - 240
UHF: 470 - 862
LTE protection MHz Automatic selection: 694, 790 or OFF
Entry level dBµV
dBµV
dBµV		 FM: 37 - 77
VHF: 40 * - 109
UHF: 40 * - 109

FM output power

VHF / UHF power output

VHF / UHF power output

 dBµV
dBµV
dBµV
dBµV		 113 (60dB / IM3)
120 (60dB / IM3)
131 (35dB / IM3)
112 (with 6 MUX)
Conversion - Yes (from any VHF-UHF channel to any VHF-UHF channel)
Number of channels - > 50
Add channels - 1 or 2 MUXes per filter
Gain

dB

dB

dB

FM: 35

VHF:> 70

UHF:> 70
Gain adjustment: FM VHF / UHF

dB

-

twenty

CAG channel
General attenuator dB twenty
VHF / DAB attenuator dB fifteen
Slope adjustment dB 9
Selectivity dB / 1MHz 35
Output MER

dB

dB

VHF: 35

UHF: 35
ESD protection - All entries

Power supply voltage for preamplifier

Power supply current

V

mA

12 or 24

100 (total for 4 entries)
SD port - Yes (for copying settings and update functions)
Operating temperature ºC -5 to +50
Power supply Vac 100 - 240
Consumption W fifteen
Dimensions mm 220 x 165 x 55
Weight kg 0.8

* For 64 QAM with code rate ¾.
