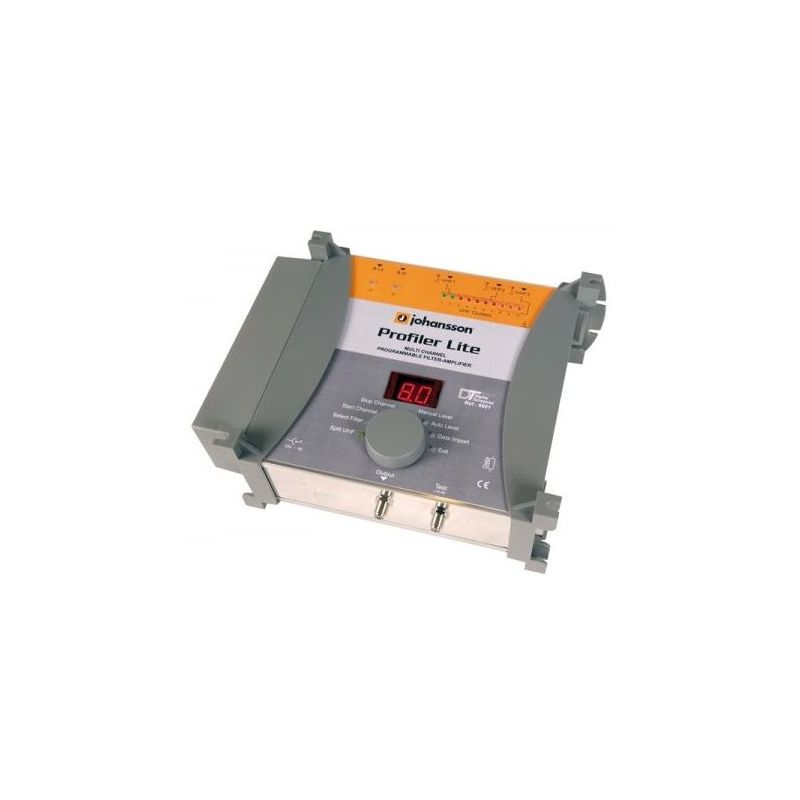

Johansson 6601 Profiler Lite 10 Programmable terrestrial filter amplifier 5 inputs LTE
search
  • Johansson 6601 Profiler Lite 10 Programmable terrestrial filter amplifier 5 inputs LTE

Johansson 6601 Profiler Lite 10 Central programmable 5 LTE inputs

Programmable control unit 6601: 5 inputs 1x BI-FM / 1x BIII / 3 x UHF 10 Clusters / 24 V Remote power

€291.85 €435.60 Save 33%
Tax included
Reference johansson-6601
Brand Johansson
Quantity
Out-of-Stock

Free shipping

The Profiler Lite devices are a slimmed down version of the basic 6600 Profiler, offering the same flexibility, but a
lower gain, less filter clusters and a lower number of inputs. These are ideal for smaller buildings, where the high gain
of the 6600 Profiler is not needed.

Features

  • 5 inputs : BI-FM/BIII/3 x UHF (UK version: FM/BIII/3 x UHF)
  • 10 UHF programmable clusters from 1 to 7 channels bandwidth
  • medium gain: 45 dB
  • 24 V remote power on UHF inputs (12V for 6601UK and 6601A)
  • VHF-UHF split band amplifier with inter-stage attenuators
  • -30 dB test output

Specifications

Johansson 6601
Inputs - BI-FM BIII/DAB UHF1 UHF2 UHF3
Frequency range MHz 47-108 174-240 470-862
Filter bandwidth - - - 1-7 Ch. (8-56 MHz)
Cluster configuration - - 2 8 0
2 7 1
2 5 3
Gain dB 35 40 45
Gain adjustment dB 20 20 30
General UHF level adjustment dB - +10 to -9
Noise figure dB 5 5 6
Max. input level dBµV 75 80 105
Max. output level* dBµV 115 115 110
Selectivity dB/Ch±2 - 15
Return loss dB >10
LNA remote voltage V - 24***
LNA remote current A - 100 mA total
Outputs - 1 x TV output
1 x Test output: -30 dB
Data transfer
- DSUB9 connector
Power supply - 230-240 V~ / 15 VDC / 35 VA
Operating temperature °C -5 to +50
Dimensions mm 265 x 220 x 95
