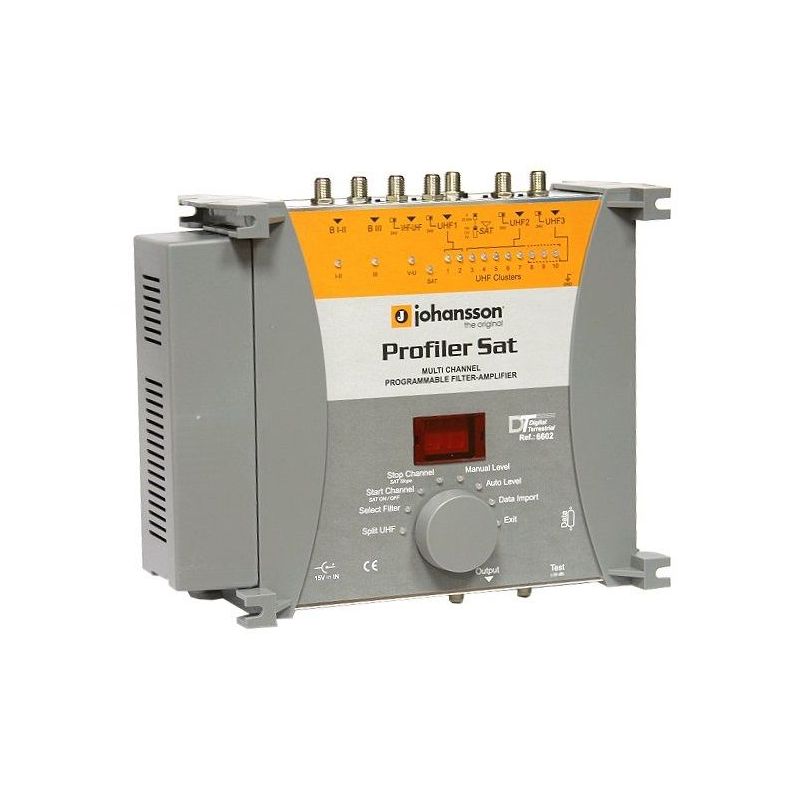

Johansson 6602 Profiler SAT Programmable terrestrial filter amplifier 7 inputs LTE

Programmable filter amplifier SAT: 7 inputs 1x BI-FM / 1x BIII / 1x VHF-UHF / 3 x UHF / 1x SAT 10 Clusters / 24 V UHF remote power for LNA / 0-13-18 V +0-22 kHz SAT remote power for LNB

€332.39 €496.10 Save 33%
Tax included
Reference johansson-6602
Brand Johansson
Quantity
Out-of-Stock

Free shipping

In some situations the roof-top terrestrial antennas are accompanied by a satellite antenna, and both terrestrial and
satellite signals have to be combined on the same coaxial cable for distribution throughout the building. The Profiler
SAT series is the ideal product for these situations, by extending the normal Profiler with a satellite input.

Main Features

  • 1 SAT input + 6 Terrestrial inputs : BI-FM/BIII/VHF-UHF/3 x UHF
  • 10 UHF programmable clusters from 1 to 7 channels bandwidth
  • VHF-UHF-SAT split band amplifiers with inter-stage attenuators
  • high gain (55 dB) and high output power (116 dBμV)
  • 0-13-18 V / 0-22 kHz remote power for LNB
  • VHF-UHF split band amplifier with inter-stage attenuators
  • -30 dB test output

Specs

Johansson 6602
Inputs - BI-FM BIII/DAB VHF-UHF UHF1 UHF2 UHF3 SAT
Frequency range MHz 47-108 174-240 47-240 + 470-862 470-862 950-2300
Filter bandwidth - - 1-7 Ch. (8-56 MHz) -
Cluster configuration - - 2 8 0 -
2 7 1 -
2 5 3 -
Gain dB 35 40 40 55 40
Gain adjustment dB 20 20 20 30 20
Slope adjustment dB - 9
General UHF level adjustment dB - +10 to -9 -
Noise figure dB 5 5 5 6 8
Max. input level dBµV 75 80 80 105 90
Max. output level* dBµV 115 115 VHF: 116 UHF: 116 116 116
Selectivity dB/Ch±2 - 15 SAT/TERR.: >30
TERR./SAT: >25
Return loss dB >10
LNA/LNB remote voltage V - 24 0/13/18V and 0/22 kHz
LNA/LNB remote current A - 100 mA total 300 mA
Outputs -

1 x TV-SAT output

1 x Test output: -30 dB
Data transfer - DSUB9 connector
Power supply - 230-240 V~ / 15 VDC / 45 VA
Operating temperature °C -5 to +50
Dimensions mm 265 x 220 x 95
