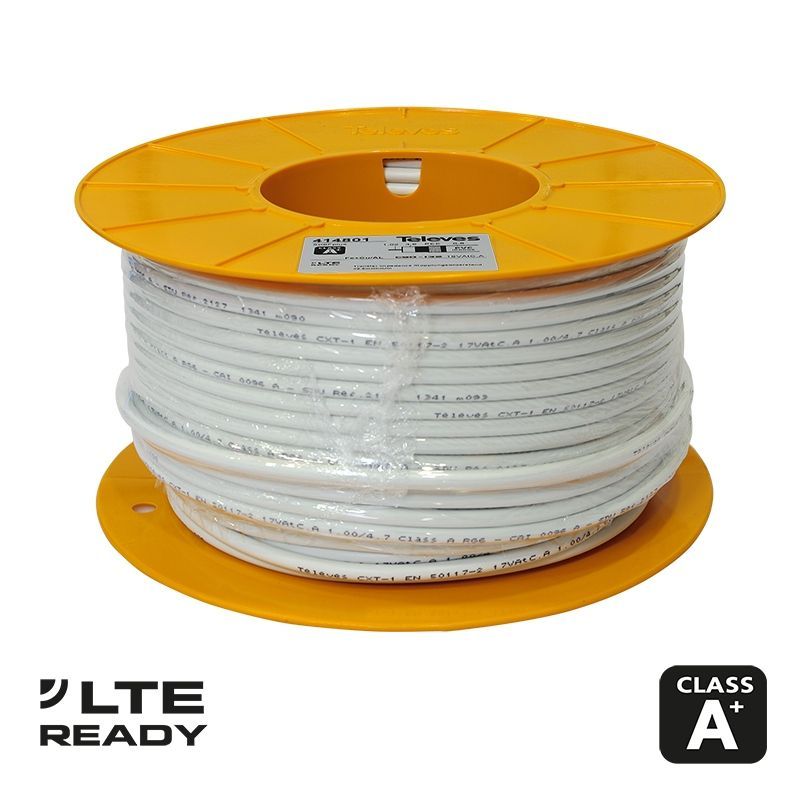

Cabel Coaxial copper-steel SK6FPlus Cu+Ac 6.8mm PVC White 100m Televes
Cable coaxial cobre-acero SK6FPlus Cu+Ac 6.8mm PVC Blanco 100m Televes
€0.50
Tax included
Reference
televes-414801
Brand
Televes
Cabel Coaxial copper-steel SK6FPlus Cu+Ac 6.8mm PVC White 100m Televes
€0.50
Cable coaxial cobre-acero SK6FPlus Cu+Ac 6.8mm PVC Blanco 100m Televes
Specs
| Inner conductor braid | Staku-Aluminium | ||||
| Typ | Triple shield | ||||
| Art.Nr. | SK6fplus | ||||
| Ref.Nr. | 414801 | ||||
| inner conductor | Ø | mm | 1,02 | ||
| Material | - | Staku | |||
| resistance | ohm/km | 110 | |||
| dielectric | Ø | mm | 4,6 | ||
| Material | - | Cell polyethylene (PEE) | |||
| First slide | composition | Polyester film + aluminum glued | |||
| weave | resistance | ohm/km | 30 | ||
| Dimensions | L x A x Ø | 16 x 6 x 0,115 | |||
| covers | % | n.V. | |||
| Material | - | Aluminium | |||
| Second slide | composition | Aluminum + polyester film | |||
| coat | Ø | mm | 6,8 | ||
| Colour | - | white | |||
| Material | - | PVC | |||
| bending radius min. | mm | 33,5 | |||
| Shielding | dB | 100 typ. | |||
|
coupling resistance
|
mOhm/m | < 2,5 (5-30 MHz) | |||
| application | INNEN | ||||
| Fire rating | Eca | ||||
| packaging | Meter/role | m | 100 | ||
| Typ | Ø x height (cm) | Ø 27 x H 14 (Plastic) | |||
| damping (MHz) | 50 | dB/100m | 4,8 | ||
| 200 | 9,5 | ||||
| 500 | 15 | ||||
| 800 | 19,2 | ||||
| 1000 | 21,5 | ||||
| 1350 | 25 | ||||
| 1750 | 28,65 | ||||
| 2050 | 32 | ||||
| 2300 | 33 | ||||
| 2700 | 58 | ||||
