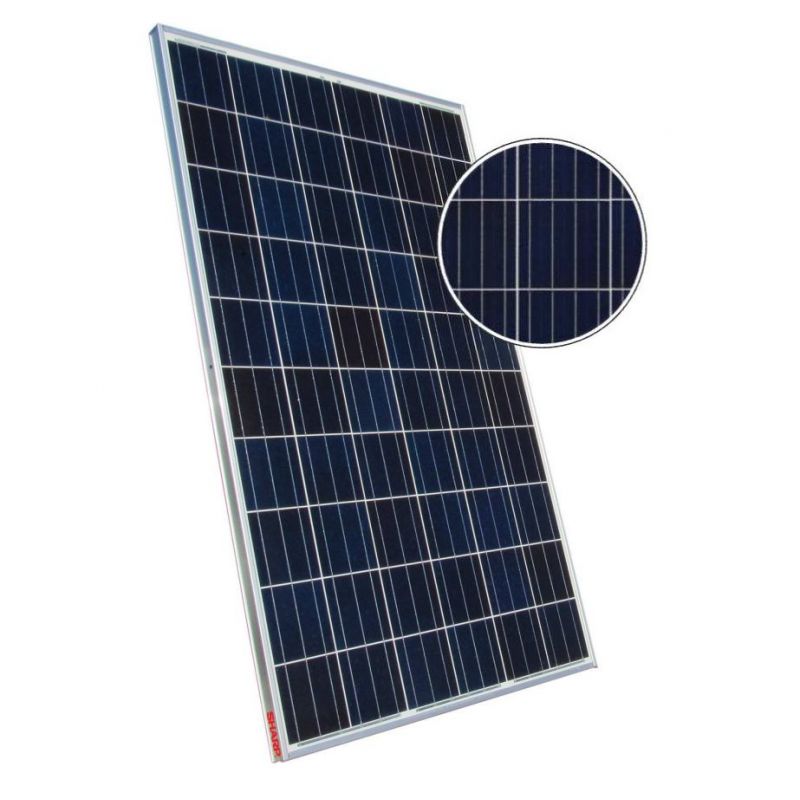

Sharp Polycrystalline Solar Panel 275W
High efficiency module (16.8%). Proven quality (TÜV IEC / EN 61215 + IEC / EN61730, Safety class II, CE, Application class A, DIN EN 13501-01, class E). Rugged design (tested for ammonia and salinity). Excellent test results (market research of the EUPD). Reliable guarantee (10-year product warranty, 25-year linear performance guarantee).
€453.75
Tax included
Reference
tecatel-ES-NDRB275
Brand
Sharp
Sharp Polycrystalline Solar Panel 275W
€453.75
High efficiency module (16.8%). Proven quality (TÜV IEC / EN 61215 + IEC / EN61730, Safety class II, CE, Application class A, DIN EN 13501-01, class E). Rugged design (tested for ammonia and salinity). Excellent test results (market research of the EUPD). Reliable guarantee (10-year product warranty, 25-year linear performance guarantee). Guaranteed positive power tolerance (at least the specified value and up to 5% more).
Specifications
| General | |
| Nominal output (Wp) | 275 |
| Module Performance (%) | 16.8 |
| Mechanical data | |
| Cell size (mm) ² | 156 |
| Number of cells and connections | 60 in series |
| Dimensions (Length x Width x Width) (mm) | 1650x941x35 |
| Weight (kg) | 18.6 |
| Maximum mechanical load (N / m2) | 2400 |
| Electrical characteristics | |
| Open short-circuit voltage Vca (V) | 38.5 |
| Short-circuit current Icc (A) | 9.25 |
| Maximum power supply voltage (V) | 31.1 |
| Maximum supply current (A) | 8.84 |
| System voltage (V DC) | 1000 |
| Characteristics and thermal coefficients | |
| αPm (% / ° C) | -0.41 |
| αIsc (% / ° C) | 0.05 |
| αVoc (% / ° C) | -0.32 |
| Operating temperature (° C) | -40 to +85 |
| Storage temperature (° C) | - |
