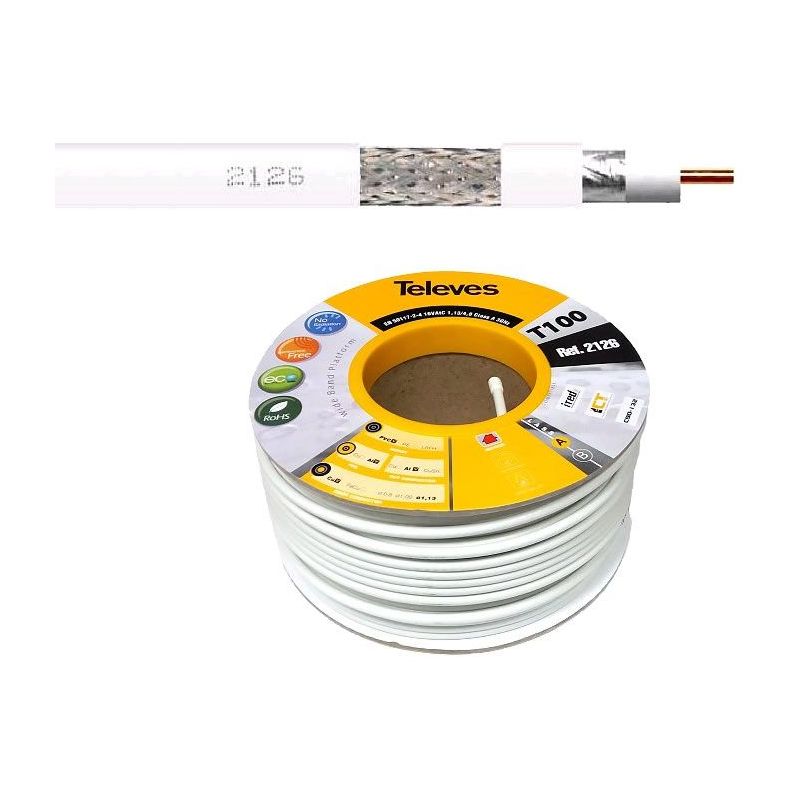

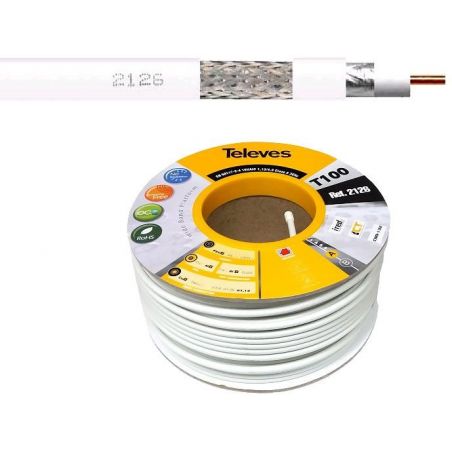

Televes T100 - Coaxial Cable T100 PVC CU/AL PVC BL. 100m
Coil of 100 meters coaxial cable cardboard with coating. Eca / A 16VAtC
€0.86
Tax included
Reference
televes-2126
Brand
Televes
Televes T100 - Coaxial Cable T100 PVC CU/AL PVC BL. 100m
€0.86
Features
- The range of T100 coaxial cables is manufactured using physical expansion that gives them greater protection against adverse environmental conditions, ensuring compliance for longer.
- PE cables are used for weather applications.
- PVC cables are used for indoor applications
| Reference | 2126 | ||
| INNER CONDUCTOR - BRAID COMPOSITION | COPPER - CCS (copper-clad steel) | ||
| Televes Model | T-100 | ||
| Inner Conductor |
Ø | mm | 1,13 |
| material | - | Copper | |
| resistance | Ω/Km | < 20 | |
| Dielectric | Ø | mm | 4,7 |
| material | - | Foam Polyethylene | |
| Overlapping shielding foil | composition | Aluminium + Polyester + Aluminium | |
| Braid | resistance | Ω/Km | <27 |
| material | - | CCS (copper-clad steel) | |
| Antimigrating film | No | ||
| Petrol jelly | No | ||
| Outer sheath | Ø | mm | 6,6 |
| color | White | ||
| material | - | PVC | |
| Minimum bending radius | mm | 33 | |
| Screening efficiency | dB | >75 | |
| Capacitance | pF/m | 55 | |
| Environmental use | Indoor | ||
| Packaging | meters/reel | m | 100 |
| Frequency Attenuation (MHz) |
200 | dB/m |
0,08 |
| 500 | 0,13 | ||
| 800 | 0,16 | ||
| 1000 | 0,19 | ||
| 1350 | 0,22 | ||
| 1750 | 0,25 | ||
| 2050 | 0,28 | ||
| 2300 | 0,30 | ||
