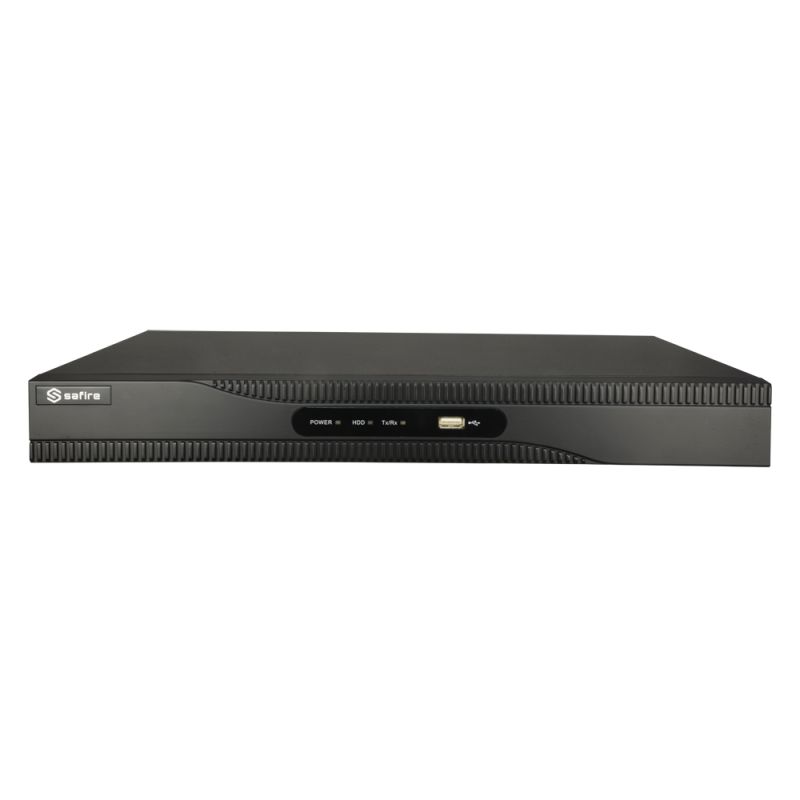

Safire SF-NVR6104-4KE-4P - NVR for IP cameras, 4 CH video PoE+ 50W / Compression…
search
  • Safire SF-NVR6104-4KE-4P - NVR for IP cameras, 4 CH video PoE+ 50W / Compression…

Safire SF-NVR6104-4KE-4P - NVR for IP cameras, 4 CH video PoE+ 50W / Compression…

NVR for IP cameras - 4 CH video PoE+ 50W / Compression H.265+ - Maximum resolution 8.0 Mpx - Bandwidth 40 Mbps - Outputs 4K HDMI & VGA - Supports 1 hard disk
€138.00
Tax included
Reference SF-NVR6104-4KE-4P
Brand Safire
Quantity
Out-of-Stock

Free shipping
  • Safire
  • NVR for IP cameras
  • 4 CH PoE+ 50 W
  • 40 Mbps bandwidth supported
  • Maximum resolution 4K
  • Decoding capacity: 1 CH 4K/ 5 CH 1080p
  • Compression H.265+/H.265/H.264+/H.264
  • Audio
  • Outputs 4K HDMI & VGA
  • IP Dual Stream Access
  • Mouse
  • Space for 1 HDD
  • WEB, CMS and Smartphone interface
  • ONVIF Compatible

Features

  • NVR for IP cameras
  • 4 CH video PoE+ 50W / Compression H.265+
  • Maximum resolution 8.0 Mpx
  • Bandwidth 40 Mbps
  • Outputs 4K HDMI & VGA
  • Supports 1 hard disk

Specs

BrandSafire
Inputs for IP camerasLAN port up to 4 PoE channels
Power over Ethernet4 (Max. 50W)
IP compatible camerasSAFIRE (native protocol), ONVIF
Bidirectional audio1 input / 1 RCA output
Video outputs1 HDMI 4K, 1 VGA
Video compression formatH.265+ / H.265 / H.264+ / H.264
Display resolution3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768
Total bandwidth40 Mbps downstream / 80 Mbps upstream
Main Stream recording8MP/6MP/5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Simultaneous multifunctionPentaplex: Live, Recording, Playback, Backup and Remote Access
AlarmsNo
Recording methodManual, programmed, motion detection
External BackupUSB memory / HDD USB / CD-RW USB / DVR-RW USB
Internal memory1 SATA HDD 3.5" of up to 6 TB (not included)
Communication1 x USB 2.0 (front) / 1 x USB 2.0 / 1 x RJ45 (Ethernet)
Remote accessWeb browser, Safire Control Center Smartphone App and PC Software
PowerDC 48V / 1.35A
Dimensions / Weight48 (H) x 320 (W) x 240 (D) mm / 0.9 Kg

Package content

  • Recorder SAFIRE NVR
  • Mouse
  • Ethernet Cable
  • Power supply cable
  • CD with manual and software

Data sheet

Power
DC 48V / 1.35A
Dimensions / Weight
48 (H) x 320 (W) x 240 (D) mm / 0.9 Kg
Communication
1 x USB 2.0 (front) / 1 x USB 2.0 / 1 x RJ45 (Ethernet)
Inputs for IP cameras
LAN port up to 4 PoE channels
IP compatible cameras
SAFIRE (native protocol), ONVIF
Bidirectional audio
1 input / 1 RCA output
Video compression format
H.265+ / H.265 / H.264+ / H.264
Display resolution
3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768
Total bandwidth
40 Mbps downstream / 80 Mbps upstream
Main Stream recording
8MP/6MP/5MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Simultaneous multifunction
Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms
No
Recording method
Manual, programmed, motion detection
External Backup
USB memory / HDD USB / CD-RW USB / DVR-RW USB
Internal memory
1 SATA HDD 3.5\" of up to 6 TB (not included)
Remote access
Web browser, Safire Control Center Smartphone App and PC Software
Video outputs
1 HDMI 4K, 1 VGA
Power over Ethernet
4 (Max. 50W)
