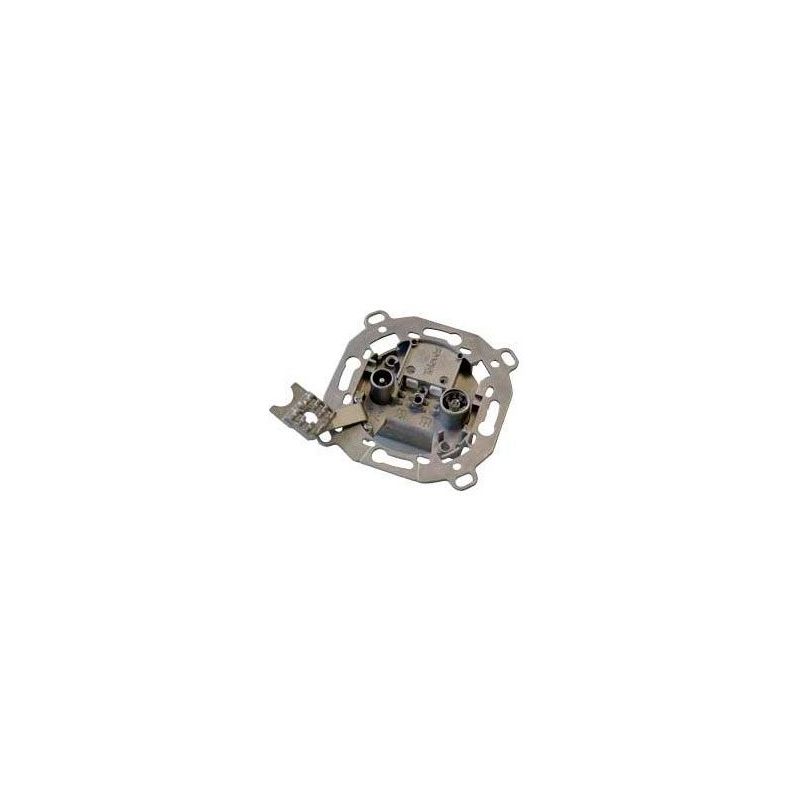

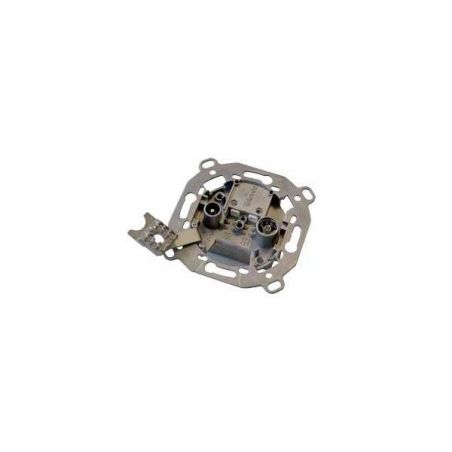

FM-TV 4 dB end outlet Low losses 5-862 MHz
TOMA TERMINAL TV-FM 4,5-18dB
€82.89
Tax included
Reference
televes-5230
Brand
Televes
FM-TV 4 dB end outlet Low losses 5-862 MHz
€82.89
Features
The sockets and junction boxes incorporate a new flange model whose main advantage is to facilitate the visualization of the connection in locations where the socket is close to the ground.
The live tightening design has been improved to meet cable operators' specifications. With this improvement, the pressure system would meet the following specifications:
For a minicable of 4.4 mm of total diameter, the supported weight would be:
- Greater than 4 kg with live and mesh fastening.
- Greater than 2 kg with only live support.
For a type T100 cable, the supported weight would be:
- Greater than 12 kg with live fastening and mesh.
- Greater than 5 kg with only live support.
Shield indication is entered in the chassis.
Specs
| Reference |
Losses (dB ) | |||||||
| Tap losses | Insertion losses | DC current through | ||||||
| Band | Ret./BI | FM | VHF | UHF | ||||
| MHz | 5...68 | 87.5...108 | 109...470 | 470...862 470...790 |
5... 862 | |||
| 5230 | TV | 4,5 | - | NO | ||||
| FM | 18 | |||||||
