Coaxial Cable CXT1 Cu + Ac / Al PVC Class A BL.100m
CABLE COAX.CXT1 Cu+Ac/Al PVC A BL.100m
€0.48
Tax included
Reference
televes-2127
Brand
Televes

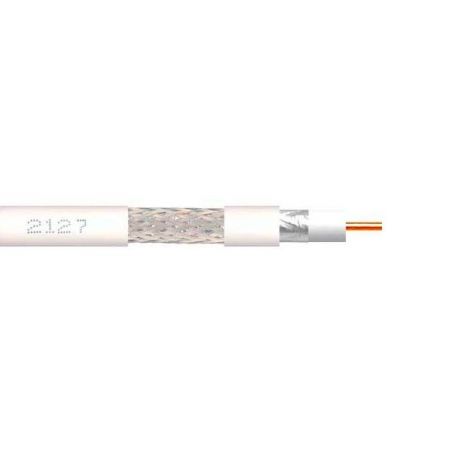

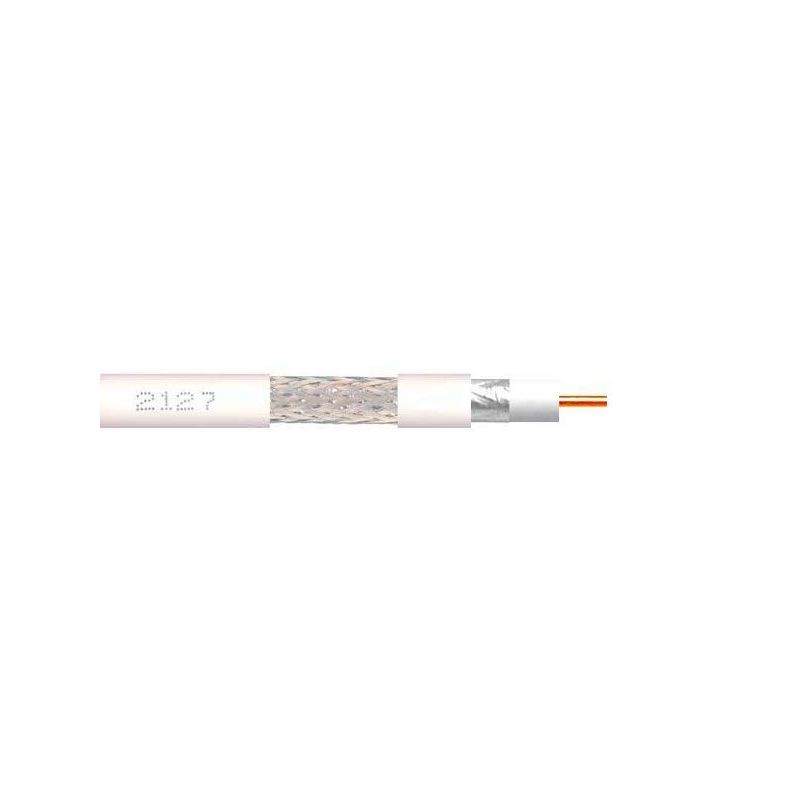

Coaxial Cable CXT1 Cu + Ac / Al PVC Class A BL.100m
€0.48
| Reference | 2127 | ||
| INNER CONDUCTOR - BRAID COMPOSITION | CCS (copper-clad steel) - ALUMINIUM | ||
| Televes Model | CXT-1 | ||
| Inner conductor | Ø | mm | 1 |
| material | - | CCS (copper-clad steel) | |
| resistance | Ω/Km | <120 | |
| Dielectric | Ø | mm | 4,7 |
| material | - | Foam Polyethylene | |
| Overlapping shielding foil | composition | Aluminium +Polyester+Aluminium | |
| Braid | resistance | Ω/Km | <30 |
| material | - | Aluminium | |
| Antimigrating film | No | ||
| Petrol jelly | No | ||
| Outer sheath | Ø | mm | 6,7 |
| color | - | White | |
| material | - | PVC | |
| Minimum bending radius | mm | 33,5 | |
| Screening efficiency | dB | >75 | |
| Capacitance | pF/m | 54 | |
| Environmental use | Indoor | ||
| Packaging | meters/reel | m | 100 |
| Frequency Attenuation (MHz) |
200 | dB/m | 0,09 |
| 500 | 0,15 | ||
| 800 | 0,20 | ||
| 1000 | 0,23 | ||
| 1350 | 0,27 | ||
| 1750 | 0,32 | ||
| 2050 | 0,35 | ||
| 2300 | 0,37 | ||
