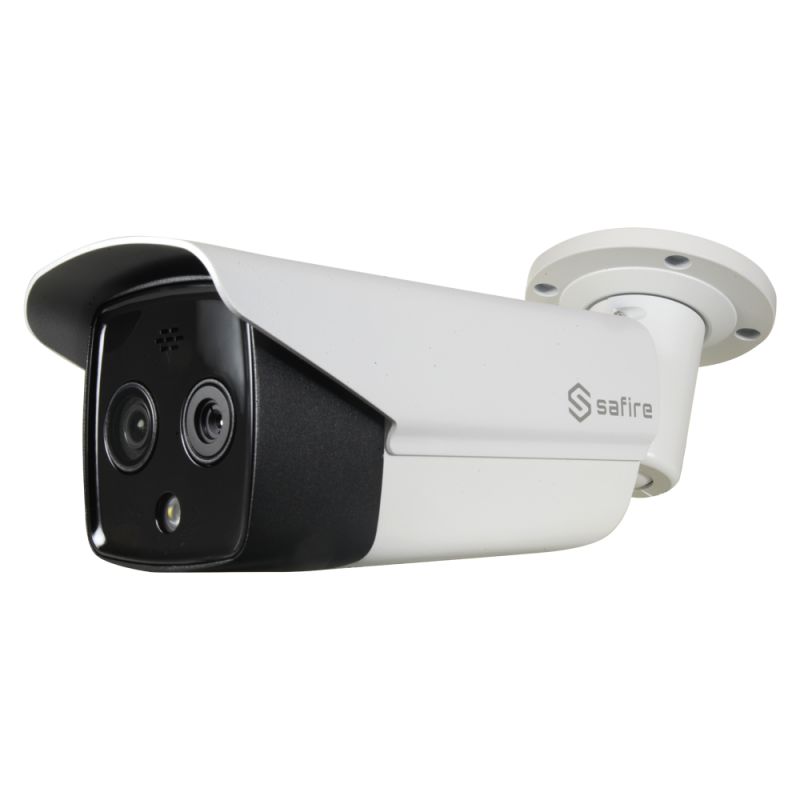

Safire SF-IPTB012DA-3D4-256 - Safire Dual IP thermal camera, 256x192 VOx | 3.1mm…
Safire Dual IP thermal camera - 256x192 VOx | 3.1mm Lens - Optical sensor 1/2.7” 4 MP | Lens 4mm - Thermal sensitivity ? 40mK - Fire detection and alarm - Temperature measurement range -20~150ºC / ± 8ºC
€471.90
€726.00
Save 35%
Tax included
Reference
SF-IPTB012DA-3D4-256
Brand
Safire
Safire SF-IPTB012DA-3D4-256 - Safire Dual IP thermal camera, 256x192 VOx | 3.1mm…
€471.90
€726.00
Save 35%
You might also like
- Safire
- Thermal Bullet Dual IP Camera
- Thermal sensor 256x192 Vox
- Lens 3.1 mm (thermal)
- Temperature measurement range -20º C~150º C (±8ºC)
- Thermal sensitivity < 40mK
- Optical sensor 1/2.7” Progressive CMOS
- 4 Megapixel (2688x1520)
- Lens 4 mm (optical)
- Colour 0.0176 Lux / B&W 0.0035 Lux
- WDR
- IR Range 15m
- H.265 / H.264 -RJ-45 10/100 BaseT
- PoE IEEE802.3af
- Audio
- Alarms
- Fire detection and alarm
- SD card recording
- WEB interface, Safire Control Center, Smartphone and NVR
- ONVIF Compatible
- Weatherproof IP67
Features
- Safire Dual IP thermal camera
- 256x192 VOx | 3.1mm Lens
- Optical sensor 1/2.7” 4 MP | Lens 4mm
- Thermal sensitivity ? 40mK
- Fire detection and alarm
- Temperature measurement range -20~150ºC / ± 8ºC
Specs
| Brand | Safire |
| Thermal sensor | 256x192 Vanadium Oxide |
| Optical sensor | 1/2.7” Progressive Scan CMOS 4 Megapixel |
| Main Stream rate | 1280 × 720, 704 × 576, 640 × 512, 320 × 240 (1~25FPS) Thermal 2688 × 1520, 1920 × 1080, 1280 × 720) (1~25FPS) Optical |
| Extra Stream rate | 704 × 576, 640 × 512, 320 × 240 (1~25FPS) [%VAR%] Thermal 704 x 576, 352 x 288 (1~25FPS) [%VAR%] Optical |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 3.1 mm (Therm) / 4 mm (Opt) |
| Range performance | Human: 150 (Detection) / 38 (Recognition) / 19 (Identification) m Vehicle: 460 (Detection) / 112 (Recognition) / 56 (Identification) m |
| VCA ranges | Human: 28.4m Vehicle: 75.6 m Tº measurement (0.2x0.2m): 11.7 m Tº measurement (1x1m): 58.3 m |
| Viewing angle | 50°×37.3° (Term) / 84° × 43.1° (Opt) |
| Thermal sensitivity | < 40mK (0.05 º C) |
| Thermal measurement range | -20 ~150 º C / ± 8 º C |
| Spectral range | 8~14μm |
| Pitch detector | 12μm |
| VCA | Up to 8 VCA rules (linecrossing, intrusion, entry and exit of area) |
| Temperature rules | Up to 21 rules (10 points, 10 areas y 1 line) |
| Audio In/Out | 1/ 1 line level 600 ohm |
| Alarm In/Out | 2/2 Relay |
| Internal memory | Micro SD card up to 256GB |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF |
| Power | 12VDC, 0.5A, max.6W; PoE IEEE802.3af, 0.14~0.22A, max.6.5W |
| Temp. operation | -40º C ~ +65º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 138.3 mm (Fo) x 138.3 (An) x 123.1 (Al) mm |
| Weight | 940 g |
Package content
- Safire Thermal IP Camera
- Installation material
- User instructions
- Bracket included
Data sheet
- Weight
- 940 g
- Power
- 12VDC, 0.5A, max.6W, PoE IEEE802.3af, 0.14~0.22A, max.6.5W
- Temp. operation
- -40º C ~ +65º C
- Degree of protection
- Weatherproof IP67
- Dimensions
- 138.3 mm (Fo) x 138.3 (An) x 123.1 (Al) mm
- Lens
- 3.1 mm (Therm) / 4 mm (Opt)
- Viewing angle
- 50°×37.3° (Term) / 84° × 43.1° (Opt)
- Internal memory
- Micro SD card up to 256GB
- Remote access
- WEB, CMS (DSS/PSS), Smartphone and NVR interface
- Main Stream rate
- 1280 × 720, 704 × 576, 640 × 512, 320 × 240 (1~25FPS) Thermal 2688 × 1520, 1920 × 1080, 1280 × 720) (1~25FPS) Optical
- Extra Stream rate
- 704 × 576, 640 × 512, 320 × 240 (1~25FPS) [%VAR%] Thermal 704 x 576, 352 x 288 (1~25FPS) [%VAR%] Optical
- Compression
- H.265 / H.264 / MJPEG
- Network interface
- Ethernet 10/100 BaseT
- Interoperability
- ONVIF
- Thermal sensor
- 256x192 Vanadium Oxide
- Optical sensor
- 1/2.7” Progressive Scan CMOS 4 Megapixel
- Range performance
- Human: 150 (Detection) / 38 (Recognition) / 19 (Identification) m Vehicle: 460 (Detection) / 112 (Recognition) / 56 (Identification) m
- VCA ranges
- Human: 28.4m Vehicle: 75.6 m Tº measurement (0.2x0.2m): 11.7 m Tº measurement (1x1m): 58.3 m
- Thermal sensitivity
- ≤ 40mK (0.05 º C)
- Thermal measurement range
- -20 ~150 º C / ± 8 º C
- Spectral range
- 8~14μm
- Pitch detector
- 12μm
- VCA
- Up to 8 VCA rules (linecrossing, intrusion, entry and exit of area)
- Temperature rules
- Up to 21 rules (10 points, 10 areas y 1 line)
- Audio In/Out
- 1/ 1 line level 600 ohm
- Alarm In/Out
- 2/2 Relay
Safire Dual IP thermal camera - 256x192 VOx | 3.1mm Lens - Optical sensor 1/2.7” 4 MP | Lens 4mm - Thermal sensitivity ? 40mK - Fire detection and alarm - Temperature measurement range -20~150ºC / ± 8ºC
