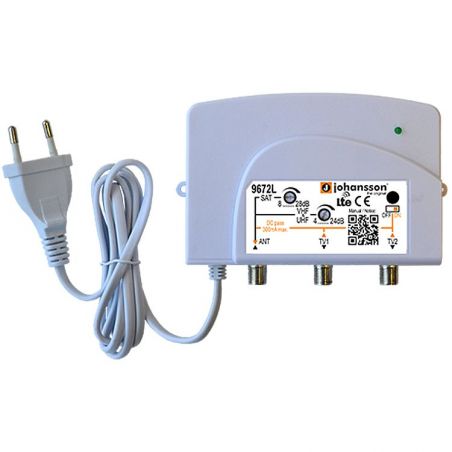

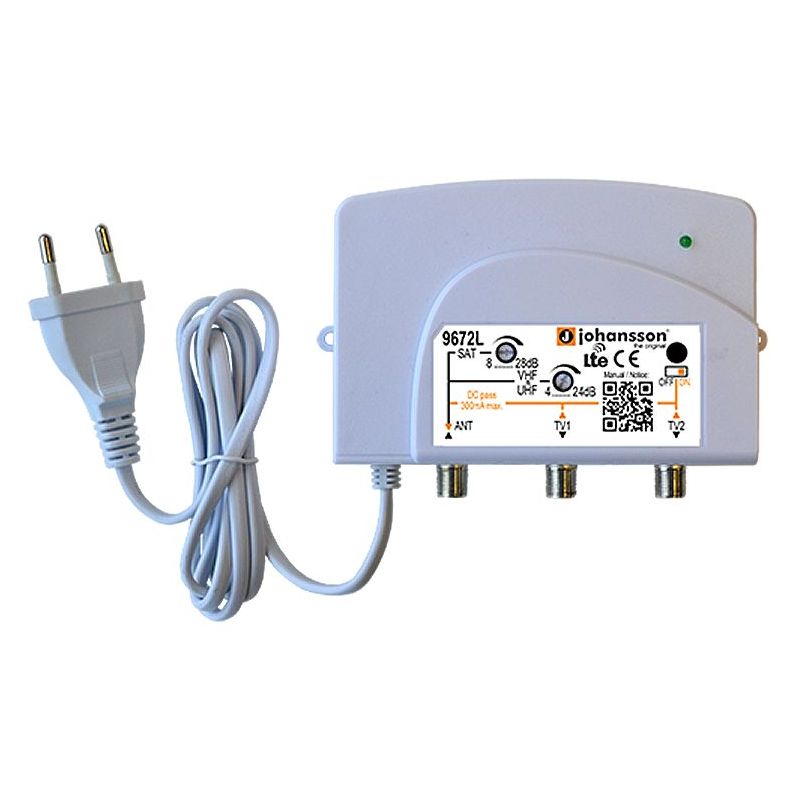

Johansson 9672L Housing Amplifier 1 input - 2 outputs

User amplifier (TER - SAT) 2 Johansson outputs. 1 input - 2 outputs. Frequency: 47… 790MHz / 950… 2150MHz. Gain: 24dB (TER) / 28dB (SAT)

€40.01 €59.71 Save 33%
Tax included
Reference johansson-9672L
Brand Johansson
Quantity
Available in 24/48h

Free shipping

Johansson 9672L Housing Amplifier 1 input - 2 outputs

€40.01 €59.71 Save 33%

Characteristics

  • User amplifier (TER - SAT) 2 Johansson outputs
  • 1 input - 2 outputs
  • Frequency: 47… 790MHz / 950… 2150MHz
  • Adjustable gain
  • Gain: 24dB (TER) / 28dB (SAT)
  • LTE (4G) compatible
  • Fixed slope on satellite
  • DC current pass: switchable
  • Universal power input: 85-240V

Specifications

Model 9672L
Departure - two
Frequency range MHz 47 - 790/950 2150
Adjustable gain dB

Ter .: 4 - 24

Sat .: 8 - 28
Slope adjustment dB 8, fixed
Noise figure dB

Ter .: 4

Sat .: 7
Output level max. dBµV 108
Source feed - 85-240 VAC / 50-60 Hz / 7 VA
DC current pass - switchable
Dimensions mm 137 x 92 x 42
