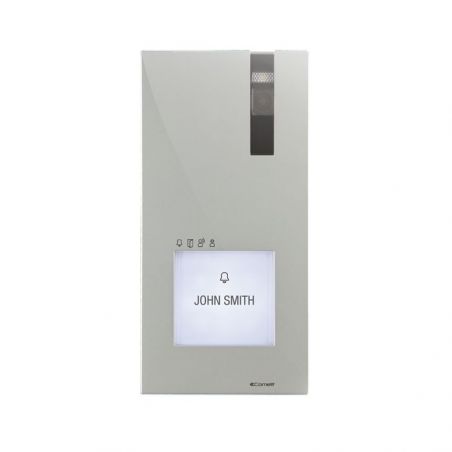

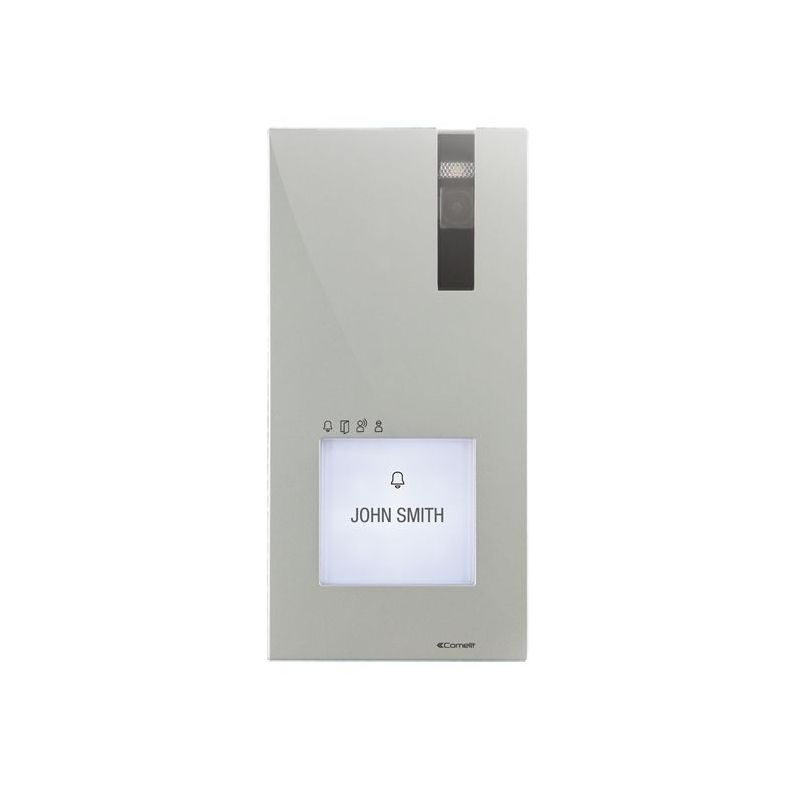

2-wire video external board Comelit
Quadra series outdoor video doorphone. Die-cast aluminum front, wide-angle color camera and LED for night illumination. Capacitive keys with the possibility to configure from 1 to 4 keys of call by means of DIP-switch. Signaling LEDs for sent call, opener activated, audio activated and installation occupied. Adjusting the speaker volume and audio balance. Power supply via bus line.
€608.35
Tax included
Reference
comelit-4893
Brand
Comelit
2-wire video external board Comelit
€608.35
Quadra series wall-mounted external video entry unit. Die-cast aluminium faceplate, wide-angle colour camera and a single LED for nighttime lighting. Capacitive buttons with possibility to set from 1 to 4 call buttons using dip switches. Indicator LED for call sent, lock-release activated, audio activated and system busy. Adjustment of speaker volume and audio balance. Power supply from bus line. External unit dimensions: 95x195x28 mm.
Specifications
| Type | Monoblock entrance panel |
| Type of finish | Alluminio pressofuso |
| Audio/video system | Yes |
| Wall-mounted | Yes |
| Camera | Colors |
| Diagonal viewing angle (°) | 100 |
| Type of sensor | 1/4" CMOS |
| Minimum colour illumination (lux) | 1 |
| Lens size (mm) | 2,1 |
| Power supply | Bus |
| Maximum current absorption (mA) | 250 |
| Clamps | LL RTE COM DO SE- SE+C NC NO |
| Buttons to call | Yes |
| Total buttons | 4 |
| Microphone volume control | Yes |
| Loudspeaker volume control | Yes |
| Operating temperature (°C) | -25 ÷ 55 |
| IP protection rating | IP54 |
| Vandal Resistant rating (IK code) | IK08 |
| Backlighting color | White |
| HARDWARE SPECIFICATIONS | |
| Visual signalling | Yes |
| Acoustic signalling | Yes |
| GENERAL DATA | |
| Product height (mm) | 195 |
| Product width (mm) | 95 |
| Product depth (mm) | 28 |
| COMPATIBILITY | |
| Kit audio/video system | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Door release (dry contact bridge) | Sì |
