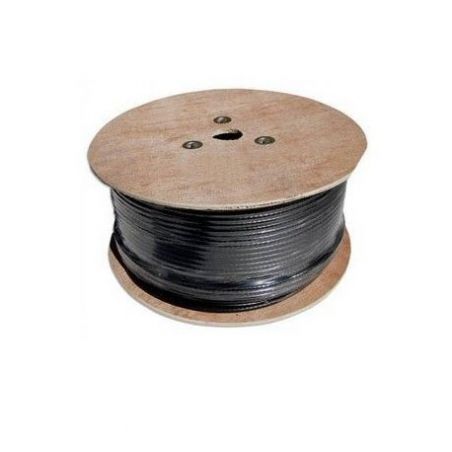

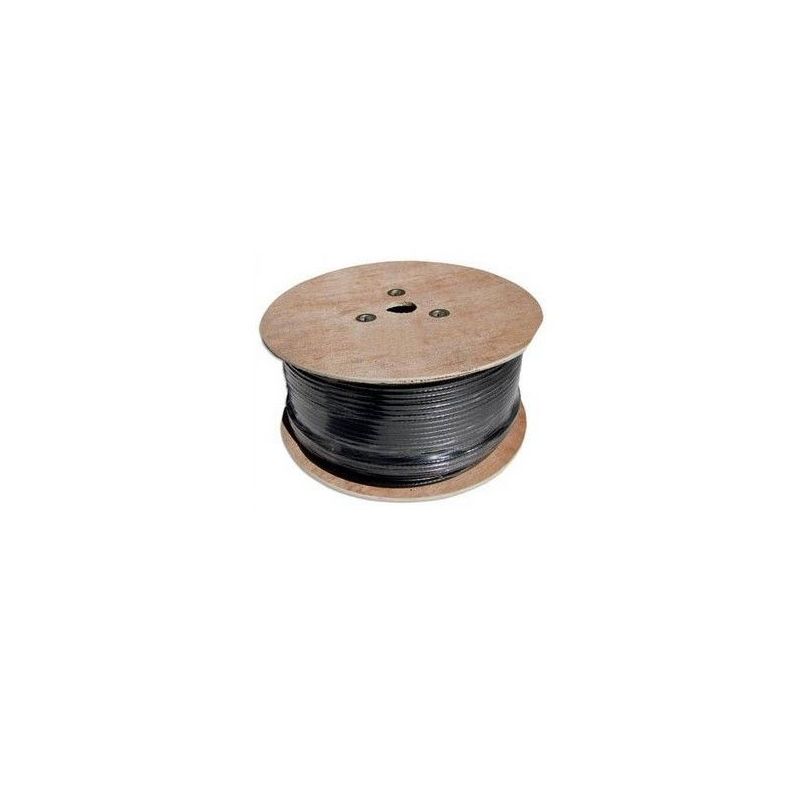

RG11 copper backbone coaxial bobbin
Cable made of physical expansion that provides a slow aging, isolates moisture, ensures the driver's tightness and a stable attenuation up to 2 GHz, low attenuation in UHF and FI, complies with the EN-50117-I standard; of 250 meters in black color;
€484.00
Tax included
Reference
AMP908
Brand
AMP
RG11 copper backbone coaxial bobbin
€484.00
Features
- Cable made with a frosted insulation that provides slow aging, even moisture, ensures driver tightness and stable attenuation up to 2 GHz
- Low attenuation in UHF and FI
- Meets EN-50117-I
- Presentation on a 250 meter wooden coil in black
Specifications
| AMP908 | ||
| PHYSICAL CHARACTERISTICS | ||
| Internal driver | Diameter | 1.63 mm |
| Composition | Copper | |
| Diel &cbsp; | Diameter | 7.1 mm |
| Type | Physical | |
| Composition | PEE | |
| Display | Line | 100% |
| Composition | Copper-Polymer | |
| Mesh | Thickness | 10 mm |
| Composition | Copper | |
| Coverage | 112 threads (50%) | |
| Cover | Diameter | 10.10 mm < + > 0.1 mm |
| Composition | PE | |
| TECHNICAL CHARACTERISTICS | ||
| Impedance | 75 ± 3 Ohm | |
| Capacity | 55 pF / m | |
| Propagation speed | 81% | |
| Attenuation at 20 | 100 MHz | 3.91 dB / 100m |
| 200 MHz | 3.55 dB / 100m | |
| 470 MHz | 8.6 dB / 100m | |
| 800 MHz | 11.05 dB / 100m | |
| 860 MHz | 11.79 dB / 100m | |
| 1000 MHz | 13.42 dB / 100m | |
| 1750 MHz | 18.5 dB / 100m | |
| 2150 MHz | 19.8 dB / 100m | |
| Loss of reflexes | 34-460MHz | ˃23 dB |
| 460-1000MHz | ˃20 dB | |
| 1000-2150MHz | ˃18 dB | |
