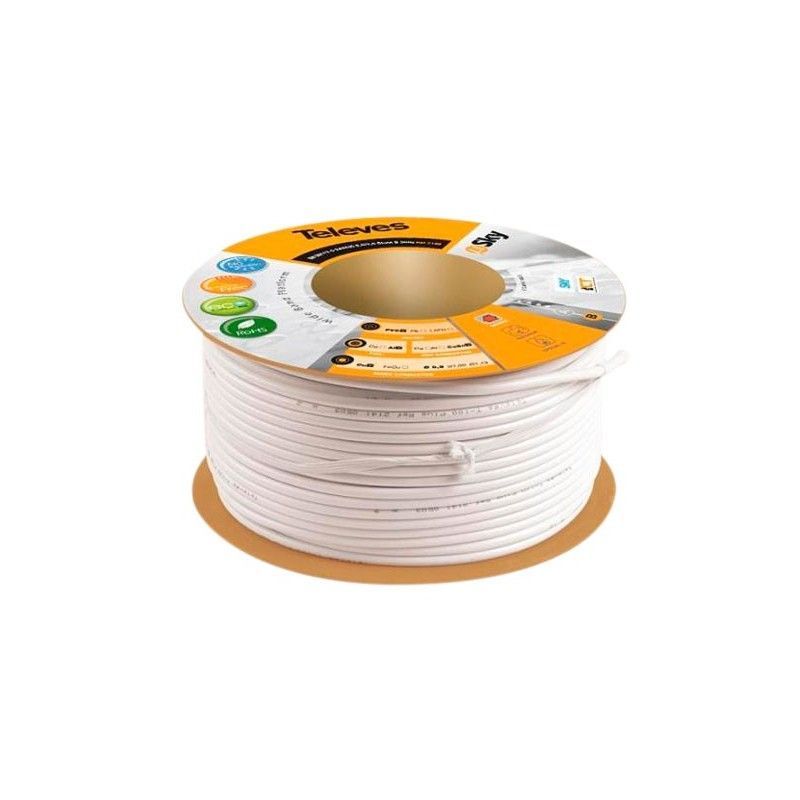

Coaxial cable CXT-60 PVC 250m
Coax cable CXT60 Cu + Ac / Al PVC A BL.250m
€0.50
Tax included
Reference
televes-210202
Brand
Televes
Coaxial cable CXT-60 PVC 250m
€0.50
CENTRAL CONDUCTOR CU + AC / MALLA AL - CLASS A (Special ICT-2 / Exclusive Annex II)
Coaxial cable specifically designed to meet the requirements of Annex II of the Regulation of Common Telecommunications Infrastructures.
The same, it fulfills the requested characteristics for the installation of coaxial cable, in the section of Operator.
Specifications
| Reference | 210202 | ||
| Type | Class A CXT-60 (ICT-2) |
||
| Center conductor | Ø | mm | 1.00 |
| Material | Ac + Cu | ||
| Ohmic Res. | ohm / Km | & lt; 95 | |
| Dielectric | Ø | mm | 4.7 |
| Material | PEE | ||
| Inside sheet | Material |
A |
|
| Mesh | Ohmic Res. | ohm / Km | & lt; 30 |
| Material | Al | ||
| Non-slip sheet | No | ||
| Petro-Gel | No | ||
| Exterior coverage | Ø | mm | 6.9 |
| Color | White | ||
| Material | PVC | ||
| Minimum bend radius | mm | 34.5 | |
| Shielding | dB | & gt; 85 | |
| Capacity | pF / m | 54 | |
| Impedance | Ohms | 75 | |
| Propagation speed | % | 82 | |
| Packaging | m / spool | 250 | |
| Attenuations | |||
| Frequency | 200 | MHz | 0.09 |
| 500 | 0.15 | ||
| 800 | 0.19 | ||
| 1000 | 0.21 | ||
| 1350 | 0.25 | ||
| 1750 | 0.29 | ||
| 2050 | 0.32 | ||
| 2300 | 0.34 | ||
