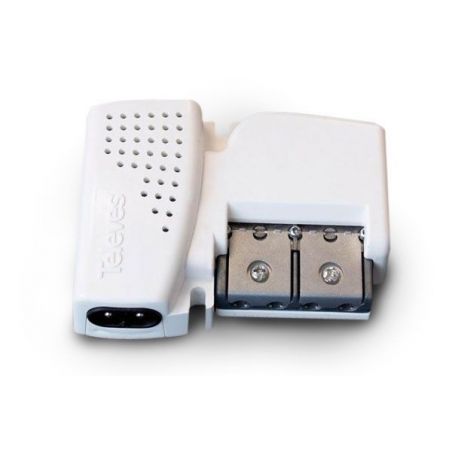

1In/2 Out 47...790MHz w/Self-adjustment 790 version” Televes
AMP.VIV.2S 47..790MHz G10/20dB AUT.AJU.+DC. It does not need adjustment. It incorporates an advanced system that automatically adjusts the output level to the appropriate value, without affecting the quality of the signal. Versions with or without LTE protection. DC step ON / OFF switch (preamplifier feed).
€55.72
Tax included
Reference
televes-560542
Brand
Televes
1In/2 Out 47...790MHz w/Self-adjustment 790 version” Televes
€55.72
Plug&Play series for home use.
Features
- No need of gain adjustment. The product includes an advanced system that automatically adjusts the gain for optimal output level.
- Different products including LTE filter in “790 version”.
- ON/OFF switch to activate DC power to the input (for preamplifiers).
- Aesthetic design and small size (86x65x26 mm). Fits into 100x100 mm connection boxes.
- Possibility of being fixed to the wall.
- EasyF connection. Complies with the maximum bending radius of the coaxial cable.
Specifications
| Reference | 560542 | |||
| Number of outputs | 2 | |||
| Bands | UHF | VHF | ||
| Frequency range | MHz | 470-862 | 47-400 | |
| Gain | Output | dB | 20 | 10 |
| TV | - | - | ||
| Output level DIN45004B | dBμV | 105 | 100 | |
| AGC range | dB | 0-20 | ||
| Output level (10 chTDT) | dBμV | 92 | 88 | |
| Noise figure | dB | 4.5 | 5 | |
| DC power through input | Vdc | 12 | ||
| Max current though input | mA | 150 | ||
| Power consumption AC | W | 3,7 | ||
| Protection index | IP | 20 | ||
| Dimensions (Wid x Hei x Dep) | mm | 86 x 65 x 26 | ||
