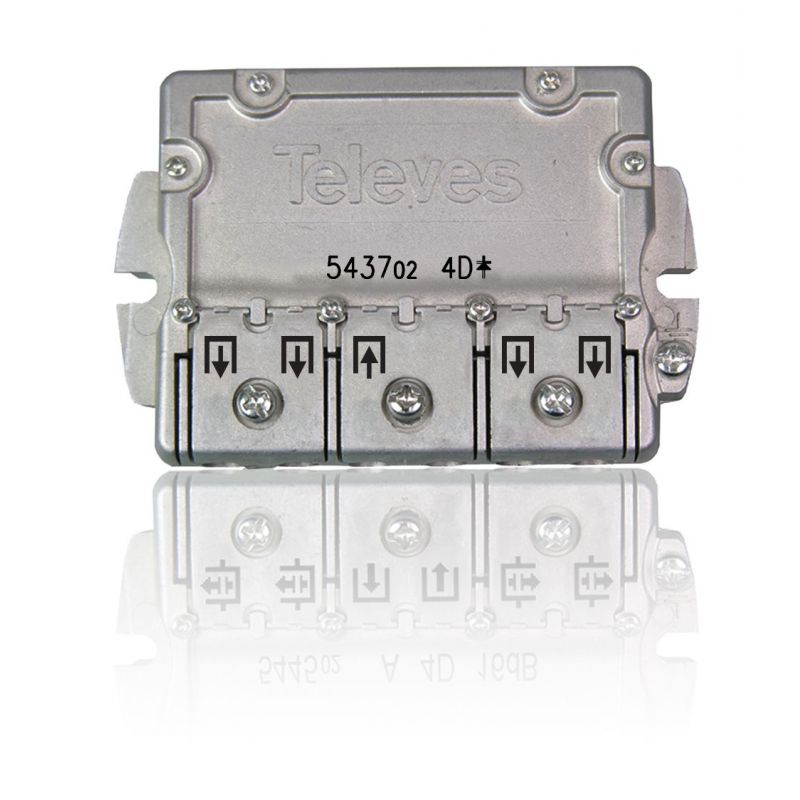

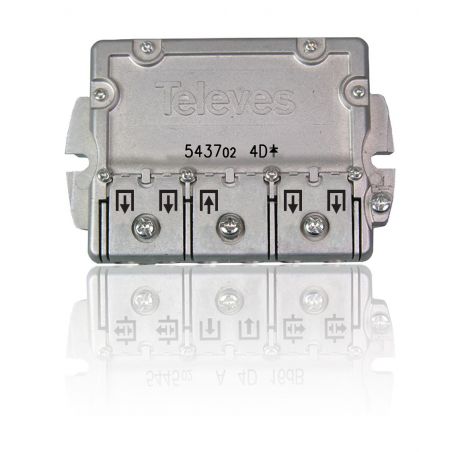

5-2400 MHz 4 Ways 7.5/9.5 dB Televes
Internal splitter with easyF flange connection system that combines the advantages of the flange and the F connector in a single type of connection that saves connection time and money to the installer. See mechanical details.
€15.80
Tax included
Reference
televes-543702
Brand
Televes
5-2400 MHz 4 Ways 7.5/9.5 dB Televes
€15.80
Internal splitter with easyF flange connection system that combines the advantages of the flange and the F connector in a single type of connection that saves connection time and money to the installer. See mechanical details.
The use of this type of connection saves more than 50% in the time of installation, also providing a secure and secure connection and complying with the most demanding standards of electromagnetic compatibility.
Specifications
| Reference | 543702 | |||
| Nº of outputs | nº | 4 | ||
| Frequency range | MATV | IF SAT | ||
| Insertion loss In ->Out 1...8 | 1 | dB | 9 | 7,5 |
| 2 | 9 | 7,5 | ||
| 3 | 9 | 7,5 | ||
| 4 | 9 | 7,5 | ||
| 5 | - | - | ||
| 6 | - | - | ||
| 7 | - | - | ||
| 8 | - | - | ||
| Output rejection | dB | > 17 | > 15 | |
| Max current Out-In | mA | 300 | ||
| Max voltage | Vdc | 40 | ||
| Dimensions (Wid x Hei x Dep) | mm | 69×55×15 | ||
| Weight | gr | 166 | ||
