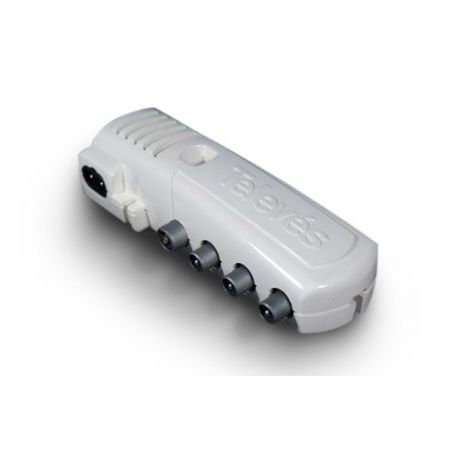

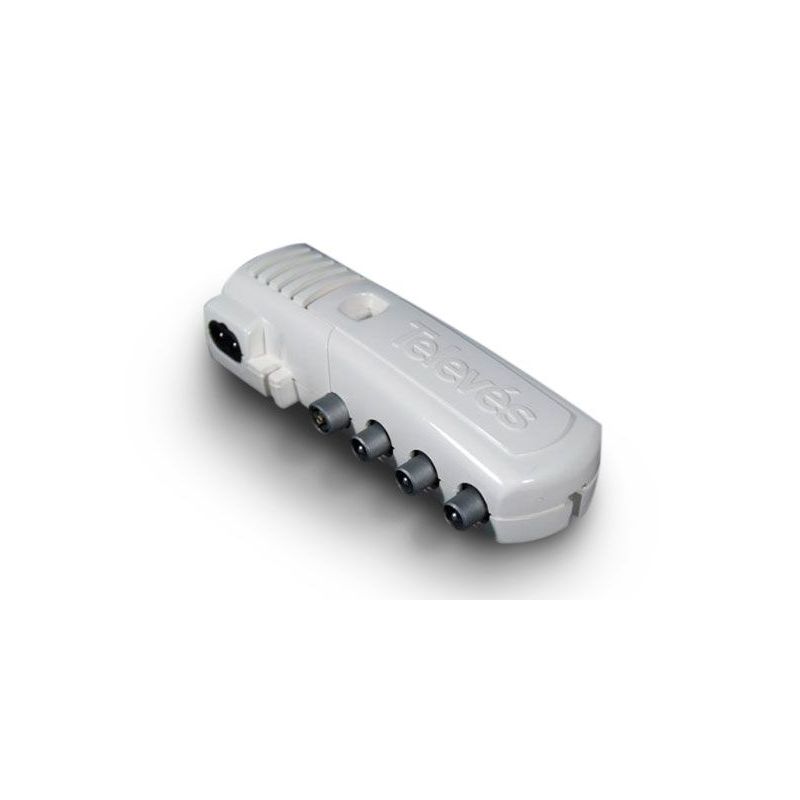

housing amplifier 2 outputs +TV 47-790MHz G.20dB 106 dBuV LTE Televes
Domestic amplifiers for MATV applications, featuring high power and low consumption.,Fully automatic production.,50% lower power consumption than an standard amplifier.,Low noise figure.,Adjustable gain.,Up to 5 outputs.,LTE ready.,Blister.
€52.71
Tax included
Reference
televes-552840
Brand
Televes
housing amplifier 2 outputs +TV 47-790MHz G.20dB 106 dBuV LTE Televes
€52.71
Domestic amplifiers for MATV applications, featuring high power and low consumption.
Features
- Fully automatic production.
- 50% lower power consumption than an standard amplifier.
- Low noise figure.
- Adjustable gain.
- Up to 5 outputs.
- LTE ready.
- Blister.
Specifications
| Reference | 552240 | ||
| Outputs | 3 (2 + TV) | ||
| Frequency range | MHz | 47-790 | |
| Gain | Output | dB |
20 |
| TV | 12 | ||
| Gain adjustment | 15 | ||
| Output level DIN45004B | dBμV | 106 | |
| Noise figure | dB | 6 | |
| Power on inputs | Vdc | - | |
| Max current through inputs | mA | 100 | |
| AC Power consumption | W | 2 | |
| Protection index | IP | 20 | |
| Dimensions (Wid x Hei x Dep) | mm | 145 x 45 x 35 | |
