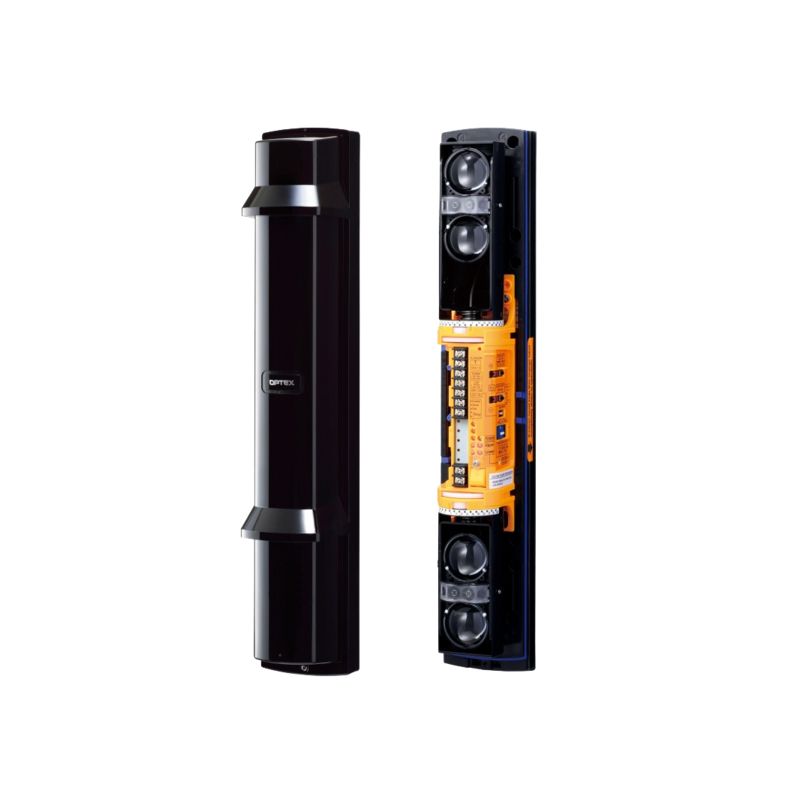

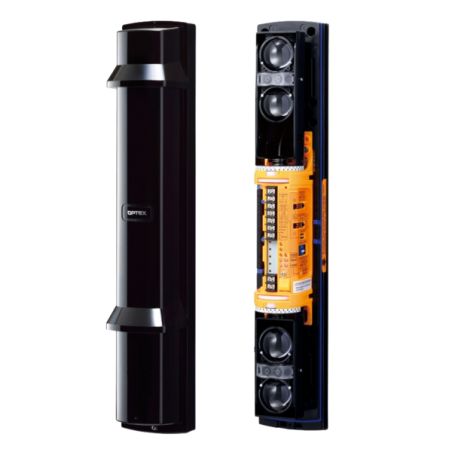

Optex SL-200QDP 4-beam infrared barrier Perimeter protection 60m Dual modulation, 4 frequencies Optex SL-200QDP
search
  • Optex SL-200QDP 4-beam infrared barrier Perimeter protection 60m Dual modulation, 4 frequencies Optex SL-200QDP

Optex SL-200QDP 4-beam infrared barrier Perimeter protection 60m Dual modulation, 4 frequencies Optex SL-200QDP

Infrared perimeter barrier 4 beams 60m Double modulation, 4 frequencies IP65 Tamper alarm AntifrostMounting on column, pole or wall. LEDs. Sound.2x magnification display. Alignment selectorAdjustable beam period. Double modulation, 4 frequencies.Upper/lower barrier selection. Barrier power…
€634.11
Tax included
Reference SL-200QDP
Brand Optex
Quantity
Last items in stock

Free shipping
Optex SL-200QDP 4-beam infrared barrier Perimeter protection 60m Dual modulation, 4 frequencies Optex SL-200QDP

Optex SL-200QDP 4-beam infrared barrier Perimeter protection 60m Dual modulation, 4 frequencies Optex SL-200QDP

€634.11

Optex SL-200QDP 4-beam infrared barrier Perimeter protection 60m Dual modulation, 4 frequencies Optex SL-200QDP

  • Infrared perimeter barrier 4 beams 60m Double modulation, 4 frequencies IP65 Tamper alarm Antifrost
  • Mounting on column, pole or wall. LEDs. Sound.
  • 2x magnification display. Alignment selector
  • Adjustable beam period. Double modulation, 4 frequencies.
  • Upper/lower barrier selection. Barrier power control
  • Protection against sunlight, reflections, interference, lightning and overvoltage.

Maximum detection range 60m
Maximum range distance 600m
Detection method Interruption of the four beams for detection
Beam frequency selection Four channels
Interruption period Variable between 50/100/250/500 ms (4 steps)
Normal Power: 10.5-30 VDC
Current consumption
Normally 10.5-30 VDC 17 mA
Optical alignment 10.5-30 VDC 21 mA
Peak 10.5-30 VDC 24 mA
Exit
Alarm output Form C relay: 30 VDC, 0.2 A
Alarm period 2sec (±)(Nominal)
DQ Output Form C Relay: 30 VDC, 0.2 A
NC tamper output (Contact output): 30VDC, 0.1 A. Opens when the cover is removed
Operating temperature -35ºC / +60ºC
Operating humidity 95% (max.)
Alignment angle ±90º Horizontal, ±10º Vertical
Dimensions H x W x D mm: 448 x 79 x 96
Weight 2500g (Total weight of transmitter + receiver, excluding accessories)
IP65 protection grade
