Lite Series is suitable for users who requires high quality monitoring products at areasonable price. It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications. This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios.

Starlight
With the adoption of large sized high performance sensor and large aperture lens, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.

Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.
* Audio input is available for some models of HDCVI cameras.

Wide Dynamic Range
With advanced Wide Dynamic Range (WDR) technology, Dahua HDCVI camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Super Adapt
Embedded with intelligent algorithm, for changing external environment, camera can automatically adjust parameters to present the optimal image, and it solves the trouble of configuration.

Advanced 3D NR
3D NR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua's advanced 3D NR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3D NR effectively decreases the band width and saves the storage space.

Smart Illumination
The camera is designed with IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua's unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera.

Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 mins.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

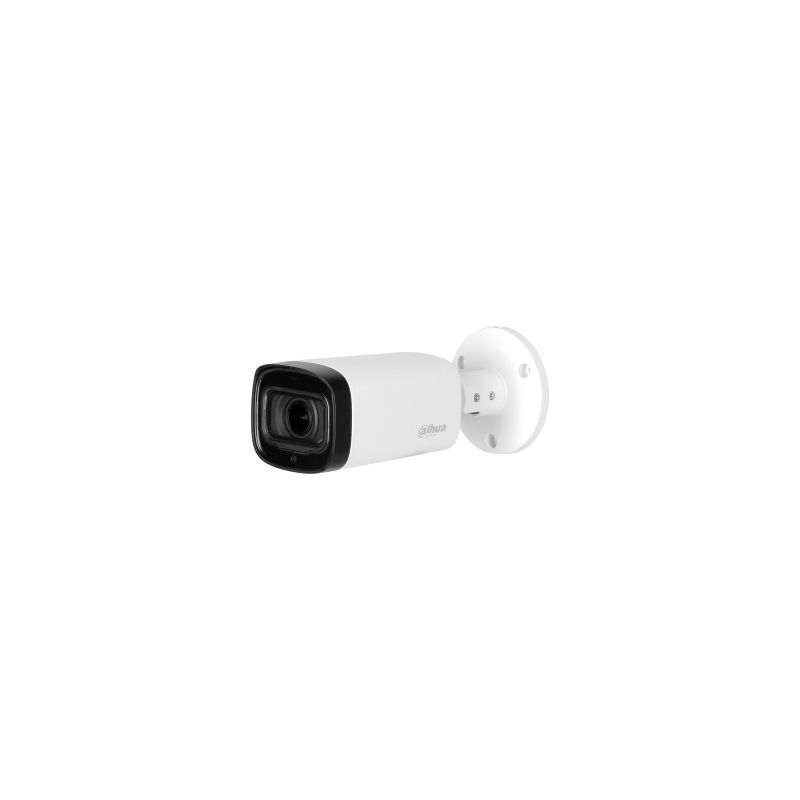

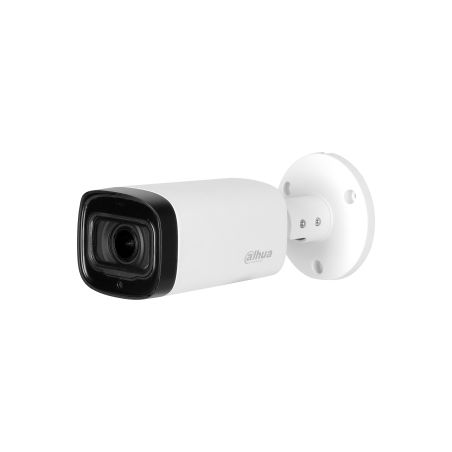

Dahua Technology Lite DH-HAC-HFW1231R-Z-A. Type: CCTV security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.002 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 102°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 132.1 m, Observe distance: 52.9 m, Recognize distance: 26.4 m

Performance
Type	CCTV security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Dynamic range	130 dB
Certification	CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368- 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Design
Form factor	Bullet
Mounting type	Ceiling/Wall/Pole
Product colour	White
Housing material	Metal
International Protection (IP) code	IP67
Camera
Minimum illumination	0.002 lx
Angle of rotation	360°
Lens viewing angle, horizontal	102°
Lens viewing angle, vertical	53°
Lens viewing angle, diagonal	123°
Tilt angle range	0 - 90°
Pan range	0 - 360°
White balance	Auto
Camera shutter type	Electronic
Camera shutter speed	1/25 - 1/100000 s
Image sensor
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes
Sensor type	CMOS
Lens system
Number of lenses	1
Detect distance	132.1 m
Observe distance	52.9 m
Recognize distance	26.4 m
Focal length range	2.7 - 12 mm
Auto focus	Yes
Focus	Motorized
Maximum aperture number	1.5
Identify distance	13.2 m
Detect distance (wide)	47.6 m
Detect distance (tele)	132.1 m
Observe distance (wide)	19 m
Observe distance (tele)	52.9 m
Recognize distance (wide)	9.5 m
Recognize distance (tele)	26.4 m
Identify distance (wide)	4.76 m
Identify distance (tele)	13.2 m
Closest focusing distance	0.5 m
Night vision
Night vision	Yes
Night vision distance	80 m
LED type	IR
Number of illumination LEDs	4
Video
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Supported graphics resolutions	960 x 480, 960 x 576, 1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	30 fps
Analog signal format system	PAL
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Gain control type	Auto/Manual
Privacy masking	Yes
Back Light Compensation (BLC)	Yes
Highlight Compensation (HLC)	Yes
Smart IR	Yes
Audio
Signal-to-Noise Ratio (SNR)	65 dB
Built-in microphone	Yes
Network
Ethernet LAN	No
Wi-Fi	No
Bluetooth	No
Storage
Built-in HDD	No
Ports & interfaces
BNC output ports	1
Security
Mirror	Yes
Power
Power source type	DC
Power consumption (max)	9.4 W
DC output voltage	12
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Width	209.6 mm
Depth	90.4 mm
Height	90.4 mm
Weight	550 g
Packaging data
Package weight	760 g
Packaging content
Number of cameras	1
