Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

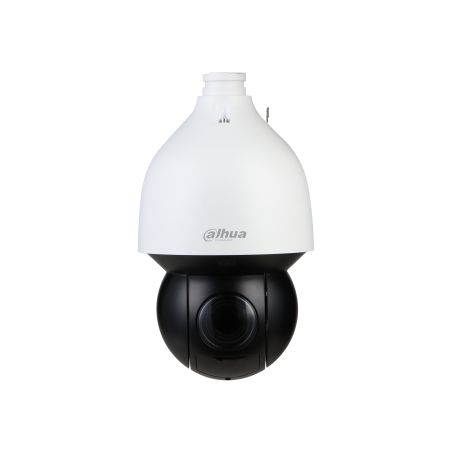

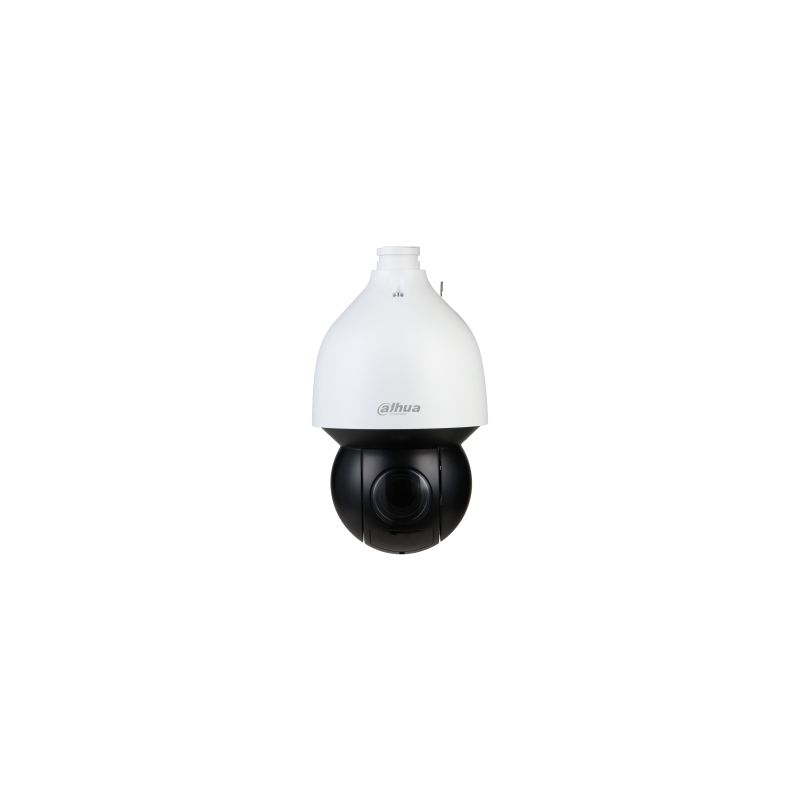

Dahua Technology WizSense DH-SD5A445GB-HNR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 1.9 - 65.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 45x, Digital zoom: 16x, Detect distance: 2451.7 m

Performance
Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ protocols	Pelco-P/D, DH-SD
Auto-tracking	Yes
Tour recording	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Certification	CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA 22.2,No.60950-1
Design
Form factor	Dome
Mounting type	Ceiling/wall
Product colour	White
International Protection (IP) code	IP67
IK code	IK10
Fog proof	Yes
Camera
Minimum illumination	0.0005 lx
Angle of rotation	360°
Lens viewing angle, horizontal	1.9 - 65.7°
Lens viewing angle, vertical	1.1 - 39.4°
Lens viewing angle, diagonal	2.1 - 73.1°
Tilt angle range	-15 - 90°
Tilt preset speed	300 °/sec
Tilt manual speed	0.1 - 120 °/sec
Pan range	0 - 360°
Pan preset speed	400 °/sec
Pan manual speed	0.1 - 300 °/sec
Auto flip	Yes
White balance	ATW, Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter type	Electronic
Camera shutter speed	1/1 - 1/30000 s
Image sensor
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes
Sensor type	CMOS
Lens system
Zoom capability	Yes
Optical zoom	45x
Digital zoom	16x
Number of lenses	1
Detect distance	2451.7 m
Observe distance	972.9 m
Recognize distance	490.3 m
Focal length range	3.95 - 177.75 mm
Maximum aperture number	4.95
Identify distance	245.2 m
Closest focusing distance	0.1 m
Night vision
Night vision	Yes
Night vision distance	150 m
LED type	IR
Number of illumination LEDs	4
Video
Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Video compression formats	H.264, H.264+, H.264B, H.265, H.265+, M-JPEG
Supported graphics resolutions	352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction, 3D noise reduction
Gain control type	Auto/Manual
Privacy masking	Yes
Image stabilizer	Yes
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate	H.264: 96 kbps–14848 kbps; H.265: 38 kbps–8960 kbps
Back Light Compensation (BLC)	Yes
Highlight Compensation (HLC)	Yes
Region of Interest (ROI) encoding	Yes
Smart IR	Yes
Audio
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Signal-to-Noise Ratio (SNR)	55 dB
Voice codecs	G.711Mu, G.711a, G.722.1, G.723, G.726, G.729, PCM
Network
Ethernet LAN	Yes
Networking standards	IEEE 802.3at
Supported network protocols	FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Wi-Fi	No
Bluetooth	No
Number of users	20 user(s)
Quality of Service (QoS) support	Yes
Streaming method	Multicast, Unicast
Storage
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Internal memory	1000 MB
ROM capacity	4000 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Security
Alarm input channels	2
Alarm output channels	1
Video motion detection	Yes
Active tampering alarm	Yes
Intelligent Video Surveillance (IVS) system features	Abandoned object, Face detection, Intrusion, Missing object, Tripwire, Vehicle detection
Management features
Web-based management	Yes
Power
Power source type	DC, PoE
Power consumption (typical)	10 W
Power consumption (max)	22 W
DC output voltage	24
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
System requirements
Mobile operating systems supported	Android, iOS
Weight & dimensions
Height	332 mm
Diameter	19 cm
Weight	4.7 kg
Packaging data
Package weight	8 kg
Packaging content
Number of cameras	1
