Hikvision IDS-2CD7A45G0-IZHS(4.7-118MM) DeepinView 4M 4.7-118mm Vandal-Proof Bullet IP Camera IR200 WDR IK10…

DeepinView 4M 4.7-118mm Vandal-Proof Bullet IP Camera IR200 WDR IK10 IP67. Audio, Alarm 1/2.5" Progressive Scan CMOS, ICR, Color: 0.009 Lux/F1.2 B/W: 0.0018 Lux /F1.6 4MP 50fps/60fps H.265+/H.265/H.264+/H.264/MJPEG， 25x optical zoom (4.7~118mm) lens with Smart Focus 140dB WDR 1*AudioOut,1*AudioIn 2*AlarmIn, 2*AlarmOut 5streams EPTZ ONVIF(G/S/T) -Y: anti-corrosion -H: heater IP67 IK10 PVC FREE…

€1,940.14

Tax included

Reference IDS-2CD7A45G0-IZHS(4.7-118MM)-v1

Brand Hikvision

Description
Product Details

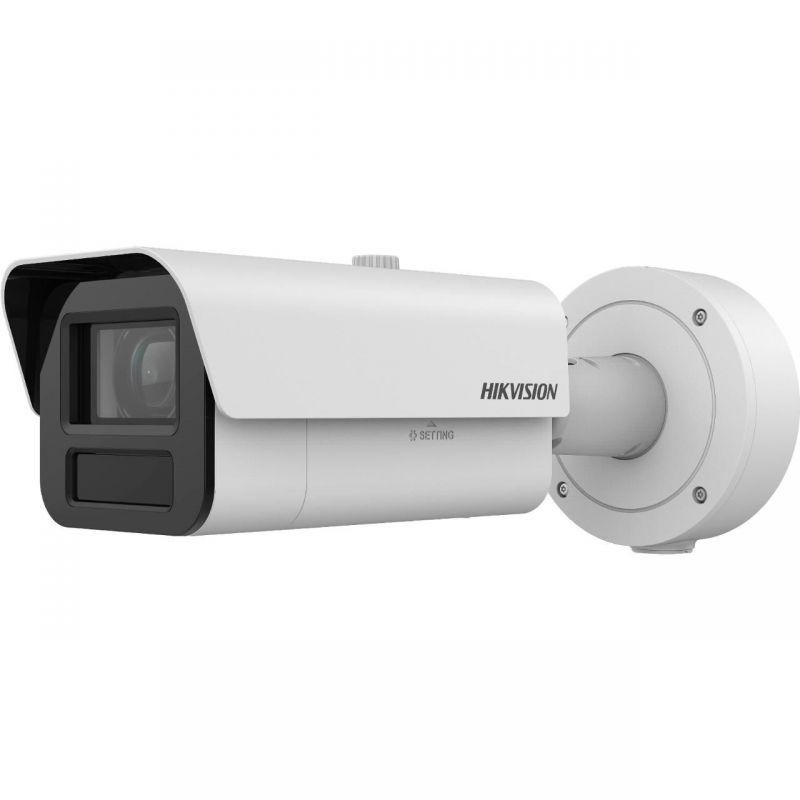

DeepinView 4M 4.7-118mm Vandal-Proof Bullet IP Camera IR200 WDR IK10 IP67. Audio, Alarm

1/2.5" Progressive Scan CMOS, ICR, Color: 0.009 Lux/F1.2 B/W: 0.0018 Lux /F1.6 4MP 50fps/60fps H.265+/H.265/H.264+/H.264/MJPEG， 25x optical zoom (4.7~118mm) lens with Smart Focus 140dB WDR 1*AudioOut,1*AudioIn 2*AlarmIn, 2*AlarmOut 5streams EPTZ ONVIF(G/S/T) -Y: anti-corrosion -H: heater IP67 IK10 PVC FREE Vibration detection Perimeter detection Face recognition Multi-target-type detection High quality imaging with 4 MP resolution Excellent low-light performance via DarkFighter technology Clear imaging against strong back light due to 140 dB WDR technology Efficient H.265+ compression technology to save bandwidth and storage 5 streams to meet a wide variety of applications Water and dust resistant (IP67) and vandal proof (IK10)

Audio

Voice codecs

AAC/G.711/G.722.1/G.726/MP2L2/PCM

Supported audio formats

MP3

Sampling frequencies

8 - 48 kHz

Bit rate range

16 - 320 Kbit/s

Signal-to-noise ratio (SNR)

52 dB

Camera

Tilt angle

0 - 90 °

Rotation angle

360 °

Angle of view of the lens, diagonal

63 - 3 °

Lens angle of view, horizontal

58 - 2.8 °

Lens angle of view, vertical

32.3 - 1.6 °

Minimum lighting

0 lx

Panoramic range (pan)

0 - 355 °

Shutter speed

1 - 1/30000 s

Design

Protection code (IP)

IP67

IK Code

IK10

Product color

White

Form factor

Bullet

Housing material

Aluminum

Protection

Waterproof

Mounting type

Ceiling/wall

Image sensor

Progressive scanning

Forks

Number of sensors

Optical sensor size

1/2.5 "

Sensor type

CMOS

Lens system

Zoom capacity

Forks

Detection distance (tele)

2200 m

Identification distance (tele)

220 m

Viewing distance (television)

873 m

Observation distance (wide)

42.1 m

Recognition distance (tele)

440 m

Recognition distance (wide)

21.2 m

Detection distance (width)

106 m

Focal distance

4.7 - 118 mm

Approach

Motorized/Manual

Autofocus

Forks

Identify distance (width)

10.6 m

Maximum opening number

3.8

Number of lenses

Minimum opening number

1.6

Optical zoom

25 x

Management features

Behavioral analysis

Intrusion detection/Line crossing detection/Object removal detection/Region entrance detection/Region exiting detection/Unattended baggage detection

Reset button

Forks

Web-based management

Forks

Browser

Forks

Network

Bluetooth

Ethernet LAN

Forks

Client interoperability

iVMS-4200, Hik-Connect, Hik-Central

User access level

Administrator/Operator/User

Number of simultaneous live viewing channels

20 channels

Number of users

32 user(s)

Supported network protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Quality of Service (QoS) support

Forks

Ethernet interface type

Fast Ethernet/Gigabit Ethernet

Live view

Forks

Wi-Fi

Night vision

Night vision distance

200 m

Infrared wavelength

850 nm

LED type

Night vision

Forks

Operational conditions

Storage relative humidity (HH)

0 - 95 %

Operating relative humidity (HH)

0 - 95 %

Storage temperature (TT)

-30 - 60 °C

Operating temperature (TT)

-40 - 60 °C

Other features

I/O ports

1x line in, 1x line out, 3.5mm

Package dimensions

Depth (package, cm)

18 cm

Gross Weight (Package, kg)

3.174 kg

Height (package,cm)

42.5 cm

Width (package,cm)

19 cm

Packaging content

Number of cameras

Performance

Wide Dynamic Range (WDR)

Forks

Alarm input/output

Forks

Infrared (IR) cut filter

Forks

Languages

Multi

Supported installation

Outdoor

Day/night mode

Forks

Number of languages

Picture overlay

24 bit

Dynamic range

140 dB

Image overlay

128 x 128 Pixels

Connectivity technology

Wired

Guy

IP security camera

Ports & interfaces

Ethernet LAN ports (RJ-45)

RS-485 ports

Composite video output

Power

Energy consumption

100 mA

Power consumption (max.)

13.48 W

Power consumption (PoE)

12.29 W

DC output current

1.13 A

Type of feed

AC/DC/PoE

AC input voltage

24 V

DC output voltage

Product dimensions

Net Weight (Product, kg)

2.13 kg

Security

Security algorithms

EAP-LEAP/EAP-MD5/EAP-TLS

Alarm input channels

Alarm output channels

HTTPS encryption

Forks

Pixel counter

Forks

Video motion detection

Forks

Mirror

Forks

IP Address Filtering

Forks

Beat

Forks

Digital watermark

Forks

Password protection

Forks

Automatic Network Replenishment (ANR)

Forks

Flash record

Forks

Password reset by email

Forks

Storage

Integrated HDD

Integrated card reader

Forks

Maximum memory card size

256 GB

Compatible memory cards

MicroSD (TransFlash)/MicroSDHC/MicroSDXC

Sustainability

Compliance certificates

REACH/RoHS/WEEE

Technical details

Sustainability certificates

REACH/RoHS/WEEE

Iris

Forks

Vendor information

Brand Name

Hikvision

Warranty

3 Year/s

Video

Image quality adjustment

Brightness/Contrast/Saturation/Sharpness

Region of interest (ROI) coding

Forks

Backlight Compensation (BLC)

Forks

Backlight Compensation (HLC)

Forks

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Image stabilizer

Forks

Video compression formats

H.264/H.264+/H.265/H.265+/M-JPEG

Privacy Mask

Forks

Total megapixels

4 MP

Maximum resolution

2680 x 1520 Pixels

Supported graphics resolutions

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/2688 x 1520/640 x 480 (VGA)/704 x 480/704 x 576

Noise reduction technology

3D noise reduction

Bit rate

32 Kbps - 8 Mbps

Frame rate

30 pps

Weight & dimensions

Diameter

14.41 cm

Length

37.52 cm
