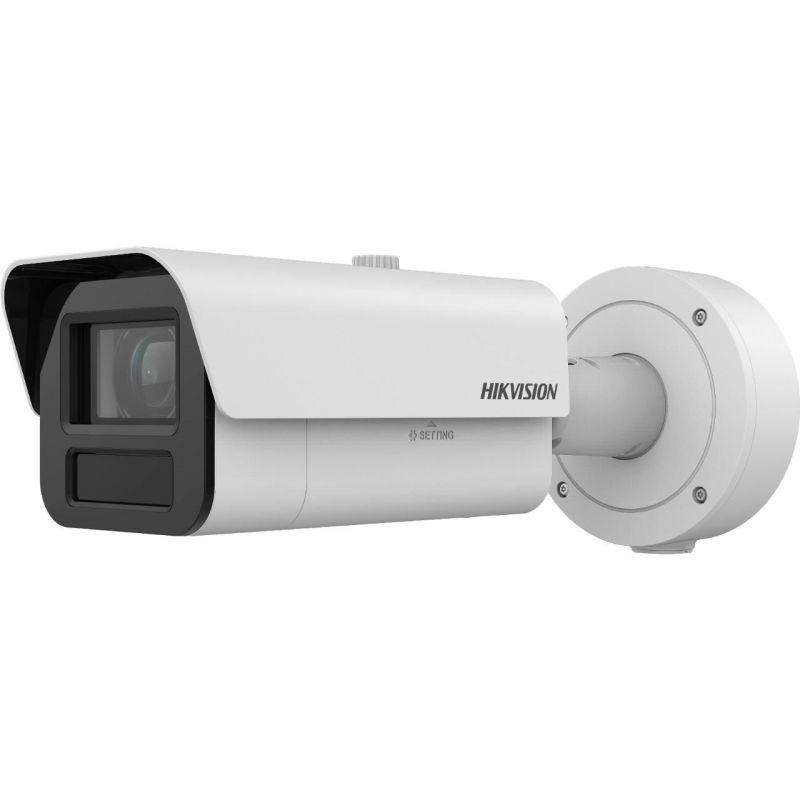

Hikvision IDS-2CD7A45G0-IZHS(4.7-118MM) DeepinView 4M 4.7-118mm Vandal-Proof Bullet IP Camera IR200 WDR IK10…

DeepinView 4M 4.7-118mm Vandal-Proof Bullet IP Camera IR200 WDR IK10 IP67. Audio, Alarm 1/2.5" Progressive Scan CMOS, ICR, Color: 0.009 Lux/F1.2 B/W: 0.0018 Lux /F1.6 4MP 50fps/60fps H.265+/H.265/H.264+/H.264/MJPEG， 25x optical zoom (4.7~118mm) lens with Smart Focus 140dB WDR 1*AudioOut,1*AudioIn 2*AlarmIn, 2*AlarmOut 5streams EPTZ ONVIF(G/S/T) -Y: anti-corrosion -H: heater IP67 IK10 PVC FREE…

€1,940.14

Tax included

Reference IDS-2CD7A45G0-IZHS(4.7-118MM)-v9

Brand Hikvision

Description
Product Details

DeepinView 4M 4.7-118mm Vandal-Proof Bullet IP Camera IR200 WDR IK10 IP67. Audio, Alarm

1/2.5" Progressive Scan CMOS, ICR, Color: 0.009 Lux/F1.2 B/W: 0.0018 Lux /F1.6 4MP 50fps/60fps H.265+/H.265/H.264+/H.264/MJPEG， 25x optical zoom (4.7~118mm) lens with Smart Focus 140dB WDR 1*AudioOut,1*AudioIn 2*AlarmIn, 2*AlarmOut 5streams EPTZ ONVIF(G/S/T) -Y: anti-corrosion -H: heater IP67 IK10 PVC FREE Vibration detection Perimeter detection Face recognition Multi-target-type detection High quality imaging with 4 MP resolution Excellent low-light performance via DarkFighter technology Clear imaging against strong back light due to 140 dB WDR technology Efficient H.265+ compression technology to save bandwidth and storage 5 streams to meet a wide variety of applications Water and dust resistant (IP67) and vandal proof (IK10)

Audio

Voice codecs	AAC/G.711/G.722.1/G.726/MP2L2/PCM
Supported audio formats	MP3
Sampling frequencies	8 - 48 kHz
Bit rate range	16 - 320 Kbit/s
Signal-to-noise ratio (SNR)	52 dB

Camera

Tilt angle	0 - 90 °
Rotation angle	360 °
Angle of view of the lens, diagonal	63 - 3 °
Lens angle of view, horizontal	58 - 2.8 °
Lens angle of view, vertical	32.3 - 1.6 °
Minimum lighting	0 lx
Panoramic range (pan)	0 - 355 °
Shutter speed	1 - 1/30000 s

Design

Protection code (IP)	IP67
IK Code	IK10
Product color	White
Form factor	Bullet
Housing material	Aluminum
Protection	Waterproof
Mounting type	Ceiling/wall

Image sensor

Progressive scanning	Forks
Number of sensors	1
Optical sensor size	1/2.5 "
Sensor type	CMOS

Lens system

Zoom capacity	Forks
Detection distance (tele)	2200 m
Identification distance (tele)	220 m
Viewing distance (television)	873 m
Observation distance (wide)	42.1 m
Recognition distance (tele)	440 m
Recognition distance (wide)	21.2 m
Detection distance (width)	106 m
Focal distance	4.7 - 118 mm
Approach	Motorized/Manual
Autofocus	Forks
Identify distance (width)	10.6 m
Maximum opening number	3.8
Number of lenses	1
Minimum opening number	1.6
Optical zoom	25 x

Management features

Behavior analysis	Intrusion detection/Line crossing detection/Object removal detection/Region entrance detection/Region exiting detection/Unattended baggage detection
Reset button	Forks
Web-based management	Forks
Browser	Forks

Network

Bluetooth	No
Ethernet LAN	Forks
Client interoperability	iVMS-4200, Hik-Connect, Hik-Central
User access level	Administrator/Operator/User
Number of simultaneous live viewing channels	20 channels
Number of users	32 user(s)
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Quality of Service (QoS) support	Forks
Ethernet interface type	Fast Ethernet/Gigabit Ethernet
Live view	Forks
Wi-Fi	No

Night vision

Night vision distance	200 m
Infrared wavelength	850 nm
LED type	GO
Night vision	Forks

Operational conditions

Storage relative humidity (HH)	0 - 95 %
Operating relative humidity (HH)	0 - 95 %
Storage temperature (TT)	-30 - 60 °C
Operating temperature (TT)	-40 - 60 °C

Other features

I/O ports

1x line in, 1x line out, 3.5mm

Package dimensions

Depth (package, cm)	18 cm
Gross Weight (Package, kg)	3.174 kg
Height (package,cm)	42.5 cm
Width (package,cm)	19 cm

Packaging content

Number of cameras

Performance

Wide Dynamic Range (WDR)	Forks
Alarm input/output	Forks
Infrared (IR) cut filter	Forks
Languages	Multi
Supported installation	Outdoor
Day/night mode	Forks
Number of languages	33
Picture overlay	24 bit
Dynamic range	140 dB
Image overlay	128 x 128 Pixels
Connectivity technology	Wired
Guy	IP security camera

Ports & interfaces

Ethernet LAN ports (RJ-45)	1
RS-485 ports	1
Composite video output	1

Power

Energy consumption	100 mA
Power consumption (max.)	13.48 W
Power consumption (PoE)	12.29 W
DC output current	1.13 A
Type of feed	AC/DC/PoE
AC input voltage	24 V
DC output voltage	12

Product dimensions

Net Weight (Product, kg)

2.13 kg

Security

Security algorithms	EAP-LEAP/EAP-MD5/EAP-TLS
Alarm input channels	2
Alarm output channels	2
HTTPS encryption	Forks
Pixel counter	Forks
Video motion detection	Forks
Mirror	Forks
IP Address Filtering	Forks
Beat	Forks
Digital watermark	Forks
Password protection	Forks
Automatic Network Replenishment (ANR)	Forks
Flash record	Forks
Password reset by email	Forks

Storage

Integrated HDD	No
Integrated card reader	Forks
Maximum memory card size	256 GB
Compatible memory cards	MicroSD (TransFlash)/MicroSDHC/MicroSDXC

Sustainability

Compliance certificates

REACH/RoHS/WEEE

Technical details

Sustainability certificates	REACH/RoHS/WEEE
Iris	Forks

Vendor information

Brand Name	Hikvision
Warranty	3 Year/s

Video

Image quality adjustment	Brightness/Contrast/Saturation/Sharpness
Region of interest (ROI) coding	Forks
Backlight Compensation (BLC)	Forks
Backlight Compensation (HLC)	Forks
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Image stabilizer	Forks
Video compression formats	H.264/H.264+/H.265/H.265+/M-JPEG
Privacy Mask	Forks
Total megapixels	4 MP
Maximum resolution	2680 x 1520 Pixels
Supported graphics resolutions	1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2560 x 1440/2688 x 1520/640 x 480 (VGA)/704 x 480/704 x 576
Noise reduction technology	3D noise reduction
Bit rate	32 Kbps - 8 Mbps
Frame rate	30 pps

Weight & dimensions

Diameter	14.41 cm
Length	37.52 cm
