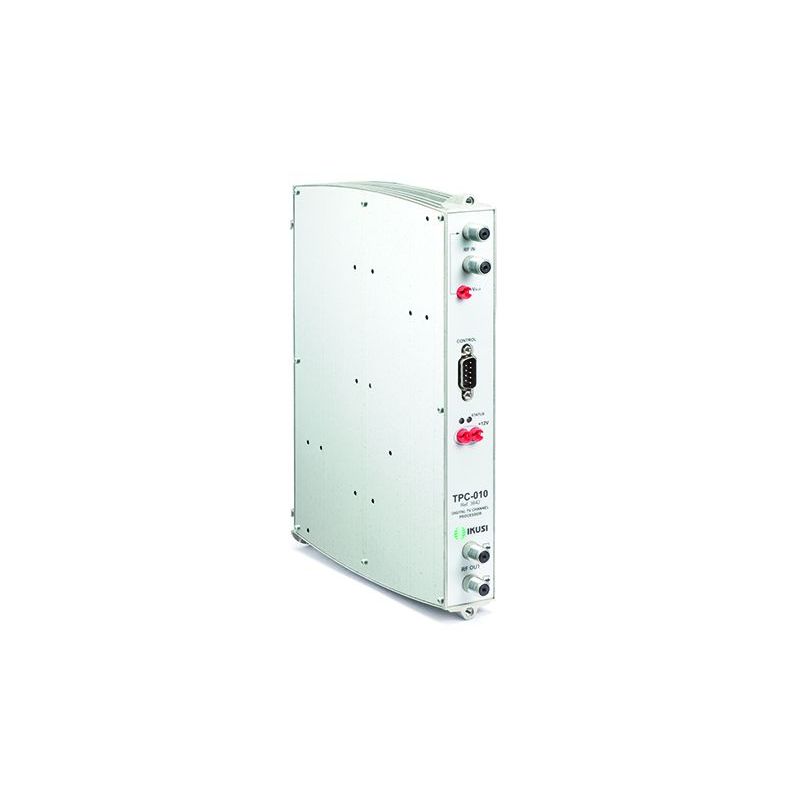

IKUSI 384: TPC-010 DVB-T Processor / Converter DVB-T Output
search
  • IKUSI 384: TPC-010 DVB-T Processor / Converter DVB-T Output

IKUSI 384: TPC-010 DVB-T Processor / Converter DVB-T Output

Double conversion in the band 45-862MHz. FOS filtering in FI, Agile channel processor module

€459.80
Tax included
Reference ikusi-3842
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
IKUSI 384: TPC-010 DVB-T Processor / Converter DVB-T Output

IKUSI 384: TPC-010 DVB-T Processor / Converter DVB-T Output

€459.80

Key Features

  • Double conversion in the band 45-862 MHz. FOS filtering in FI.
  • Channel Agile Processor Module, usable either as a converter (output channel other than the input channel) or as a processor (output channel as the input channel). Adjacent channel operation.
  • A TPC station includes:
    • So many Modules TPC Processors as channels to convert or process.
    • An HPA amplifier that amplifies the multichannel output coupling signal of the processors.
    • One or more CFP Feeders.
    • One or more Rack-Mounts or Stand-Mounts. Bases can be assembled horizontally.
    • Optionally, base-mount protection chests.
    • If the station is voluminous, one or more AMX-400 Multiplexers.

TPC stations provide a level-appropriate multichannel signal for your
distribution network connection. An extension input in the HPA amplifier module facilitates the coupling of the broadband 47-862 MHz output signal from another station that might have been in the header.

Spacing

MODEL TPC-010
REF.   3842
Channel Type   Digital
Standard / TV System   DVB-T / T2 ,, DVB-C ,, B / G ,, D / K ,, I, L
Frequency band input channel MHz 45-862
Selectable output TV channel, between: MHz 45-862
Frequency selection steps MHz Analog 0.125 / Digital 0.500
Input level (CAG 40 dB) dB μ V Analog 50-90 / digital 44-84
Selectable input sync offset kHz (-) 125/250/375/500
Noise Figure dB < 9 (input level
Filter bandwidth FOS (at -3 dB) MHz

6,875 (for 7 MHz channels)

7,850 (for 8 MHz channels)
Selectivity for 7 MHz channel dB

> 9 (fc + 3.75 MHz)

> 70 (fc + 4.75 MHz)
Selectivity for 8 MHz channel dB

> 18 (fc + 4.75 MHz)

> 70 (fc + 5.25 MHz)
Rejection frequency image dB > 70
Adjustable output level dB μ V Analog 65-80 / digital 60-75
Attenuation input loop dB 0 ± 1
Output loop step attenuation dB 1.1 (t?), 1.4 (m? x)
Group Delay Ripple ns < < 40>
Band Spurs dBc < -58
Phase noise output channel dBc / Hz 83 dBc-1kHz; 98 dBc @ 10kHz 98 dBc @ 100kHz
Broadband noise (ΔB = 5 MHz) dBc < -75
Feeding Tension VDC +12
Consumption mA 700
Operating temperature C 0 ... +45
Input Connector   (2x) F female
Output RF loop connector   (2x) F female
Connectors for power and mains power amplification   banana socket
Programming interface   RS-232 / DB-9
Dimensions mm 230 x 195 x 32
