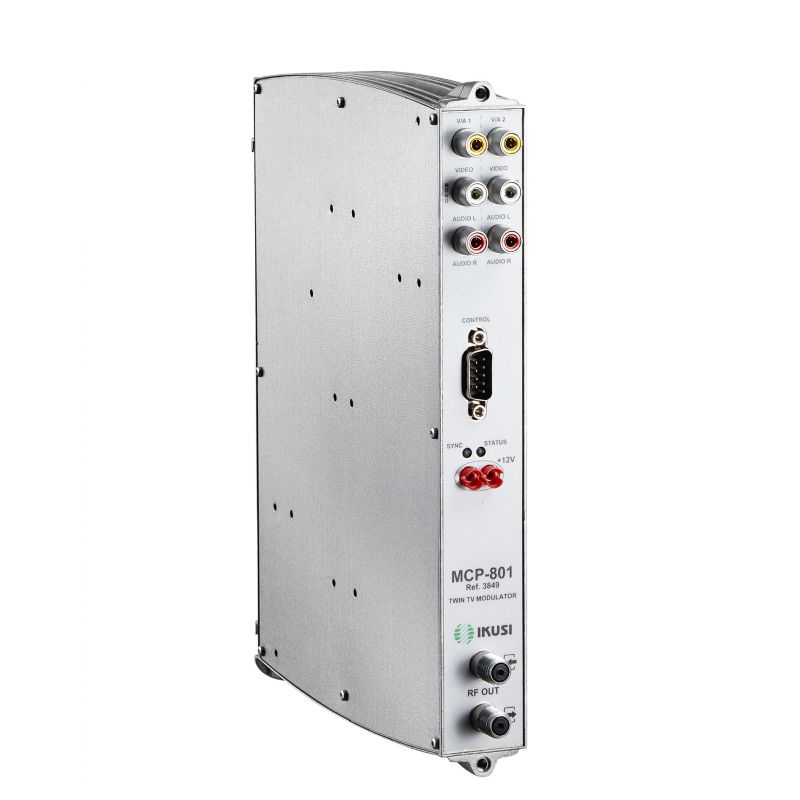

ikusi MCP-801 double modulator A / V

Modulador TV Band Side Vestigial. Audio Mono and stereo / dual A2.

€509.65
Tax included
Reference ikusi-3849
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Transmodulador

ikusi MCP-801 double modulator A / V

€509.65

Key Features

  • TV modulators Vestigial Side Band. Mono Audio. Systems B / G, D / K, I, L
  • Integrate two modulators into a single module.
  • FI modulation and FOS filtering for maximum harmonic reduction and true BLV response. Operability on adjacent channels.
  • Frequency agility. Any TV channel in the band 45-862 MHz. PLL Synthesis.
  • Generating a test image.
  • The two generated TV channels are combined internally to form a two-channel output signal.
MODEL MCP-801
REF 3849
TV System B / G / D / K / I / L
Audio System Mono
Input (2x) Video ,, (2x) Audio
Selectable TV channel between: MHz Bicanal TV each of the two channels is selectable between: 45 - 862
Adjustable output level dBμV 68 to 78

Frequency

Intercarrier

Audio1

Audio 2

 5.5
Carrier levels V / A dB 12/16
Video input level Vpp 0.7 ... 1.4
Video Input Impedance Ω 75
Adjustable modulation depth % 80 to 90
Audio input level Vpp 0.5 ... 4.0
Audio input impedance Ω > 600
Adjustable peak deviation audio modulation kHz ± 40 to ± 50
Audio preemphasis μs 50
Weighted S / N ratio dB > 59
Differential gain % < 3
Differential Phase o < 3
Factor K (2T pulse) % < 3
Band Spurs dBc < -57
Broadband noise (ΔB = 5 MHz) dBc < -73
Output loop attenuation dB 0.7 (tip), 1.2 (max)
Supply voltage VDC +12
Consumption mA 460
Video Connector (2x) female RCA
Audio Connector (4x) female RCA
RF Connector (2x) F female
Power Connectors base "banana"
Programming Interface RS-232 / DB-9
Dimensions mm 230 x 195 x 32
