SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 29SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 4099 AND id_lang = 1 Ikusi SRF-011 Transmodulator DVB-S to AM (analogue free channels)

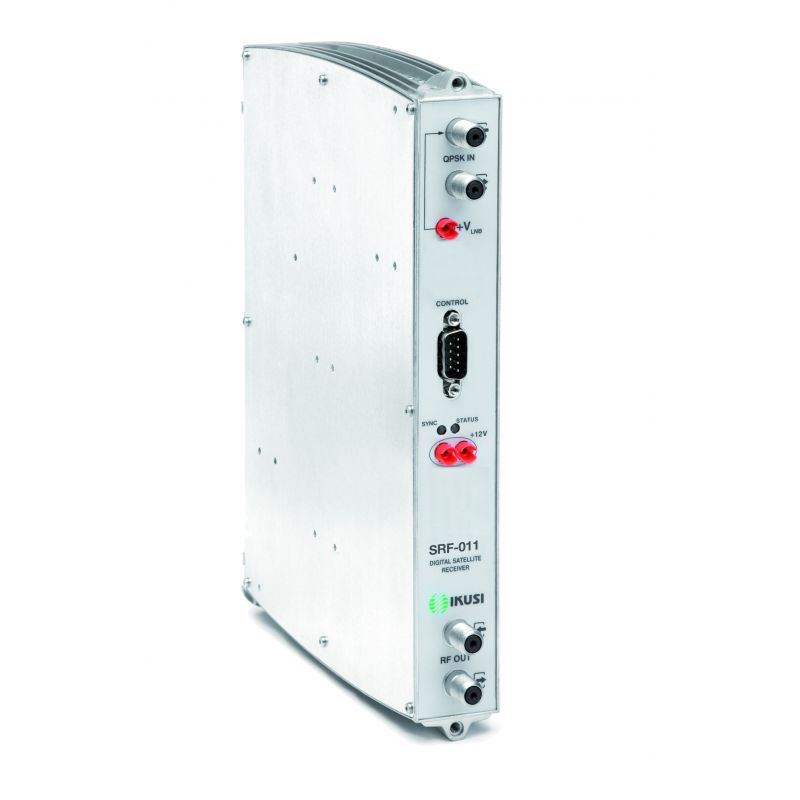

Ikusi SRF-011 Transmodulator DVB-S to AM (analogue free channels)
search
  • Ikusi SRF-011 Transmodulator DVB-S to AM (analogue free channels)

Ikusi SRF-011 Transmodulator DVB-S to AM (analogue free channels)

Satellite TV reception, DVB-S / MPEG-2 standard (EN 300 421); Digital-to-Analog Transmodulation (DVB-C-AM) that locates in conventional channels VHF / UHF (vestigial side band BLV, any TV system and color system) the open TV channels transmitted in QPSK channels of digital satellite TV

€484.00
Tax included
Reference ikusi-4084
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi SRF-011 Transmodulator DVB-S to AM (analogue free channels)

Ikusi SRF-011 Transmodulator DVB-S to AM (analogue free channels)

€484.00

Key Features

  • Satellite TV reception, DVB-S / MPEG-2 standard (EN 300 421).
  • Digital-to-Analog Transmodulation (DVB-C-AM) that locates in conventional channels VHF / UHF (vestigial side band BLV, any TV system and color system) the open TV channels transmitted in QPSK channels of digital satellite TV
  • An SRF station includes:
    • As many SRF Receiver Modules as open TV channels in the station.
    • An HPA amplifier that amplifies the receiver's multi-channel output coupling signal.
    • One or more CFP Feeders.
    • One or more Rack-Mounts or Stand-Mounts. The bases can be assembled horizontally.
    • Optionally, base-mount protection chests.
    • If the station is voluminous, one or more AMX-400 Multiplexers.

SRF stations provide a multichannel TV signal of appropriate level for your connection to the distribution network. The user

It does not require a Set Top Box or any additional device to be able to watch distributed TV channels on your TV. One entry

Extension in the HPA amplifier module facilitates the coupling of the broadband signal 47-862 MHz provided by another

station that could be in header.

MODEL   SRF-011
REF.   4084
Output TV channel spectrum   BLV (Vestigial Side Band)
Remote Mode   NO
TV channel output channel   B / G / D / K / I / L
Audio Output Channel System   Mono (1)
Color channel output system   PAL, SECAM, NTSC
Selectable output TV channel, between: MHz 45-862
Input section (DVB-S)
Frequency band. MHz 950-2150
Input level dBm -65 ... -25
Input loop gain dB 0 (± 1)
CAF margin MHz ± 5
Symbol Rate MS / s 2 ... 45
MPEG2 decoding section
Video Processing   Main Profile @ Main level
Audio Processing   Layer II
Teletext - Inserting subtitles   YES
Conversion Format Image

16: 9 to 4: 3 Pan &Scan and

16: 9 to 4: 3 Letter-box
Re-modulation section V / A
Depth adjustable video modulation % 80 to 90
Adjustable deviation audio modulation kHz ± 10 to ± 50
Output section (TV)
Adjustable output level dBμV 65 to 80
Output loop attenuation dB 1.1
Carrier levels V / A dB

12/16 (Mono; A2: Audio1)

20 (A2: Audio2)
Weighted S / N ratio dB > 60
Band Spurs dBc < -58
Broadband noise (ΔB = 5 MHz) dBc < -75
General
Supply voltage VDC +12
Consumption mA 540
Temper. oC 0 ... +45
Connector RF loop input   (2x) F female
Output RF loop connector   (2x) F female
Power and power connectors amplif. mast   banana socket
Programming interface   RS-232 / DB-9
Dimensions mm 230 x 195 x 32
