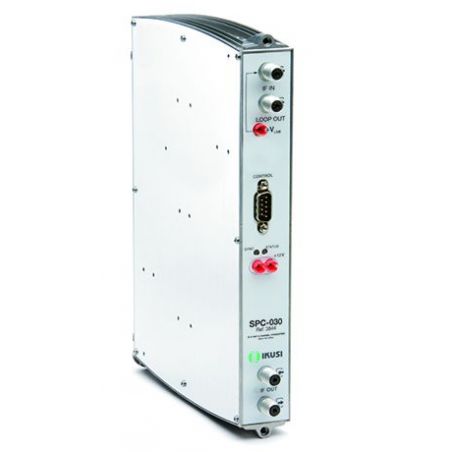

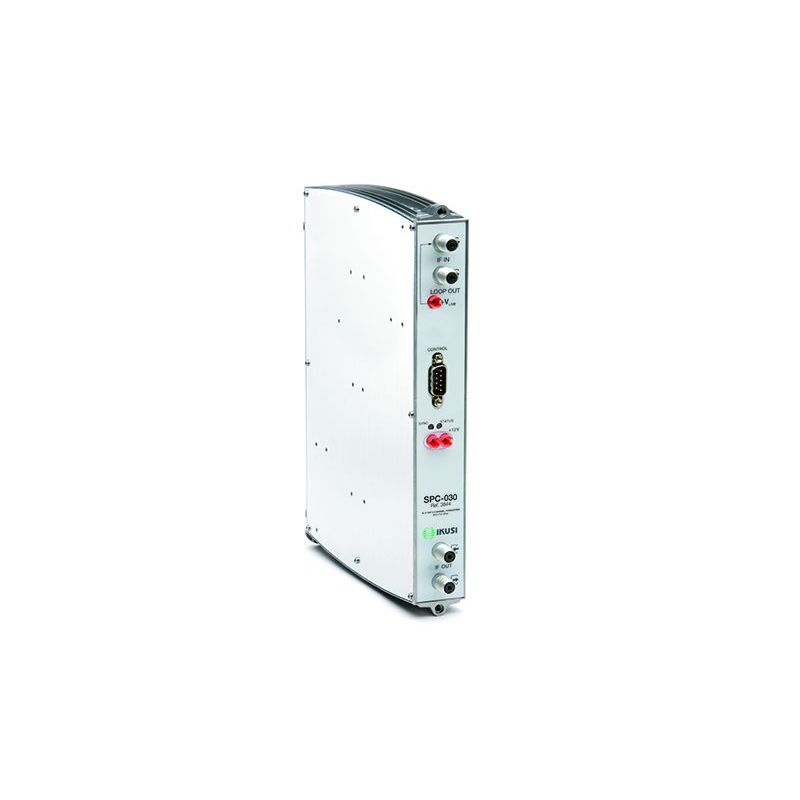

Ikusi SPC-030 Triple Satellite Processor

Frequency conversion of FI-Sat channels of different satellites or polarities in order to establish a new frequency plan to transmit all the converted channels on a single cable.
Use with digital channels.
Conversion of three channels.

€459.80
Tax included
Reference ikusi-3844
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi SPC-030 Triple Satellite Processor

Ikusi SPC-030 Triple Satellite Processor

€459.80

Main features:

  • Frequency conversion of FI-Sat channels of different sat- ellites or polarities in order to establish a new frequency plan to transmit all the converted channels on a single cable.
  • Use with digital channels.
  • Conversion of three channels.
  • Configurable input mode:
    • (a) Loop, which facilitates the interconnection of several modules to convert channels transported by a drop cable (b) two separate entries for conversions of one channel carried by one downstream cable and two channels carried by another.
MODEL SPC-030
REF. 3844
Number of converted FI-Sat channels 3
Input mode

Configurable:

a) Lasso

b) Two independent entries

top door: 2-channel input

Bottom door: 1 channel input
Entry section 6nbsp;
Input frequency band MHZ 950-2150
Input level dB 6mu; V -60 ... -20
Input Rate dB 6 ... 45
M x. difference between input levels 6nbsp; 6nbsp; 25
Noise Figure 6nbsp; 6lt; 10
Input loop gain 6nbsp; 0 (± 2)
Output section (DVB-T)
Output frequency band MHz 950-2150
Output bandwidth MHz 6lt; 3
Adjustable output level dB 6mu; V

6nbsp; -38 to -23

(entry rules: 22 and 27.5 MS / s)
Phase noise ppm Compatible DVB-S2
Attenuation output loop dB 1 (t?), 1.8 (m? x)
Band Spurs dBc 6lt; -35
General
Feeding Tension VDC +12
Consumption mA 210
Operating temperature oC 0 ... +45
Input RF loop connector 6nbsp; (2x) F female
Output RF loop connector 6nbsp; (2x) F female
Connectors for power and amplifier power supply. 6nbsp; 6nbsp; banana 6rdquo;
Programming interface 6nbsp; RS-232 / DB-9
Dimensions mm 230 x 195 x 32
