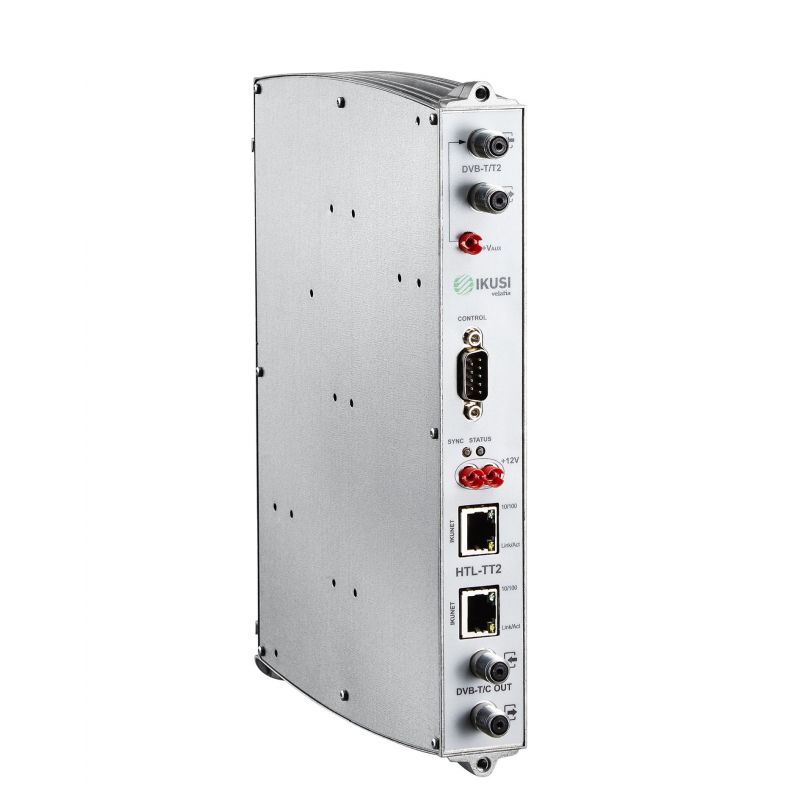

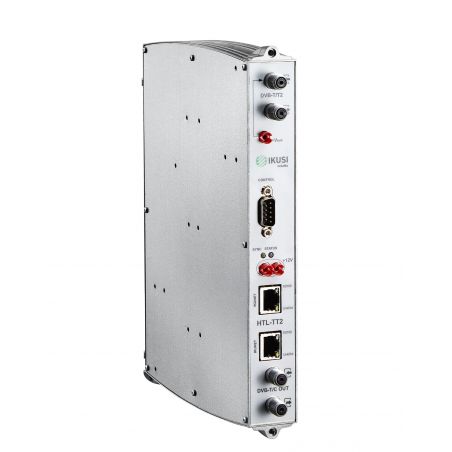

  • Ikusi HTL-TT2 Transmodulador doble

Ikusi HTL-TT2 Double transmodulator

Conversion solution for DVB-T/T2 MPEG-4 services to DVB-T/DVB-C MPEG-2. It includes the function of DVB-T2 channel transmodulator function to DVB-T/DVB-C channels. The HTL-TT2 terrestrial system is capable of receiving 2 DVB-T/T2 muxes and combining them into 2 DVB-T/DVB-C output channels. It manages HD and SD services both in MPEG4 h.2644 and MPEG-2, allowing HD.

€1,815.00
Tax included
Reference ikusi-3859
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi HTL-TT2 Transmodulador doble

Ikusi HTL-TT2 Double transmodulator

€1,815.00

Features

  • Conversion solution for DVB-T / T2 MPEG-4 services to DVB-T / DVB-C MPEG-2. It includes the function of DBV-T2 channel transmodulator function to DVB-T / DVB-C channels
  • The HTL-TT2 terrestrial system is capable of receiving 2 DVB-T / T2 muxes and combining them into 2 DVB-T / DVB-C output channels. It manages HD and SD services both in MPEG4 h.2644 and MPEG-2, allowing HD content to be received in SD Televisions.
Ref. 3859
Standard EN 300 744 DVB-T; EN 302 755 DVB-T2
Inputs   1 (double tuner)
Frequency Band MHz 470-700
No tuned programs -With the transcoder active, the processing capacity is limited to 4 channels and up to 8 audio tracks. -With the transcoder turned off, the capacity of treatment is only limited by the output bit rate. Typically up to 31 Mbps for DVB-T and up to 55 Mbps for DVB-C. - The transcoder does not treat HD to SD subtabs.
Input level dB μ V 40-92
Input loop gain 0 (± 1)
Processed TS
Adaptation of PSI / SI     Generation and insertion of PAT, PMT, CAT, SDT, NIT, TOT and BAT tables
NIT Adaptation (Network Information Table)     (automated generation)
SDT Adaptation (Table Description Service)     (insertion of configurable name)
LCN, DTT, TOT Treatment     S í
Transcoding
Supported Usage Cases *       1080i mpeg4 > 576i mpeg2
576i mpeg4 > 576i mpeg2
  Audio       AC3 > mpeg I layer II
AC3Plus > mpeg I layer II
Outputs
Output No     2 DVB-T / DVB-C channels
Output Frequency MHz DVB-T: 470-862 DVB-C: 302-446 / 470-862
Operation modes   2K; 8K;
MER dB > 40
Output level dB μ V 80
Adjustable output level dB -15
Output DVB-T modulation formats   QPSK; 16QAM; 64QAM

DVB-T output rate relationship

   1/2, 1/3, 3/4, 5/6, 7/8
DVB-T output save interval   1/4, 1/8, 1/16, 1/32
Output bandwidth MHz 6/7/8
Attenuation step output loop dB 1.1
Symbol Rate DVB-C MS / s

7.2 max
Frequency Stability ppm ≤ ± 30
General
Remote Control   S
Settings     PC. Web, Ikusi Headend Discovery
Update Firmware     Web Interface
Feeding Tension VDC +12
Consumption A 2
Operating temperature oC 0 ... +45
IKUNET bus connector     (2x) RJ-45
Dimensions mm 230 x 195 x 32
