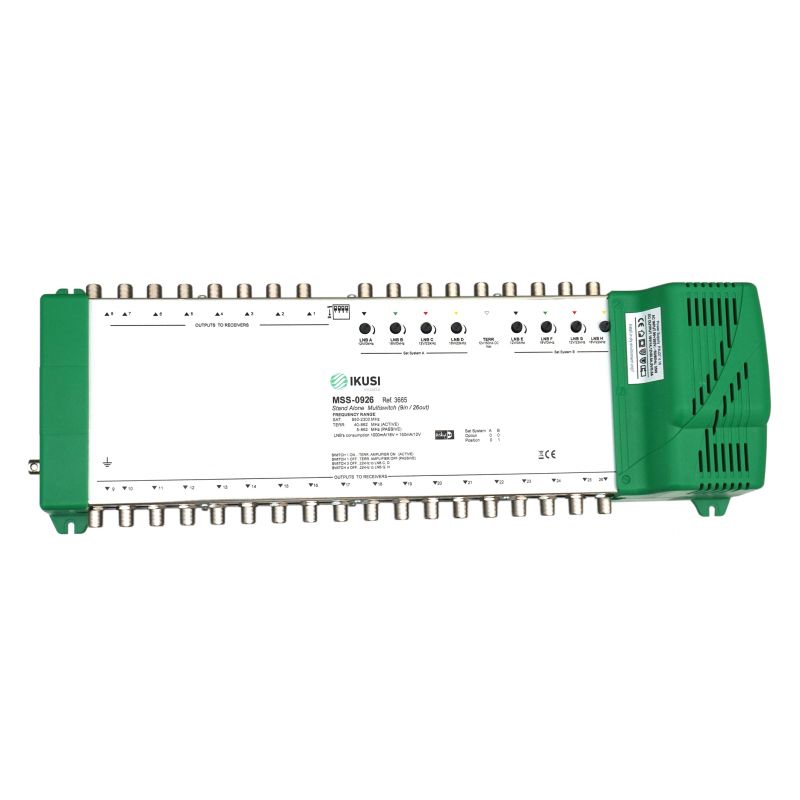

Ikusi MSS-0926 Standalone multiswitch 9 inputs 26 outputs

Stand Alone Multiswitches 9 inputs (8 sat+1 terr). A solution for distributing the signals from 1 to 4 satellites for up to 32 users.

€562.17
Tax included
Reference ikusi-3665
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Multiswitch standalone 9 inputs 4 outputs mss-09

Ikusi MSS-0926 Standalone multiswitch 9 inputs 26 outputs

€562.17

IKUSI MSS-0926. Stand Alone Multiswitches 9 inputs (8 sat+1 terr). A solution for distributing the signals from 1 to 4 satellites for up to 32 users.

Features

  • Distributions up to 32 users.
  • All models with integrated power supply except MSS-0932 with external power supply.
  • European product.
  • Indoor mounting. Wall fixing.

Technical specifications

REF. 3660 3661 3662 3663 3664 3665 3666
Number of inputs 9 (8 SAT inputs+1 TERR input)
Number of outputs (users) 4 8 12 16 20 26 32
Frequency range SAT MHz 950 - 2300 950 - 2300 950 - 2300 950 - 2300 950 - 2300 950 - 2300 950 - 2150
Frequency range TERR active TERR passive MHz 40 - 862
5 - 862		 40 - 862
5 - 862		 40 - 862
5 - 862		 40 - 862
5 - 862		 40 - 862
5 - 862		 40 - 862
5 - 862		 40 - 862
5 - 862
Insertion loss SAT dB 0 0 0 0 4 5 950 MHz= 8
2150 MHz= +5
Insertion loss TERR active TERR paesive dB -3
12		 0
16		 3
18		 5
21		 7
24		 8
25		 5
27
Isolation between V/H polarizations dB 20 20 20 20 20 20 25
Isolation between L/H bands dB 25 25 25 25 25 25 30
Maximum input level SAT dBµV 90 90 90 90 90 90 85
Max input level TERR active TERR passive dBµV 90
100		 90
100		 90
100		 90
100		 90
100		 90
100		 90
110
Maximum output level SAT dBµV 90 90 90 90 86 85 85
Max output leve TERR activ TERR passive dBµV 93
88		 90
84		 87
82		 85
79		 83
76		 82
75		 85
83
Current consumption from each receiver mA 50 50 50 50 50 50 70
Power supply consumption TERR active TERR passive W 4.5
3		 4.5
3		 4.5
3		 4.5
3		 4.5
3		 4.5
3		 13
11
Input voltage VAC 90 - 265 90 - 265 90 - 265 90 - 265 90 - 265 90 - 265 90 - 265
Operating temperature ºC -30 ... +70 -30 ... +70 -30 ... +70 -30 ... +70 -30 ... +70 -30 ... +70 -25 ... +50
Dimensions cm 34.7 x 15.2 x 8.7 34.7 x 15.2 x 8.7 34.7 x 15.2 x 8.7 35.4 x 15.2 x 8.7 47.0 x 15.2 x 8.7 47.0 x 15.2 x 8.7 35.5 x 35 x 5

Manual/Datasheet
