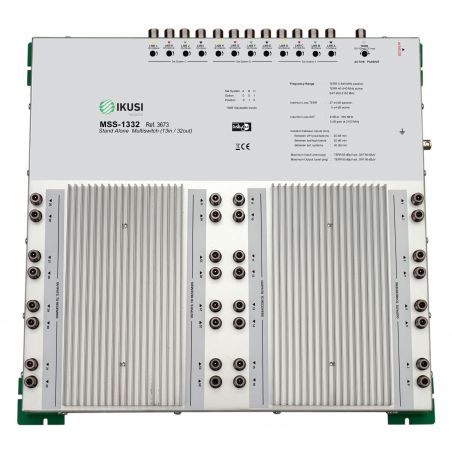

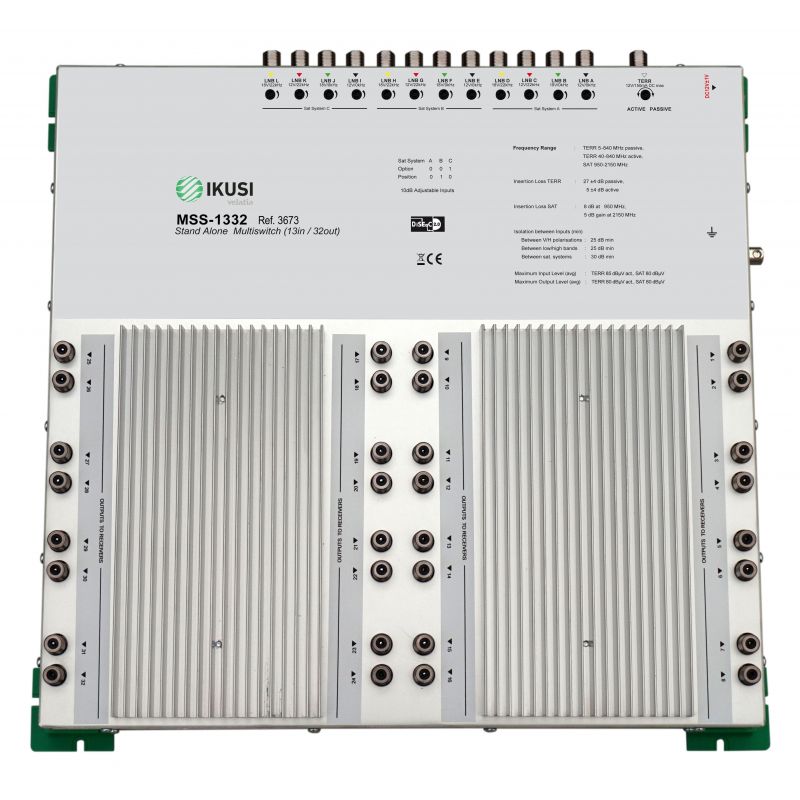

Ikusi MSS-1332 - Multiswitch standalone 13 inputs 32 outputs

Satellite receiver + ground input switchable (active or passive)

Integrated and removable power source

€1,056.21
Tax included
Reference ikusi-3673
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Multiswitch standalone 13 inputs 32 outputs

Ikusi MSS-1332 - Multiswitch standalone 13 inputs 32 outputs

€1,056.21

Features

  • Distribute up to 32 users.
  • All models with integrated power supply except MSS-1332 with external power supply.
  • European product.
  • Interior mounting and wall bracket

Specifications

MODEL



MSS-1304

MSS-1308

MSS-1312

MSS-1316

MSS-1320

MSS-1326

MSS-1332

REF.



3667

3668

3669

3670

3671

3672

3673

Number of entries



13 (12 SAT+1 TERR)



Number of outputs (users)



4

8

12

16

20

26

32

SAT frequency band

 MHz

950 – 2300



950 - 2300

950 - 2300

950 - 2300

950 - 2300

950 - 2300

950 - 2150

Frequency Band

 MHz

40 - 862

5 - 862

40 - 862

5 - 862

40 - 862

5 - 862

40 - 862

5 - 862

40 - 862

5 - 862

40 - 862

5 - 862

40 - 862

5 - 862

SAT insertion losses

 dB

0

0

0

0

4

5

950 MHz= 8;2150 MHz= +5

Insertion Losses

 dB

0

12

2

16

5

19

7

21

9

24

10

25

5

27

Disconnection of H / V polarities

 dB

20

20

20

20

20

20

20

Disconnection between LNBs

 dB

25

25

25

25

25

25

25

Maximum input level SAT

dBμV

90

90

90

90

90

90

85

Input level max. x

 dBμV

90

100

90

100

90

100

90

100

90

100

90

100

90

110

Maximum output level SAT

 dBμV

90

90

90

90

86

85

85

Maximum Output Level

 dBμV

90

88

88

84

85

81

83

79

81

76

80

75

85

83

Consumption of each receiver

 mA

75

75

75

75

75

75

85

Power supply consumption

  W

6,5

4,5

6,5

4,5

6,5

4,5

6,5

4,5

6,5

4,5

6,5

4,5

17

15

Consumition power

 ºC

-30 ... +70

-30 ... +70

-30 ... +70

-30 ... +70

-30 ... +70

-30 ... +70

-25 ... +50

Dimensions

  cm

47,0 x 15,2 x 8,7

47,0 x 15,2 x 8,7

47,0 x 15,2 x 8,7

47,0 x 15,2 x 8,7

47,0 x 15,2 x 8,77

47,0 x 15,2 x 8,7

35,5 x 35 x 5
