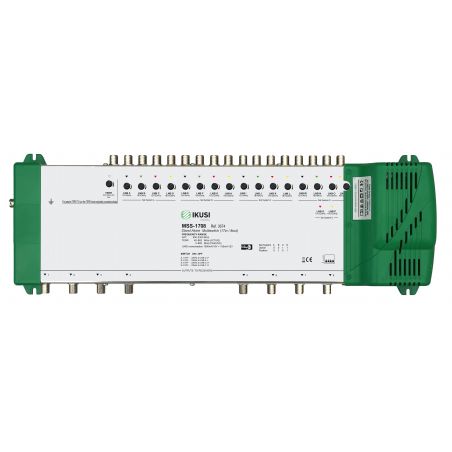

Ikusi MSS-1708 Multiswitch 13 inputs 8 outputs
Solution to distribute signals from 1 to 4 satellites to 8 different users. Satellite receiver + ground input switchable (active or passive). Integrated and removable power source.
€520.30
Tax included
Reference
ikusi-3674
Brand
Ikusi
Ikusi MSS-1708 Multiswitch 13 inputs 8 outputs
€520.30
Solution to distribute signals from 1 to 4 satellites to 8 different users.
Features
- Distribute up to 8 users.
- All models with integrated power supply except MSS-1308 with external power supply.
- European product.
- Interior mounting and wall bracket
Specifications
|
MODEL |
MSS-1708 |
MSS-17012 |
MSS-1716 | MSS-1720 |
MSS-1726 |
MSS-1732 | |
|
REF. |
3674 |
3675 |
3676 |
3677 |
3678 |
3679 |
|
|
Number of entries |
13 (12 SAT+1 TERR) |
||||||
|
Number of outputs (users) |
8 |
12 |
16 |
20 |
26 |
32 |
|
|
SAT frequency band |
MHz |
950 - 2300 |
950 - 2300 |
950 - 2300 |
950 - 2300 |
950 - 2300 |
950 - 2150 |
|
Frequency Band |
MHz |
40 - 862 5 - 862 |
40 - 862 5 - 862 |
40 - 862 5 - 862 |
40 - 862 5 - 862 |
40 - 862 5 - 862 |
40 - 862 5 - 862 |
|
SAT insertion losses |
dB |
0 |
0 |
0 |
4 |
5 |
950 MHz= 8;2150 MHz= +5 |
|
Insertion Losses |
dB |
2 16 |
5 19 |
7 21 |
9 24 |
10 25 |
5 27 |
|
Disconnection of H / V polarities |
dB |
20 |
20 |
20 |
20 |
20 |
20 |
|
Disconnection between LNBs |
dB |
25 |
25 |
25 |
25 |
25 |
25 |
|
Maximum input level SAT |
dBμV |
90 |
90 |
90 |
90 |
90 |
85 |
|
Input level max. x |
dBμV |
90 100 |
90 100 |
90 100 |
90 100 |
90 100 |
90 110 |
|
Maximum output level SAT |
dBμV |
90 |
90 |
90 |
86 |
85 |
85 |
|
Maximum Output Level |
dBμV |
88 84 |
85 81 |
83 79 |
81 76 |
80 75 |
85 83 |
|
Consumption of each receiver |
mA |
75 |
75 |
75 |
75 |
75 |
85 |
|
Power supply consumption |
W |
6,5 4,5 |
6,5 4,5 |
6,5 4,5 |
6,5 4,5 |
6,5 4,5 |
21 19 |
|
Consumition power |
ºC |
-30 ... +70 |
-30 ... +70 |
-30 ... +70 |
-30 ... +70 |
-30 ... +70 |
-25 ... +50 |
|
Dimensions |
cm |
47,0 x 15,2 x 8,7 |
47,0 x 15,2 x 8,7 |
47,0 x 15,2 x 8,7 |
47,0 x 15,2 x 8,77 |
47,0 x 15,2 x 8,7 |
35,5 x 35 x 5 |
