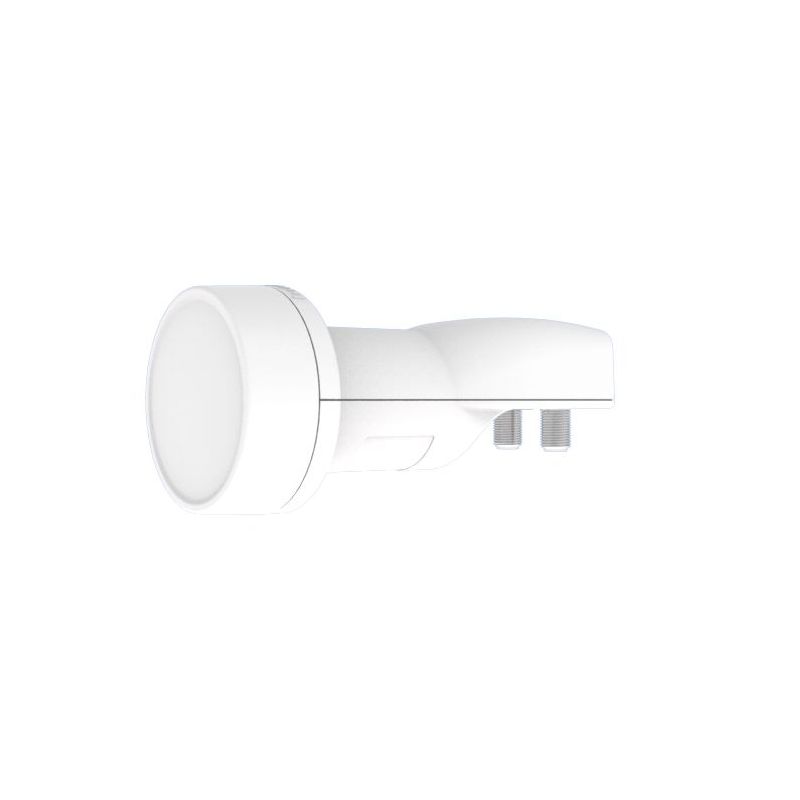

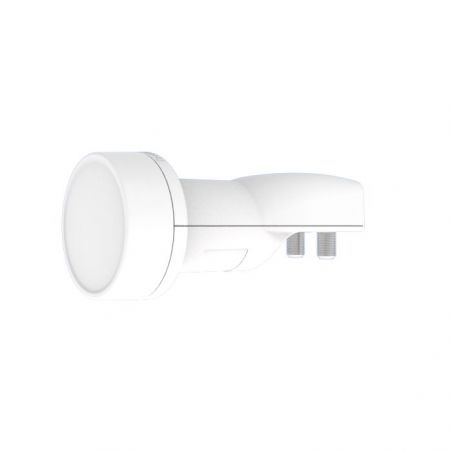

Pro Wideband 40mm LNB whit Horizontal/Vertical ports

Inverto Inverto LNB Pro Wideband 40mm whit Horizontal/Vertical ports

Especificamente projetado para atender a crescente demanda de operadores de DTH para instalações MDU e Multi-Tuner Home Gateway de baixo custo, este LNB profissional é baseado em um único oscilador local de 10.4GHz que oferece desempenho RF excepcional em toda a faixa de freqüência (banda L) ao longo de dois portas de saída (vertical e horizontal).

€29.90

Tax included

Reference inverto-5277

Brand Inverto

Inverto Inverto LNB Pro Wideband 40mm whit Horizontal/Vertical ports

€29.90

Description
Product Details

Features

Low-phase noise, compatible with DVB-S2 (HDTV)
Low Noise Figure
Low power consumption
High cross polarization insulation
High-frequency stability
Enhanced 4G interference immunity

Specifications

Technical specifications
Input frequency range	10.7 GHz ~ 12.75 GHz
Frequency range IF	300 ~ 2350 MHz
noise figure from	0.7 dB tip. (1 dB maximum)
LO frequency accuracy at 25 ° C from	10.4 GHz ± 1 MHz
temperature drift LO at 25 ° C from	10.4 GHz ± 2 MHz
LO phase noise at 10 kHz from	-80 dBc / Hz max.
conversion gain from	50 dB ~ 60 dB min.
Gain variation (full band)	± 0.5dB @ 27MHz
image rejection from	40 dB min. (8.05 GHz to 10.1 GHz)
1 dB compression point (@ output)	0.0 dBm min.
Cross polarization isolation	22 dB min.
Polarization Selection - LHCP	16.0 V ~ 20.0 V
Polarization Selection - RHCP	10.0 V ~ 14.0 V
Output VSWR from	2.5: 1 & nbsp;
At the spurious band level	-60 dBc max.
current consumption from	150 mA max. @ 11 V ~ 20 V
Operating temperature from	-30 ° C & nbsp; & nbsp; ~ & nbsp; & nbsp; +60 ° C
Output Impedance from	75 Ω
Output Connector Type from	F-Type (female)
Weight	110 g
