  • Distribuidor 1 salida (Conector F) VFC 0421 SF

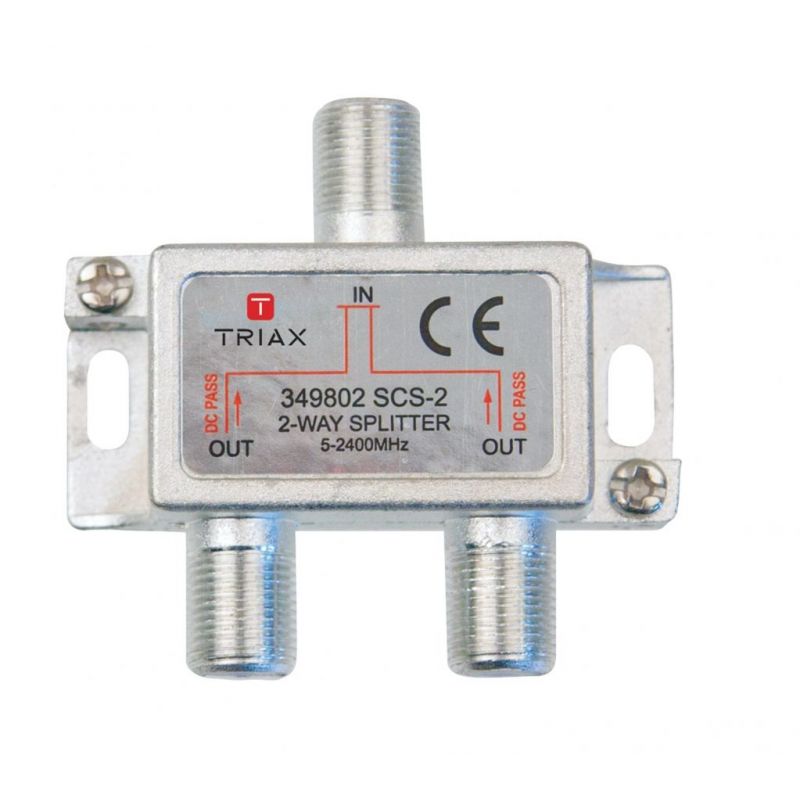

Triax SCS 2 2-output splitter, 4 to 6 dB attenuation

The Triax splitter is ideal for SAT-FI and MATV distribution networks. Frequency range 5 to 2400 MHz. High shielding. Loss of return Grade 3. Casing of high quality casting and coating (Sn). Acc. The standard EN 50083-2 and EN 60728.

€4.66
Tax included
Reference triax-349822
Brand Triax
Quantity
Available Now

Free shipping
Distribuidor 1 salida (Conector F) VFC 0421 SF

Triax SCS 2 2-output splitter, 4 to 6 dB attenuation

€4.66

SCS 2 - 2 way splitter

TRIAX coaxial splitter ideal for SAT-IF and MATV distribution networks.

  • Frequency range 5-2400 MHz
  • DC pass via diodes from all outputs
  • High shielding against ingress noise like radiated by LTE mobile
  • High quality die-cast housing tin (Sn) coated with solder shield bottom plate
  • Grounding clamp terminals
  • Formerly triax-349802

Specifications

INFORMATION
EAN Number 5702663498228

FREQUENCY RANGE

Frequency range 5...2400 MHz

OPERATIONAL

Application SAT-IF, MATV 2.4Ghz +DC(out->in)
Screening Efficiency EN50083-2 (Class A)
DC Passthrough Yes (max. 0.5A/24V)
Certification EN 50581:2012 (RoHS II)
Environment Indoor
Temperature - operating -30…+60 °C

LOSS

Insertion loss (in-out) 5-40 Mhz 4.4 dB
Insertion loss (in-out) 40-1000 Mhz 4.0 dB
Insertion loss (in-out) 1000-2150 MHz 5.5 dB
Insertion loss (in-out) 2150-2400 Mhz 6.0 dB

ISOLATION

Isolation (tap-tap) 5-40 MHz 22 dB
Isolation (tap-tap) 40-1000 MHz 25 dB
Isolation (tap-tap) 1000-2150 MHz 24 dB
Isolation (tap-tap) 2150-2400 MHz 22 dB

RETURN LOSS

Return loss (in-out) 5-40 MHz 11.5 dB
Return loss (in-out) 40-1000 MHz 15.0 dB
Return loss (in-out) 1000-2150 MHz 12.0 dB
Return loss (in-out) 2150-2400 MHz 11.0 dB

CONNECTORS

Number of inputs 1
Number of outputs 2
Connector Type F-female (IEC 61 169-24)

MECHANICAL

Main material Zinc diecast/Sn plated
Packaging Polybag
Packing QTY 1
Product Height 47 mm
Product Width 52 mm
Product Depth 17 mm
Packaging Height 0.090 m
Packaging Width 0.055 m
Packaging Depth 0.020 m
Packaging Volume 0.000 m3
Net Weight 0.035 kg
Tara Weight 0.003 kg
Total Weight 0.038 kg

ELECTRICAL

Impedance 75 Ω

SHIELDING

Shielding effeciency VHF/UHF >85 dB
