  • Distribuidor 3 salidas (Conector F) VFC 0631 SF

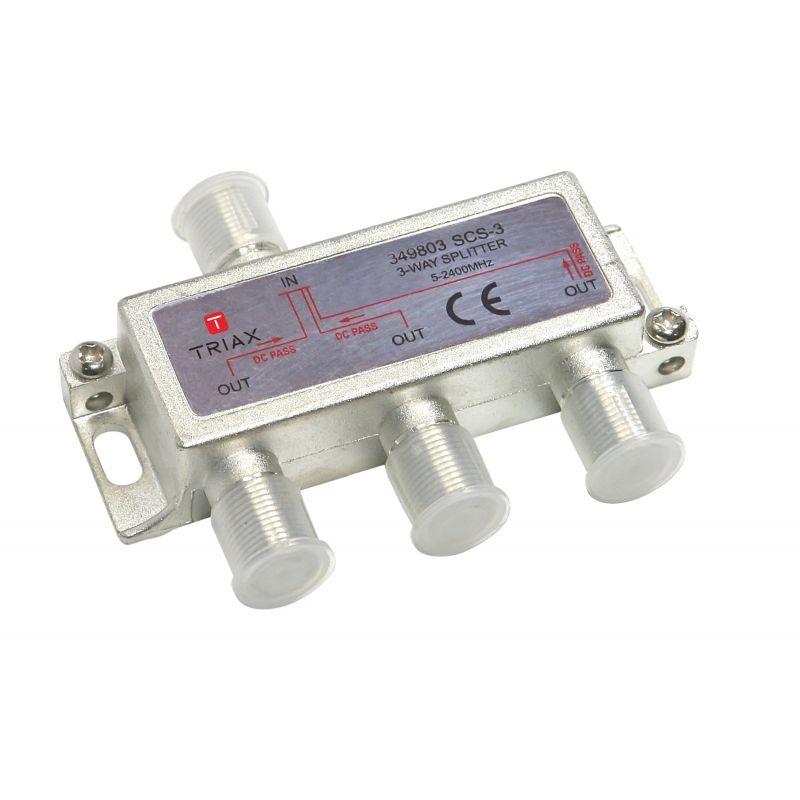

Triax SCS 3 3 way splitter (Connector F) 5-2400MHz

Triax splitter ideal for SAT-IF and MATV distribution networks. Frequency range 5-2400 MHz. DC pass through over diodes from all outputs. High shielding. Return loss Grade 3. High quality die cast housing tin (Sn) coated. Acc. to EN 50083-2 & EN 60728-4.

€5.02
Tax included
Reference triax-349823
Brand Triax
Quantity
Available Now

Free shipping
Distribuidor 3 salidas (Conector F) VFC 0631 SF

Triax SCS 3 3 way splitter (Connector F) 5-2400MHz

€5.02

SCS 3 - 3 way splitter

TRIAX coaxial splitter ideal for SAT-IF and MATV distribution networks.

  • Frequency range 5-2400 MHz
  • DC pass via diodes from all outputs
  • High shielding against ingress noise like radiated by LTE mobile
  • High quality die-cast housing tin (Sn) coated with solder shield bottom plate
  • Grounding clamp terminals
  • Formerly triax-349803

 Specifications

ORDER INFORMATION
EAN Number 5702663498235

FREQUENCY RANGE

Frequency range 5...2400 MHz

OPERATIONAL

Application SAT-IF, MATV 2.4Ghz +DC(out->in)
Screening Efficiency EN50083-2 (Class A)
DC Passthrough Yes (max. 0.5A/24V)
Certification EN 50581:2012 (RoHS II)
Environment Indoor
Temperature - operating -30…+60 °C

LOSS

Insertion loss (in-out) 5-40 Mhz 6.5 dB
Insertion loss (in-out) 40-1000 Mhz 7.5 dB
Insertion loss (in-out) 1000-2150 MHz 10.0 dB
Insertion loss (in-out) 2150-2400 Mhz 10.5 dB

ISOLATION

Isolation (tap-tap) 5-40 MHz 23 dB
Isolation (tap-tap) 40-1000 MHz 22 dB
Isolation (tap-tap) 1000-2150 MHz 23 dB
Isolation (tap-tap) 2150-2400 MHz 23 dB

RETURN LOSS

Return loss (in-out) 5-40 MHz 10.0 dB
Return loss (in-out) 40-1000 MHz 12.0 dB
Return loss (in-out) 1000-2150 MHz 13.0 dB
Return loss (in-out) 2150-2400 MHz 13.0 dB

CONNECTORS

Number of inputs 1
Number of outputs 3
Connector Type F-female (IEC 61 169-24)

MECHANICAL

Main material Zinc diecast/Sn plated
Packaging Polybag
Packing QTY 1
Product Height 47 mm
Product Width 74 mm
Product Depth 17 mm
Packaging Height 0.090 m
Packaging Width 0.055 m
Packaging Depth 0.020 m
Packaging Volume 0.000 m3
Net Weight 0.050 kg
Tara Weight 0.003 kg
Total Weight 0.053 kg

ELECTRICAL

Impedance 75 Ω

SHIELDING

Shielding effeciency VHF/UHF >85 dB
