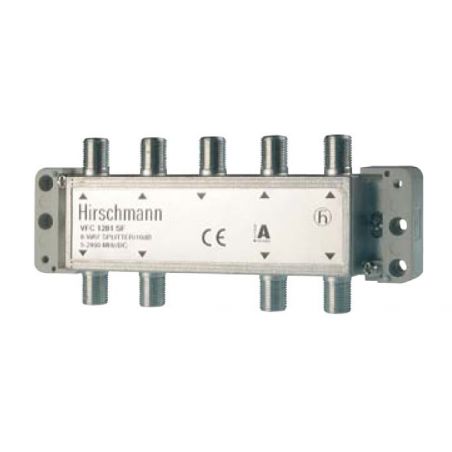

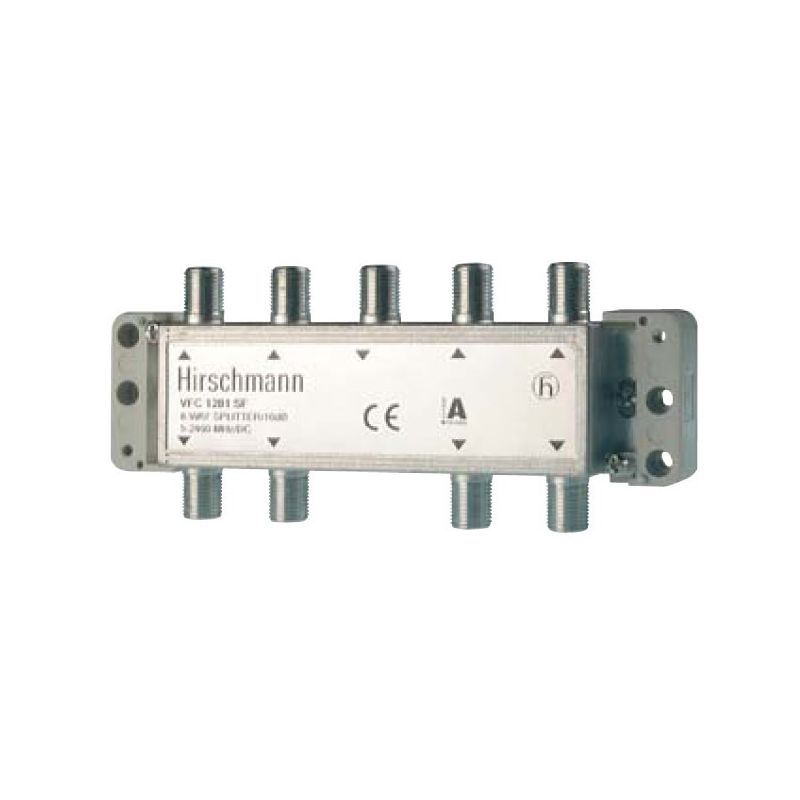

Distribuidor 8 salidas (Conector F) VFC 1281 SF
search
  • Distribuidor 8 salidas (Conector F) VFC 1281 SF

Triax SCS 8 8-output distributor, attenuation 11 to 14 dB

SCS 8 - 8 way splitter. TRIAX coaxial splitter ideal for SAT-IF and MATV distribution networks. Frequency range 5-2400 MHz. DC pass via diodes from all outputs. High shielding against ingress noise like radiated by LTE mobile. High quality die-cast housing tin (Sn) coated with solder shield bottom plate.

€11.92
Tax included
Reference triax-349828
Brand Triax
Quantity
Available Now

Free shipping
Distribuidor 8 salidas (Conector F) VFC 1281 SF

Triax SCS 8 8-output distributor, attenuation 11 to 14 dB

€11.92

SCS 8 - 8 way splitter

TRIAX coaxial splitter ideal for SAT-IF and MATV distribution networks.

Features

  • Frequency range 5-2400 MHz
  • DC pass via diodes from all outputs
  • High shielding against ingress noise like radiated by LTE mobile
  • High quality die-cast housing tin (Sn) coated with solder shield bottom plate
  • Grounding clamp terminals
  • Formerly triax-349808

Specifications

ORDER INFORMATION
EAN Number 5702663498280

FREQUENCY RANGE

Frequency range 5...2400 MHz

OPERATIONAL

Application SAT-IF, MATV 2.4Ghz +DC(out->in)
Screening Efficiency EN50083-2 (Class A)
DC Passthrough Yes (max. 0.5A/24V)
Certification EN 50581:2012 (RoHS II)
Environment Indoor
Temperature - operating -30…+60 °C

LOSS

Insertion loss (in-out) 5-40 Mhz 11.8 dB
Insertion loss (in-out) 40-1000 Mhz 13.0 dB
Insertion loss (in-out) 1000-2150 MHz 16.5 dB
Insertion loss (in-out) 2150-2400 Mhz 17.0 dB

ISOLATION

Isolation (tap-tap) 5-40 MHz 25 dB
Isolation (tap-tap) 40-1000 MHz 23 dB
Isolation (tap-tap) 1000-2150 MHz 23 dB
Isolation (tap-tap) 2150-2400 MHz 23 dB

RETURN LOSS

Return loss (in-out) 5-40 MHz 8.5 dB
Return loss (in-out) 40-1000 MHz 11.0 dB
Return loss (in-out) 1000-2150 MHz 13.0 dB
Return loss (in-out) 2150-2400 MHz 12.0 dB

CONNECTORS

Number of inputs 1
Number of outputs 8
Connector Type F-female (IEC 61 169-24)

MECHANICAL

Main material Zinc diecast/Sn plated
Packaging Polybag
Packing QTY 1
Product Height 47 mm
Product Width 118 mm
Product Depth 17 mm
Packaging Height 0.120 m
Packaging Width 0.050 m
Packaging Depth 0.018 m
Packaging Volume 0.000 m3
Net Weight 0.087 kg
Tara Weight 0.003 kg
Total Weight 0.090 kg

ELECTRICAL

Impedance 75 Ω

SHIELDING

Shielding effeciency VHF/UHF >85 dB
