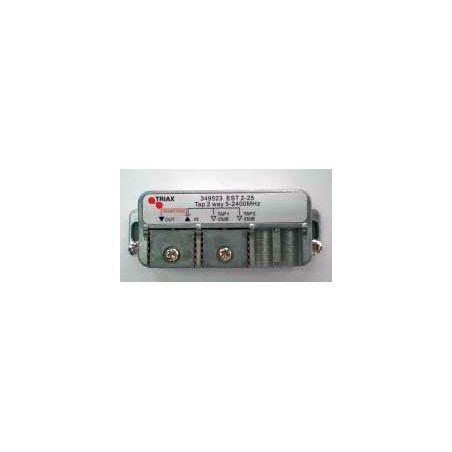

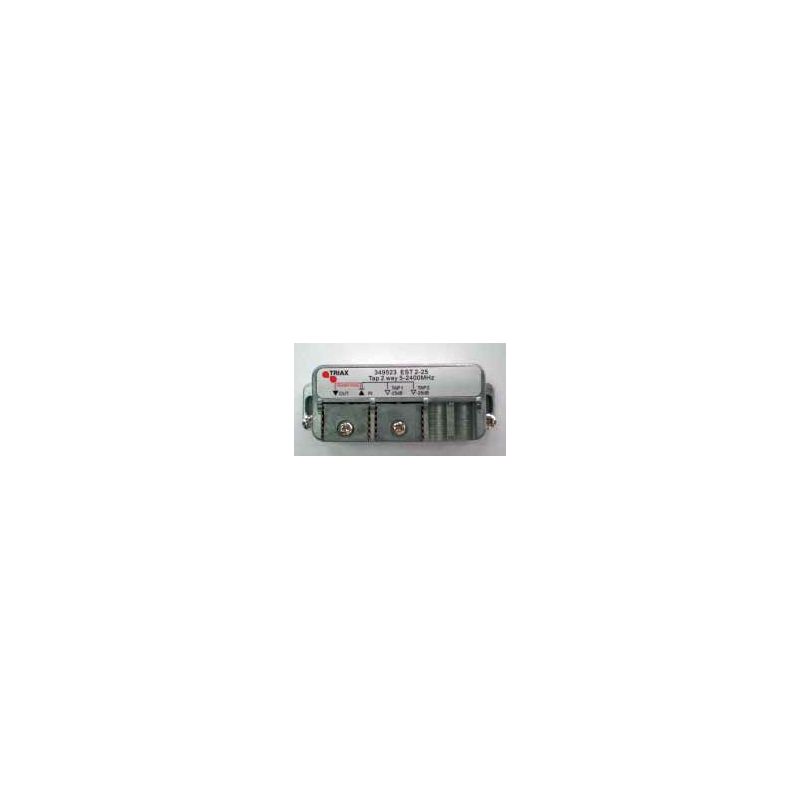

2 outputs (Easy clema connection) 15db EST 2-15 Triax
Shunt 2 outputs (Easy clema connection) 15db EST 2-15
€12.04
Tax included
Reference
triax-349521
Brand
Triax
2 outputs (Easy clema connection) 15db EST 2-15 Triax
€12.04
Shunt 2 outputs (Easy clema connection) 15db EST 2-15
Specifiactions
| Model | EST 2-15 | |
| Code | 349521 | |
| Frequency range | MHz | 5 - 2400 |
| No. of outputs | 2 | |
| Lost in step (typical) 5 - 40 MHz | dB | 2.2 |
| 40 - 1000 MHz | dB | 2.4 |
| 1000 - 1750 MHz | dB | 03 |
| 1750 - 2150 MHz | dB | 3.5 |
| 2150 - 2400 MHz | dB | 04 |
| Lost in shunt 5 - 40 MHz | dB | 15.0 (± 1.5) |
| 40 - 1000 MHz | dB | 15.0 (± 1.5) |
| 1000 - 1750 MHz | dB | 15.0 (± 2.0) |
| 1750 - 2150 MHz | dB | 15.0 (± 2.0) |
| 2150 - 2400 MHz | dB | 15.0 (± 2.5) |
| Decoupling | dB | 22 |
| Lost of return (input / output) | dB | 12 |
| Lost of return (derivation) | dB | 14 |
| Protection of the shield | dB | ≥ 110.0 |
| Current passage | Input / Output | |
| Impedance | Ohm | 75 |
| Measurements (h x d x w) | mm | 82 x 31 x 20 |
