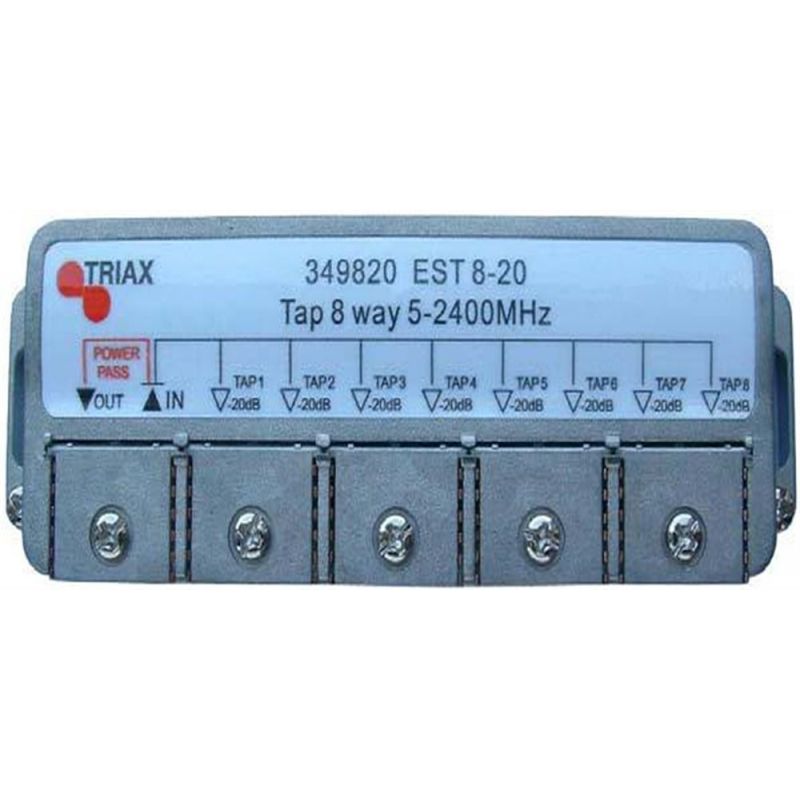

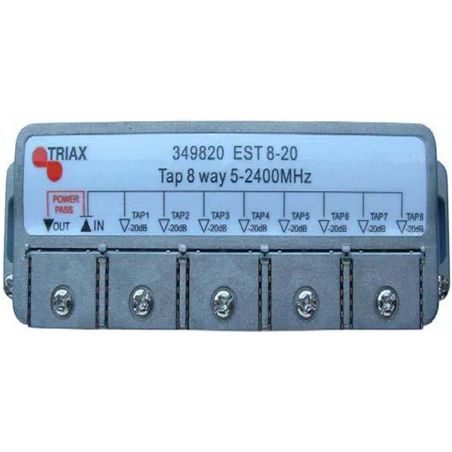

Derivator 8 outputs (Easy clema connection) 20db EST 8-20 Triax
Derivator 8 outputs (Easy clema connection) 20db EST 8-20
€8.90
€18.94
Save 53%
Tax included
Reference
triax-349820
Brand
Triax
Derivator 8 outputs (Easy clema connection) 20db EST 8-20 Triax
€8.90
€18.94
Save 53%
Derivator 8 outputs (Easy clema connection) 20db EST 8-20
Specifications
| Model | EST 8-20 | |
| Code | 349820 | |
| Frequency range | MHz | 5 - 2400 |
| No. of outputs | pcs | 8 |
| Lost in step (typical) 5 - 40 MHz dB | dB | 02 |
| 40 - 1000 MHz | dB | 2.5 |
| 1000 - 1750 MHz | dB | 3.5 |
| 1750 - 2150 MHz | dB | 42 |
| 2150 - 2400 MHz | dB | 05 |
| Lost in shunt 5 - 40 MHz dB | dB | 20.0 (± 1.5) |
| 40 - 1000 MHz | dB | 20.0 (± 1.5) |
| 1000 - 1750 MHz | dB | 20.0 (± 2.0) |
| 1750 - 2150 MHz | dB | 20.0 (± 2.5) |
| 2150 - 2400 MHz | dB | 20.0 (± 3.0) |
| Decoupling | dB | 22 |
| Missed return (Input / output) | dB | 14 |
| Lost of return (derivation) | dB | 14 |
| Protection of the shield | dB | ≥ 110.0 |
| Current passage | Input / Output | |
| Impedance | Ohm | 75 |
| Measurements (h x d x w) | mm | 124 x 40 x 20 |
