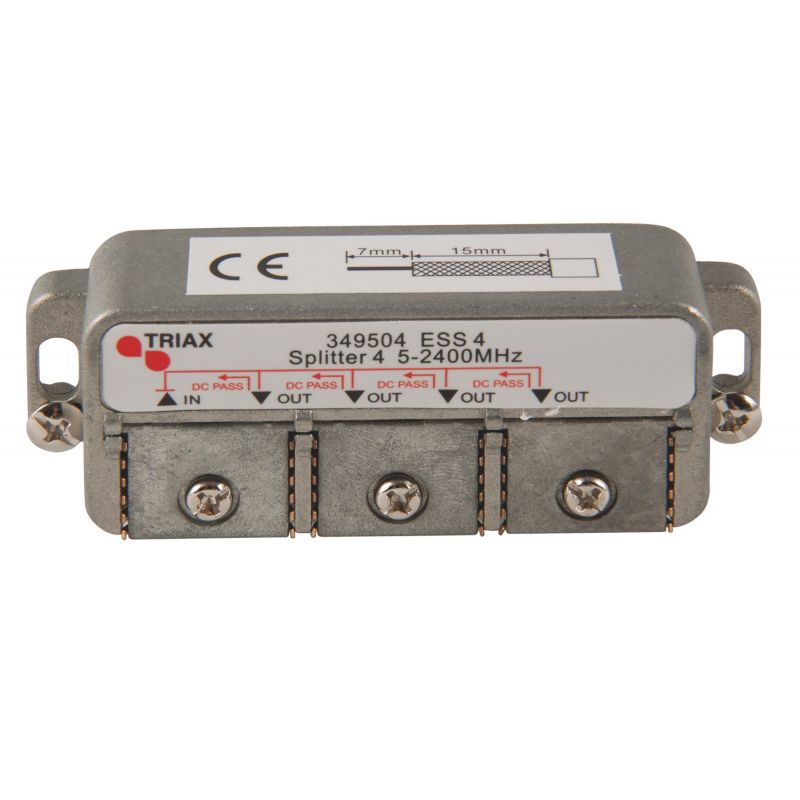

Distributor 4 outputs (easy clema connection) ESS 4 triax
Four-way distributor with quick-connect terminal connectors. Casing made of zinc. Lightweight and compact Low insertion loss.
€14.74
Tax included
Reference
triax-349504
Brand
Triax
Distributor 4 outputs (easy clema connection) ESS 4 triax
€14.74
Four-way distributor with quick-connect terminal connectors.
Features
- Casing made of zinc.
- Lightweight and compact
- Clone connectors.
- Low insertion loss.
- Current passage in all output ports to the input port: max. 1A, 30V.
Specifications
| BLINDAJE | |
|---|---|
| Blindaje efectivo VHF/UHF | > 85.0 dB |
| RANGO DE FRECUENCIA | |
| Rango Frecuencia | 5...2400 MHz |
| PÉRDIDA | |
| [Pérdida inserción (entrada-salida)] 1000-1750 Mhz | < 10.5 dB |
| [Pérdida inserción (entrada-salida)] 1750-2150 Mhz | < 11.5 dB |
| [Pérdida inserción (entrada-salida)] 2150-2400 Mhz | < 12.0 dB |
| [Pérdida inserción (entrada-salida)] 40-1000 Mhz | < 9.0 dB |
| [Pérdida inserción (entrada-salida)] 5-40 Mhz | < 8.5 dB |
| AISLAMIENTO | |
| [Aislamiento (salida-derivación)] 1000-1750 MHz | > 20.0 dB |
| [Aislamiento (derivación-derivación)] 1750-2150 MHz | > 20.0 dB |
| [Aislamiento (derivación-derivación)] 2150-2400 MHz | > 20.0 dB |
| [Aislamiento (derivación-derivación)] 40-1000 MHz | > 21.0 dB |
| [Aislamiento (derivación-derivación)] 5-40 MHz | > 20.0 dB |
| PÉRDIDA DE RETORNO | |
| [Pérdida de retorno (entrada-salida)] 1000-1750 MHz | > 10.0 dB |
| [Pérdida de retorno (entrada-salida)] 1750-2150 MHz | > 10.0 dB |
| [Pérdida de retorno (entrada-salida)] 2150-2400 MHz | > 10.0 dB |
| [Pérdida de retorno (entrada-salida)] 40-1000 MHz | > 11.0 dB |
| [Pérdida de retorno (entrada-salida)] 5-40 MHz | > 10.0 dB |
| DATOS ELÉCTRICOS | |
| Impedancia | 75 Ω |
| OPERACIONAL | |
| Paso DC | Sí (30VDC / 1A directed - OUT to IN) |
| CONECTORES | |
| Tipo de Conector | Saddle & Clamp (S&C) |
| Número de salidas | 4 |
| MECÁNICO | |
| Profundidad | 19 mm |
| Peso Total | 0,092 kg |
| Peso Neto | 0,092 kg |
| Anchura | 82 mm |
| Altura | 31 mm |
