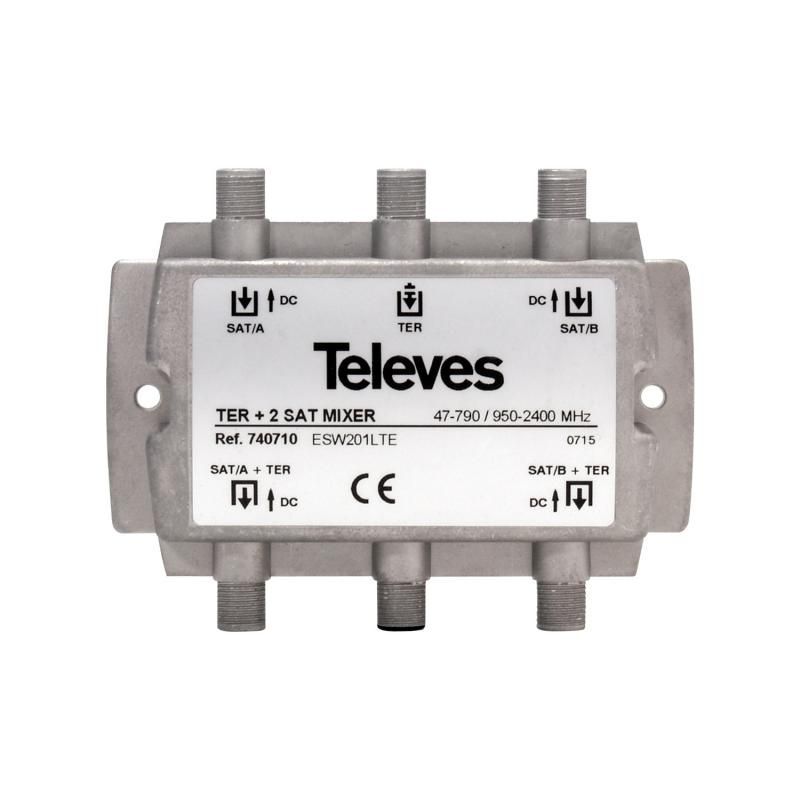

Mixer-Spliter 2FI-2D ICT Televes 740710
Are housed in a die-cast chassis with “F” connectors; Allow the passage of current from the SAT IF output to the input; The 7452 reference may also be used as a filter for GSM telephony, thanks to its high rejection TV-IF; Mast mounting for ref. 7452 using the outdoor case ref. 4163; “F” Connection.
€39.65
Tax included
Reference
televes-740710
Brand
Televes
![Combiner/splitter MATV+2IF 3 In /2 out 5..862-950..2400MHz[dc] Televes](https://dm.orbitadigital.es/9299-medium_default/combiner-splitter-matv2if-3-in-2-out-5862-9502400mhz-dc-televes.jpg "Combiner/splitter MATV+2IF 3 In /2 out 5..862-950..2400MHz[dc] Televes")
Mixer-Spliter 2FI-2D ICT Televes 740710
€39.65
- Are housed in a die-cast chassis with “F” connectors.
- Allow the passage of current from the SAT IF output to the input.
- The 7452 reference may also be used as a filter for GSM telephony, thanks to its high rejection TV-IF.
- Mast mounting for ref. 7452 using the outdoor case ref. 4163.
- “F” Connection.
Specs
| Reference | 7407 | ||
| Mixed bands | MATV | 2 IF | |
| Frequency range | MHz | 5-862 | 950-2150 |
| Insertion losses | dB | 4 | 2 |
| Isolation between inputs | dB | >20 | |
| DC pass (max.) | mA | - | 300 |
| Dimensions (Wid x Hei x Dep) | mm | 98 x 75 x 27 | |
| Protection Index | IP | 20 | |
