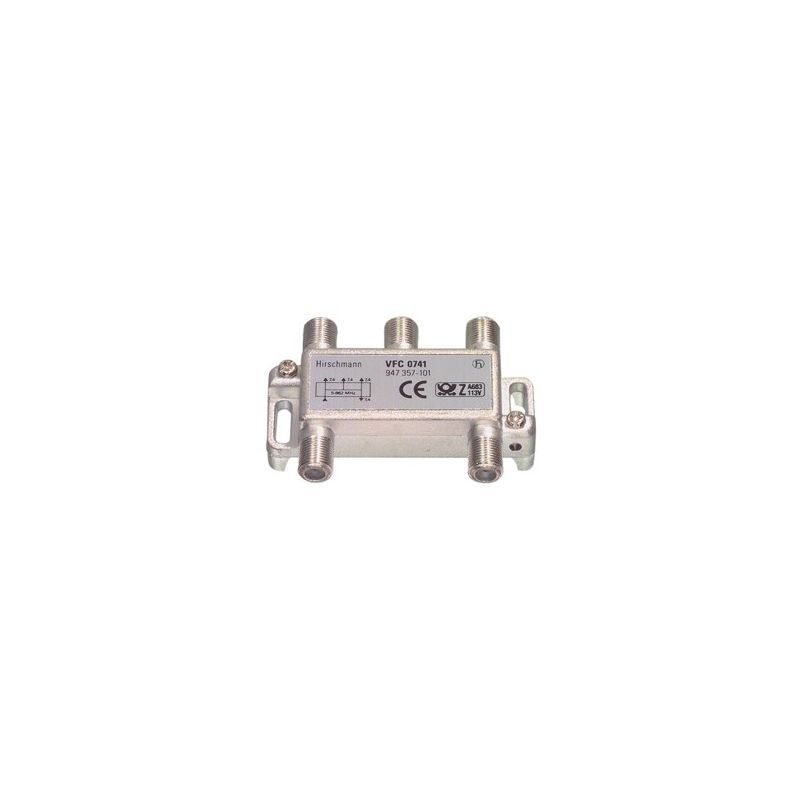

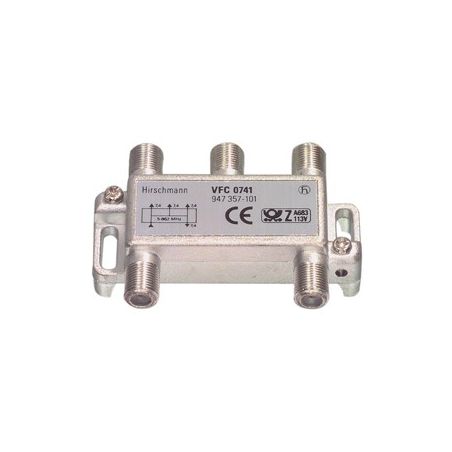

Distributor PAU series VFC (with F) 2 inputs/3 outputs Triax
Distributor PAU series VFC (with F) 2 inputs / 3 outputs
€7.08
Tax included
Reference
triax-342433
Brand
Triax
Distributor PAU series VFC (with F) 2 inputs/3 outputs Triax
€7.08
Distribuidor PAU serie VFC (con. F) 2 entradas/3 salidas
Especificaciones
| Model | PAU0631SF | |
| Code | 947744001 | |
| Frequency range | MHz | 5 - 2400 |
| No. of inputs | 2 | |
| No. of outputs | 3 | |
| Lost in distribution 5 - 40 MHz | dB | < 7.3 |
| 40 - 1000 MHz | dB | < 7.5 |
| 1000 - 1750 MHz | dB | < 8.8 |
| 1750 - 2150 MHz | dB | < 10.5 |
| 2150 - 2400 MHz | dB | < 11.0 |
| Decoupling output / output | dB | > 21.0 |
| Losses of return (input) | dB | > 13.0 |
| Lost of return (output) | dB | > 12.0 |
| Protection of the shield | dB | ≥ 110.0 |
| Current passage | All | |
| Impedance | Ohm | 75 |
| Measurements (h x d x w) | mm | 75x55x20 |
