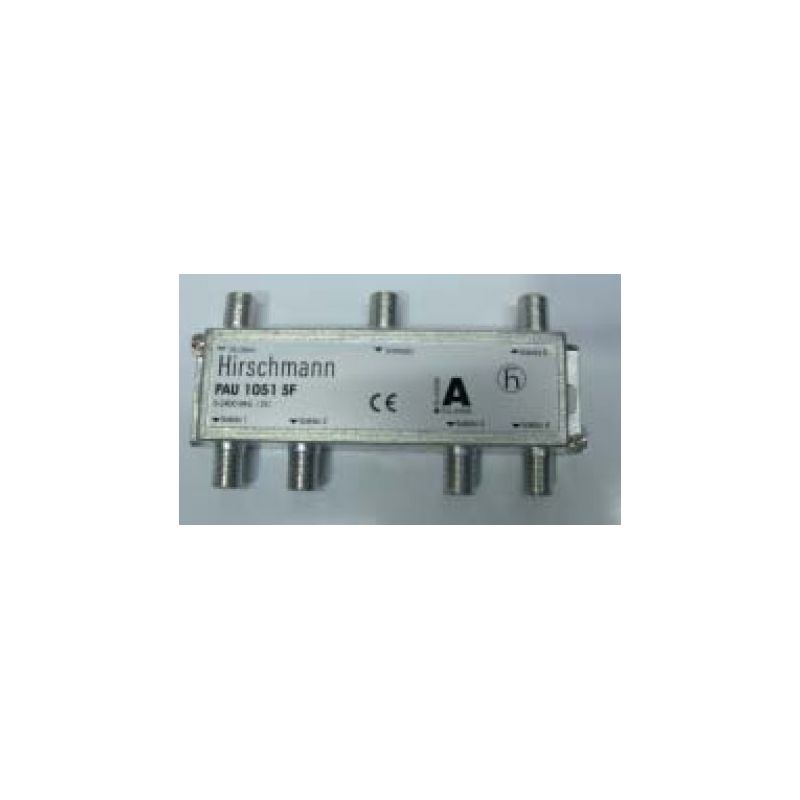

Triax SCS PAU 1051 PAU Distributor with 2 inputs and 5 outputs
SCS PAU 1051 - 5 way splitter with 2 inputs. Second input terminated by 75 Ohm. TRIAX splitter ideal for SAT-IF and MATV distribution networks. Frequency range 5-2400 MHz. DC pass via diodes from all outputs. High shielding against ingress noise like radiated by LTE mobile.
€11.80
Tax included
Reference
triax-342170
Brand
Triax
SCS PAU 1051 - 5 way splitter with 2 inputs.
Second input terminated by 75 Ohm.
TRIAX splitter ideal for SAT-IF and MATV distribution networks.
Features
- Frequency range 5-2400 MHz
- DC pass via diodes from all outputs
- High shielding against ingress noise like radiated by LTE mobile
- High quality die-cast housing tin (Sn) coated with solder shield bottom plate
- Grounding clamp terminals
- Formerly triax-342435
Specifications
| SHIELDING | |
|---|---|
| Shielding effeciency VHF/UHF | >85 dB |
| CHARACTERISTICS | |
| Type | COAX splitter |
| FREQUENCY | |
| Frequency range | 5...2400 MHz |
| LOSS | |
| Insertion loss (in-out) 5-40 Mhz | 11.5 dB |
| Insertion loss (in-out) 40-1000 Mhz | 12.5 dB |
| Insertion loss (in-out) 1000-2150 MHz | 15.5 dB |
| Insertion loss (in-out) 2150-2400 Mhz | 16.5 dB |
| ISOLATION | |
| Isolation (tap-tap) 5-40 MHz | 21 dB |
| Isolation (tap-tap) 40-1000 MHz | 22 dB |
| Isolation (tap-tap) 1000-2150 MHz | 21 dB |
| Isolation (tap-tap) 2150-2400 MHz | 21 dB |
| RETURN LOSS | |
| Return loss (in-out) 5-40 MHz | 9.0 dB |
| Return loss (in-out) 40-1000 MHz | 12.0 dB |
| Return loss (in-out) 1000-2150 MHz | 11.0 dB |
| Return loss (in-out) 2150-2400 MHz | 11.0 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Application | SAT, MATV 2.4Ghz +DC |
| Screening Efficiency | EN50083-2 (Class A) |
| DC Passthrough | Yes (max. 1A /30V) |
| Certification | EN 50581:2012 (RoHS II) |
| Environment | Indoor |
| Temperature - operating | -30…+60 °C |
| CONNECTORS | |
| Number of inputs | 2 |
| Number of outputs | 5 |
| Connector Type | F-female (IEC 61 169-24) |
| MECHANICAL | |
| FormulaTest | 17.5 mm x 58.3 mm x 118 mm |
| Main material | Zinc diecast/Sn plated |
| Packaging | Polybag |
| Packing QTY | 1 |
| Product Height | 18 mm |
| Product Width | 58 mm |
| Product Depth | 118 mm |
| Packaging Height | 0,120 m |
| Packaging Width | 0,060 m |
| Packaging Depth | 0,020 m |
| Net Weight | 0,132 kg |
| Tara Weight | 0,001 kg |
| Total Weight | 0,133 kg |
